Resi DALI

Runtime DALI svetelné riadenie pre Modbus-DALI bránu RESI-DALI-SIO a RESI-DALI-ETH. Stmievanie pre až 64 ovládacích zariadení (gears), 16 broadcast skupín a per-gear DALI 1.0 stav, diagnostika porúch lampy/napájania a min/max úrovne cez Modbus RTU.

ResiModbus RTU80 zariadeníRevízia 1.3 Posledná aktualizácia: 15. novembra 2026

Import do aplikácie TapHomeHardvér › Modbus › Pridať zo šablóny

Stiahnuť šablónu

Na tejto stránke

Vyžaduje externú bránu
Resi RESI-DALI-PS — stránka produktu

Návod na integráciu

Šablóna Resi DALI je runtime prevádzkový pendant nástroja Resi Dali - Konfigurácia na uvedenie do prevádzky. Pripája TapHome k plne adresovanej DALI svetelnej zbernici cez bránu RESI-DALI-SIO alebo RESI-DALI-ETH (Modbus-DALI) a sprístupňuje denné ovládanie pre až 64 individuálne adresovaných DALI ovládacích zariadení (gears) (krátke adresy 0–63) a 16 DALI broadcast skupín (0–15), plus per-gear DALI stav, diagnostika porúch ovládacieho zariadenia a porúch lampy.

Komunikácia s bránou používa Modbus RTU pri 9600 baud 8N1. Zápisy jasu idú do H:510 LAMP LEVEL (per-gear) a H:520 GROUP LEVEL (per-skupina); per-gear konfiguračné príkazy a dotazy sú tunelované cez H:511 LAMP COMMAND / H:512 LAMP COMMAND + REPEAT, pričom register brány H:550 DALI STATUS sa pollie kvôli pripravenosti odpovede.

Táto šablóna predpokladá, že DALI krátke adresy sú už naprogramované na zbernici. Ak gear-y ešte nemajú adresu, použite najprv šablónu Resi Dali - Konfigurácia (alebo bezplatný nástroj výrobcu MODBUSConfigurator / DCA) na spustenie sprievodcu náhodným adresovaním DALI 2.0 — pozri Vzťah ku konfiguračnej šablóne nižšie.

Hardvérové pripojenie

RESI-DALI-SIO (RS-485) a RESI-DALI-ETH (Ethernet) sú master brány na DIN lištu, ktoré sú medzi sériovým/Ethernet hostom a DALI svetelnou zbernicou. SIO je v púzdre CEM17 (17,5 × 90 × 56,4 mm) a ETH v širšom púzdre CEM35 (35,8 × 90 × 56,4 mm), aby sa zmestil RJ45 konektor. Žiadna z brán nenapája DALI zbernicu sama — sprievodný DALI bus napájací zdroj (RESI-DALI-PS alebo akýkoľvek kompatibilný 200 mA DALI PSU) je povinný.

Zapojenie RESI-DALI-SIO (RS-485)

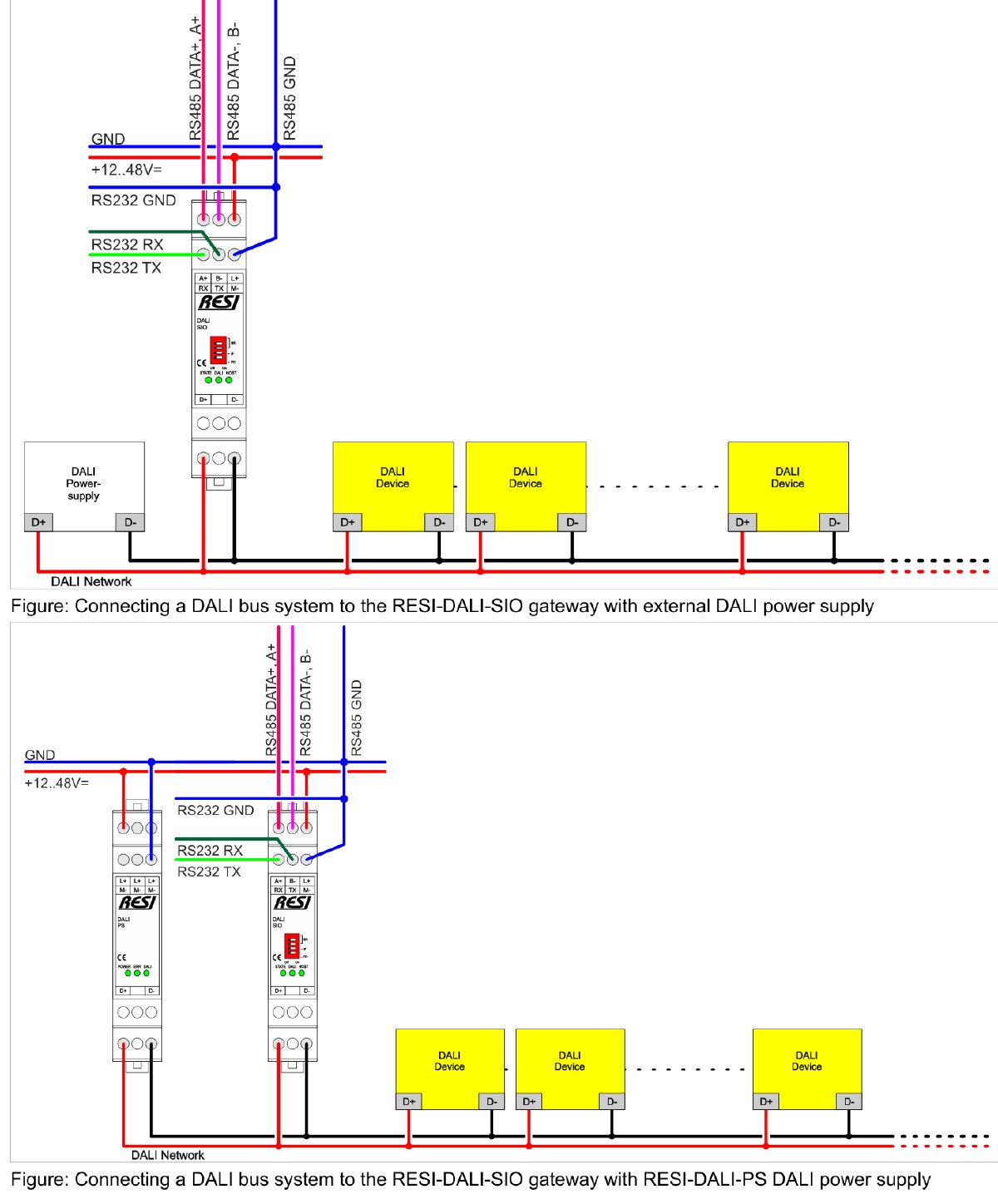

Schéma zapojenia RESI-DALI-SIO — externý DALI PSU (hore) a kombinácia s RESI-DALI-PS (dole)

Svorky na ľavej strane RESI-DALI-SIO (zhora → nadol): GND, +12..48V=, RS485 DATA+ (A+), RS485 DATA- (B-), RS485 GND, RS232 TX, RS232 RX, RS232 GND. Svorky DALI zbernice na opačnej strane sú D+ / N/C / D- (3-pinový USLIM blok, prostredný N/C pin zostáva nezapojený).

Pre TapHome inštaláciu použite RS-485 rozhranie:

RS485 DATA+ (A+) → A+/D+ na TapHome RS-485 zbernici
RS485 DATA- (B-) → B-/D- na TapHome RS-485 zbernici
RS485 GND → GND na TapHome napájacom zdroji (odporúčané pre stabilnú komunikáciu)
+12..48V= / GND → 12–48 V DC primárne napájanie

Zapojenie RESI-DALI-ETH (Ethernet)

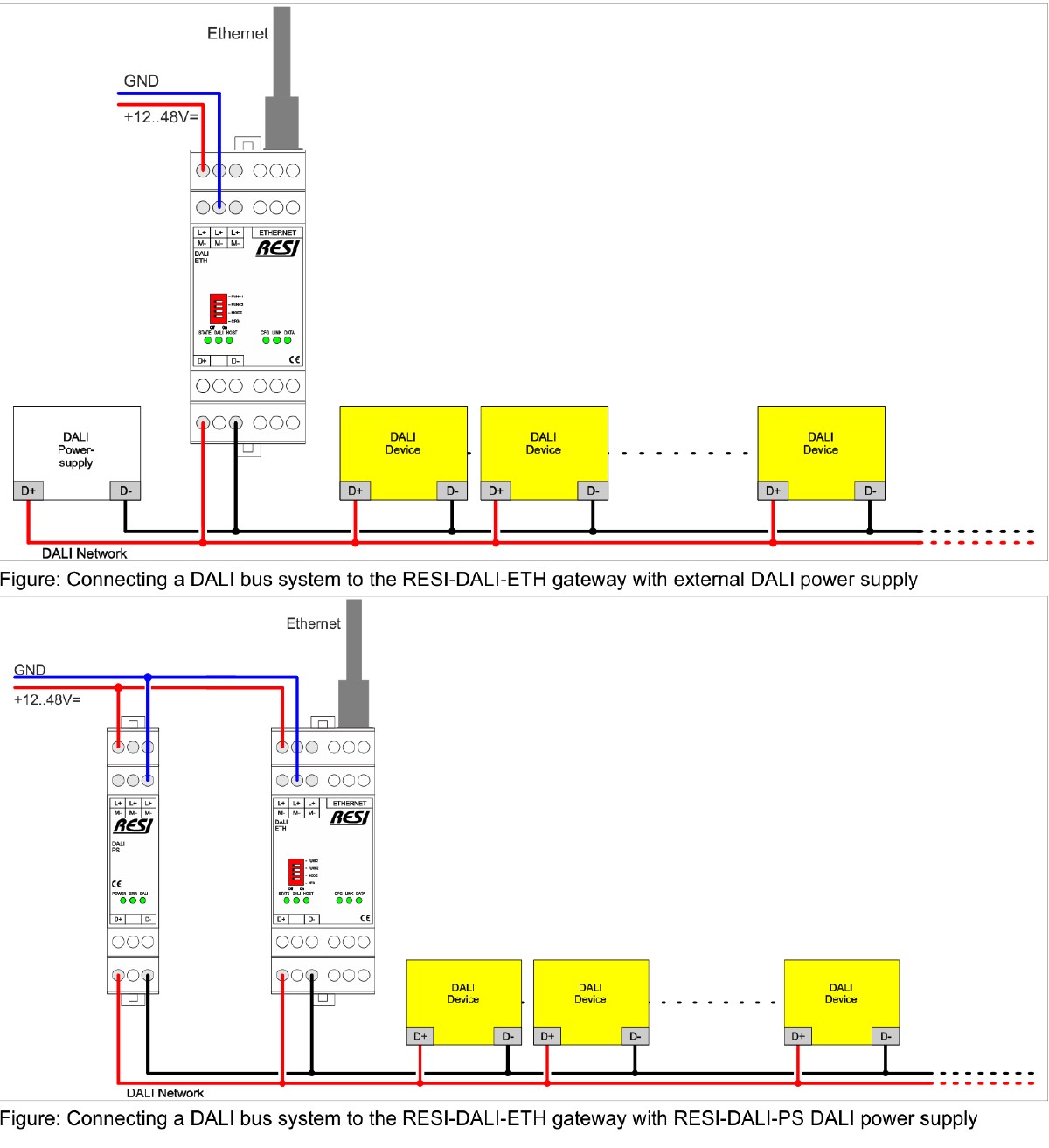

Schéma zapojenia RESI-DALI-ETH — externý DALI PSU (hore) a kombinácia s RESI-DALI-PS (dole)

Ethernetová varianta má rovnaké svorky DALI zbernice (D+ / N/C / D-) a vstupy primárneho napájania (GND, +12..48V=), plus jediný RJ45 konektor pre 10/100 Mbit Ethernet. Továrenské IP nastavenia sú 192.168.0.191 / 255.255.255.0 / 192.168.0.1 s Modbus Unit ID 255; vstavané webové UI používa prihlasovacie údaje RESI / RESI.

Keďže ide o Modbus RTU šablónu, TapHome nekomunikuje s RESI-DALI-ETH cez natívny Modbus/TCP. Použite ho radšej v transparentnom režime RTU-over-Ethernet, alebo umiestnite SIO za sériovo-IP most (Moxa NPort, USR-TCP232) — pozri Konfigurácia → Nastavenie RTU-over-TCP nižšie.

DALI bus napájací zdroj (RESI-DALI-PS)

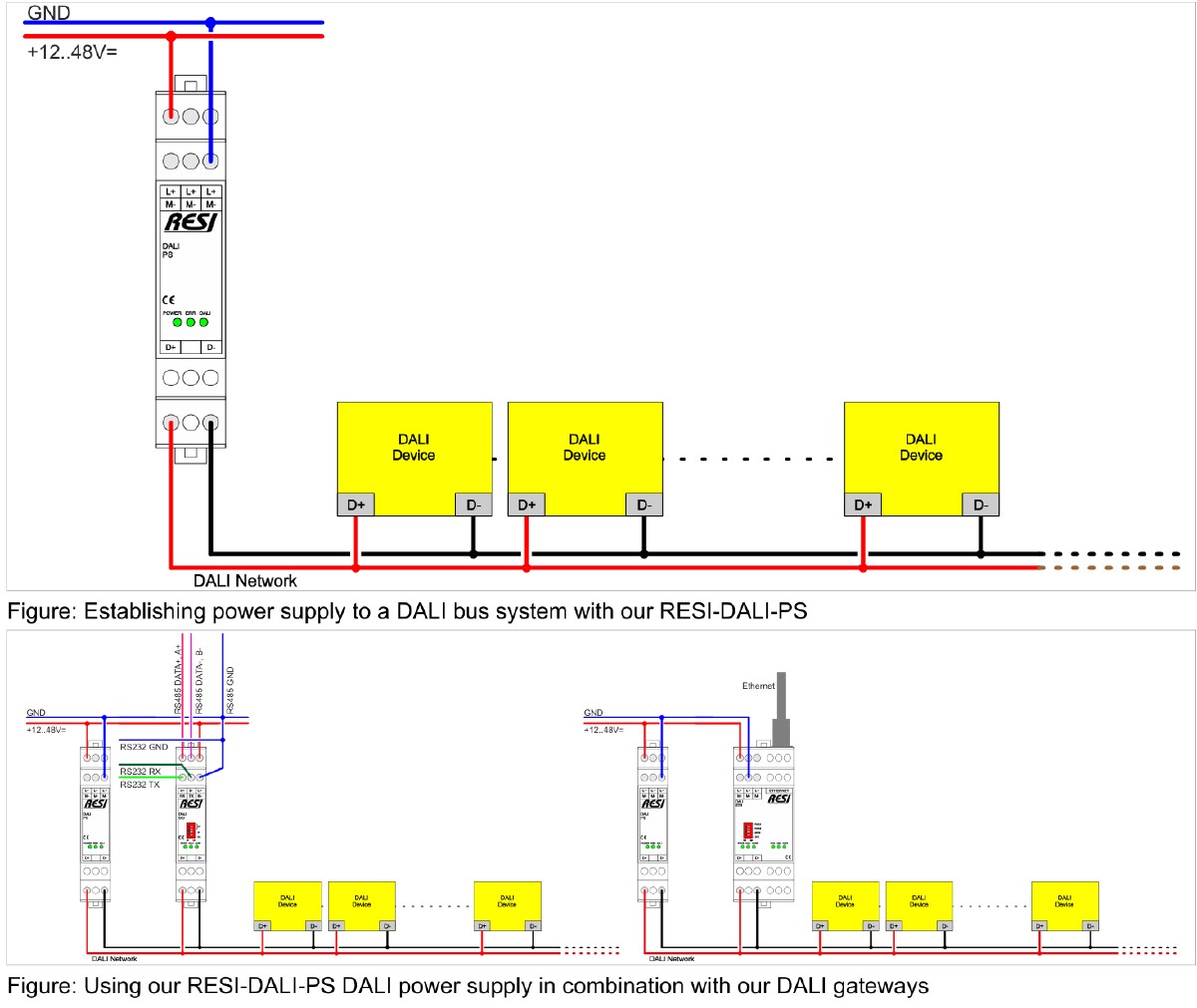

RESI-DALI-PS — napájanie DALI zbernice samostatne (hore) a kombinácia s SIO/ETH bránou (dole)

RESI-DALI-PS poskytuje až 200 mA na DALI zbernici (skratový prúd ~225 mA, napätie zbernice typicky 14–18 V) a podporuje až 64 DALI 1.0 predradníkov alebo DALI 2.0 ovládacích zariadení na jednej linke. Primárna strana akceptuje rovnaké 12–48 V DC napájanie ako jednotka SIO/ETH. Brána a PSU sa pripájajú na rovnaký pár D+ / D- — PSU napája zbernicu, pričom brána číta a zapisuje DALI rámce.

Tri LED diódy na PSU pomáhajú pri diagnostike porúch: POWER (primárne 12–48 V OK, počas normálnej prevádzky stále svieti), DALI (krátko bliká počas DALI komunikácie), ERR (trvalo svieti pri poruche PSU, DALI skrate alebo preťažení zbernice — počas normálnej prevádzky musí byť zhasnutá).

Topológia DALI zbernice

DALI linka má niekoľko tvrdých obmedzení, ktoré priamo ovplyvňujú stabilitu prevádzky:

Prierez vodiča	Max dĺžka DALI kábla
1,5 mm²	300 m
1,0 mm²	238 m
0,75 mm²	174 m
0,5 mm²	116 m

Limit vychádza z maximálne povoleného úbytku napätia 2 V na DALI kábli. Ďalšie pravidlá:

Maximálne 64 DALI 1.0 predradníkov a až 64 DALI 2.0 ovládacích zariadení na zbernici (oddelené priestory krátkych adries).
Iba stromová topológia — žiadne kruhy, žiadne slučky.
Skutočný počet gear-ov závisí aj od menovitého prúdu PSU (typicky 200 mA na RESI-DALI-PS; rátajte ~2 mA na gear plus rezervu).

RESI-DALI-PS (alebo ekvivalentný DALI PSU) je povinný. Bez neho brána nemôže napájať zbernicu a každé per-gear čítanie skončí timeoutom “Gear not responding!”. Ak sa na dlhú linku pridá druhý PSU, vložte DALI tlmivku alebo rozdeľte zbernicu na galvanicky oddelené segmenty.

Konfigurácia

Aktivácia Modbus komunikácie

Sériové parametre hosta na RESI-DALI-SIO sa volia 4-polohovým DIP prepínačom na module. TapHome šablóna je fixne nastavená na 9600 baud 8N1, takže DIP prepínače musia zodpovedať.

DIP1	DIP2	Baud rate
OFF	OFF	9600 bd (vyžadované TapHome)
ON	OFF	19200 bd
OFF	ON	38400 bd
ON	ON	Použije baud rate z FLASH (továrenský default 57600 bd)

DIP4	Zdroj Modbus Unit ID
OFF	FLASH register `H:65221` je akceptovaný — vyžadované, ak bola počas uvedenia do prevádzky naprogramovaná neštandardná Slave ID
ON	Hardvérový fallback — Unit ID je vynútene `255`, FLASH hodnota je ignorovaná

DIP3 je pre produkt vyhradený rezervný bit; nechajte ho v továrenskej polohe. Parita je fixná na None a stop bit na 1 (formát rámca 8N1) pre kombinácie DIP1/DIP2 baud rate vybrané vyššie.

RS-485 zakončenie: ukončte zbernicu odporom 120 Ω na oboch koncoch. TapHome Core poskytuje jedno zakončenie na svojich BUS svorkách; ak je RESI brána posledným zariadením na linke, pridajte diskrétny 120 Ω rezistor medzi A+ / B- na jej RS-485 svorkách.

Slave ID

Továrensky predvolená Modbus Unit ID je 255 (FLASH register H:65221 číta 0xFFFF, čo brána klampuje na 255). Šablóna sprístupňuje servisný atribút na úrovni modulu Slave ID, ktorý spätne číta tento register, takže nakonfigurovanú adresu možno overiť po importe.

Zmena Slave ID je záležitosťou uvedenia do prevádzky riešená sesterskou šablónou Resi Dali - Konfigurácia — táto runtime šablóna zámerne nezapisuje do H:65221 ani nespúšťa softvérový reset, takže môže ostať aktívna v projekte bez rizika náhodnej rekonfigurácie brány.

Nastavenie RTU-over-TCP

Keďže šablóna používa Modbus RTU pripojenie, ponúka sa aj importný parameter IpAddress pre inštalácie, kde TapHome dosiahne bránu cez sériovo-IP most (Moxa NPort, USR-TCP232) alebo cez RESI-DALI-ETH v transparentnom režime RTU-over-Ethernet. V tom prípade nasmerujte IpAddress na IP mosta / ETH jednotky a všetky ostatné nastavenia ponechajte rovnaké ako pri RS-485 variante. Pre čistý Modbus/TCP by bola prirodzenejšia TCP-based šablóna — táto Modbus RTU šablóna konkrétne očakáva rámcovanú RTU komunikáciu.

Iba jeden Modbus master naraz. Ani DALI ani Modbus RTU nearbitrujú medzi súbežnými master-mi. Ak PLC, BMS alebo PC nástroj (napríklad MODBUSConfigurator) tiež pollie bránu, dotazy gear-ov budú kolidovať a TapHome bude hlásiť sporadické chyby “Gear not responding!”.

Vzťah ku konfiguračnej šablóne

Tá istá definícia Dali.xml sa s RESI bránou dodáva ako dve komplementárne TapHome šablóny, ktoré pracujú na rôznych fázach životného cyklu rovnakého hardvéru:

Šablóna	Fáza	Čo robí	Kedy použiť
Resi Dali - Konfigurácia (`resi-dali-daliconfig`)	Jednorazové uvedenie do prevádzky	Sprievodca DALI 2.0 náhodným adresovaním, per-adresa probe device-type, broadcast ON/OFF testy zdravia, Resetovať krátke adresy / Delete short address / Change short address, Set Slave ID, Reset Gateway	Nová inštalácia: priraďte krátke adresy 0–63 ovládacím zariadeniam, overte ktoré adresy sú obsadené
Resi DALI (`resi-dali-dali`, táto šablóna)	Denné runtime ovládanie	Per-gear stmievanie (64 gear-ov), skupinové stmievanie (16 skupín), per-gear DALI 1.0 diagnostika, správa členstva v skupinách	Po uvedení do prevádzky: koncové ovládanie osvetlenia

Typický priebeh projektu:

Zapojte a napájajte DALI zbernicu (RESI-DALI-PS) a bránu.
Importujte šablónu Resi Dali - Konfigurácia, spustite akciu modulu Resetovať krátke adresy (Confirm = Yes), potom na sprievodcovi Find New Devices vyberte Štart — sprievodca sám prejde stavmi Skenovať krátku adresu → Set SEARCHADDR → Kontrola → PROGRAM SHORT ADDRESS, kým sa nezastaví na Dokončiť; potom reláciu ukončite cez TERMINATE. Overte cez Gear 0..63 a Turn On / Off All Lamps.
Odstráňte modul Resi Dali - Konfigurácia z projektu.
Importujte šablónu Resi DALI (túto) na runtime ovládanie. Namapujte zariadenia Gear N a Group N na TapHome scény, časovače a pravidlá.

Obe šablóny môžu aj dočasne koexistovať — napr. pri pridávaní nového gear-u do živej inštalácie — ale len jedna by mala posielať Modbus komunikáciu naraz. Runtime šablóna zámerne vynecháva akcie rekonfigurácie brány (Reset Gateway, Set Slave ID, broadcast ALL LEVEL), aby mohla zostať v projekte bez rizika prepísania nastavení uvedenia do prevádzky.

Bezplatný DCA nástroj výrobcu MODBUSConfigurator (Windows, dostupný zo stránky RESI) možno tiež použiť na uvedenie do prevádzky namiesto TapHome šablóny Resi Dali - Konfigurácia. Runtime šablóna Resi DALI funguje rovnako bez ohľadu na to, ktorý nástroj bol použitý na priradenie krátkych adries.

Schopnosti zariadenia

Šablóna sprístupňuje 80 DALI zariadení v TapHome, organizovaných v dvoch paralelných skupinách: 64 stmievačov Gear (jeden na každú DALI krátku adresu) a 16 stmievačov Group (jeden na každú DALI skupinu). Jeden servisný atribút na úrovni modulu dopĺňa obraz.

Per-gear stmievanie — Gear 0 … Gear 63

Každé zo 64 servisných zariadení Gear 0, Gear 1, … Gear 63 je TapHome stmievač, ktorý cieli na jediné DALI ovládacie zariadenie pri zodpovedajúcej krátkej adrese. Zápisy jasu idú do H:510 LAMP LEVEL (TapHome 0–100 % je škálované lineárne do rozsahu DALI arc power, ohraničeného vlastnou MIN LEVEL a MAX LEVEL gear-u); skutočná úroveň sa spätne číta z H:511 cez DALI príkaz QUERY ACTUAL LEVEL (0xA0) a preškáluje sa späť do 0–100 %.

Keď šablóna importuje gear, init skript najprv probuje gear cez QUERY STATUS (0x90); akýkoľvek bajt odpovede dokazuje, že gear je prítomný, a uloží sa ako jeho stav. Odpoveď 0x8000 „bez odpovede" označí gear ako neodpovedajúci (na náhodných 1–60 s) a v TapHome logu vypíše „Gear not responding!". Ak gear odpovie, init skript ďalej prečíta QUERY MIN LEVEL (0xA2) a QUERY MAX LEVEL (0xA1) a uloží výsledky do interného stavu pre periodický readscript.

Každý dotaz je chránený pred zastaranými a poškodenými odpoveďami: pred každým dotazom šablóna vyčíta neprečítanú odpoveď, ktorá zostala v H:511, aby ju nepovažovala za odpoveď na nový dotaz. Odpoveď s úrovňou, ktorá nie je platnou úrovňou (0xFF, 0x20FF kolízia na zbernici, 0x8000 bez odpovede) alebo leží medzi 1 a MIN LEVEL gear-u, sa zamietne a zostane posledná úroveň; zmenená úroveň sa prijme až po druhom rovnakom čítaní. Servisné atribúty úrovní namiesto neplatnej hodnoty zobrazia --.

Každý gear sprístupňuje 12 servisných atribútov, ktoré na požiadanie čítajú DALI 1.0 / 2.0 dotazy:

Servisný atribút	DALI príkaz	Hlási
Short Address	(interné)	Krátka adresa (0–63), na ktorú toto zariadenie cieli — fixovaná v čase importu šablóny
Device Type	`QUERY DEVICE TYPE` (`0x99`)	`DT{n}` (napr. `DT0` fluorescenčný, `DT6` LED, `DT8` farebný / tunable white) alebo `--` keď bez odpovede. Gear s viacerými device typmi odpovie `0xFF` (MASK); šablóna ich potom vypíše cez `QUERY NEXT DEVICE TYPE` (`0xA7`), napr. `DT6, DT8`, alebo zobrazí `MASK`, keď sa nevráti žiadny typ
Physical Min Level	`QUERY PHYSICAL MIN LEVEL` (`0x9A`)	Hardvérom vynútená minimálna úroveň stmievania v %
Max Level	`QUERY MAX LEVEL` (`0xA1`)	Nakonfigurovaná horná hranica použitá pri škálovaní 0–100 % na DALI arc power
Min Level	`QUERY MIN LEVEL` (`0xA2`)	Nakonfigurovaná dolná hranica použitá pri škálovaní 0–100 % na DALI arc power
Power Up Level	`QUERY POWER ON LEVEL` (`0xA3`)	Jas obnovený po opätovnom napájaní DALI zbernice
System Failure Level	`QUERY SYSTEM FAILURE LEVEL` (`0xA4`)	Jas prijatý, keď zbernica stratí komunikáciu na >500 ms
Groups	`QUERY GROUPS 0-7` (`0xC0`) + `QUERY GROUPS 8-15` (`0xC1`)	Čiarkami oddelený zoznam DALI skupín, do ktorých gear patrí (`None` alebo napr. `0,3,7`)
DALI Status	`QUERY STATUS` (`0x90`)	Dekódovaný stavový bajt s jeho surovou hodnotou: `OK`, keď nie je nastavený žiadny bit, inak nastavené príznaky — `gear failure`, `lamp failure`, `lamp on`, `limit error`, `fade running`, `reset state`, `missing short address`, `power cycle` — napr. `lamp on (0x04)`. Porucha prítomná od prvej odpovede gear-u je označená `not raised: … reported since start`
Fade	`QUERY FADE TIME/FADE RATE` (`0xA5`) + `QUERY EXTENDED FADE TIME` (`0xA8`)	`fade time {n} ({t} s), fade rate {n}`; fade time `off`, keď je 0, alebo `extended 0x..`, keď gear namiesto nej používa rozšírený fade time
DALI Version	`QUERY VERSION NUMBER` (`0x97`)	`DALI-1` alebo `DALI-2 {major}.{minor}`, za ktorým nasleduje surová hodnota v zátvorkách
Bus statistics	(interné počítadlá)	Počítadlá od štartu: dotazy, vyčítané zastarané odpovede, bez odpovede, kolízie, zamietnuté úrovne

Periodický readscript na každom gear-i číta aktuálnu arc úroveň (0xA0) a aspoň raz za 60 čítacích cyklov pollie QUERY STATUS (0x90). Bit 0 stavového bajtu vyvolá „Control gear failure!" a bit 1 vyvolá „Lamp failure!" — vystavené ako TapHome warningy/chyby, takže porucha žiarivkovej trubice alebo vypadnutý LED ovládač sa zobrazí v aktivity logu bez manuálneho pollovania. Zmenený bit poruchy sa prevezme až po druhom rovnakom čítaní a stratená odpoveď sa ešte raz zopakuje, kým sa gear nahlási ako „Gear not responding!". Bity porúch, ktoré gear hlási v prvej odpovedi, sa považujú za jeho trvalý stav: zobrazia sa v DALI Status, ale nevyvolajú sa, kým sa bit nevynuluje — neskoršia porucha sa potom vyvolá znova. Porucha napájania sa nevyvoláva ako chyba; stavový bit sa v DALI Status zobrazí ako power cycle.

Akcie konfigurácie per-gear

Päť servisných akcií na každom Gear N zariadení zapisuje DALI konfiguračné príkazy (auto-opakované do 100 ms cez H:512 LAMP COMMAND + REPEAT, ako vyžadujú non-volatile DALI príkazy):

Add to Group (parameter Group ID 0–15) — posiela ADD TO GROUP (0x60+grp), takže gear vstúpi do zvolenej DALI skupiny a bude poslúchať následné broadcast zápisy skupiny.
Remove from Group (parameter Group ID 0–15) — posiela REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings — posiela DALI RESET (0x20); obnoví všetky NVM parametre gear-u (max/min/power-on/system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels — zachytí aktuálnu arc power a uloží ju ako Power On Level aj System Failure Level v poradí: STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D), každý s 10 ms medzerou.
Disable fading (bez parametrov) — nahrá 0 do DALI registra prenosu dát (0xA300 zapísané do H:541) a uloží ho v gear-i ako fade time (0x2E) a extended fade time (0x30), každý so 100 ms medzerou, takže zmeny úrovne sa prejavia bez prechodu. Aktuálne hodnoty zobrazuje atribút Fade.

Skupinové stmievanie — Group 0 … Group 15

Každé zo 16 servisných zariadení Group 0, Group 1, … Group 15 je write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u patriacemu do tej DALI skupiny, používajúc H:520 GROUP LEVEL (TapHome 0–100 % sa násobí 0xFE → DALI arc power 0–254). DALI nepovoľuje bráne spätne čítať úroveň skupiny — zbernica nesie iba broadcast zápis — takže TapHome drží poslednú zapísanú hodnotu ako „aktuálnu" úroveň. Na zariadeniach skupiny nie sú žiadne init ani read skripty.

Každé zariadenie Group N sprístupňuje dve servisné akcie pre hromadnú správu členstva:

Add All Lamps to Group — broadcastuje ADD TO GROUP (0x60+grp) cez H:532 ALL COMMAND + REPEAT. Každý gear na zbernici vstúpi do skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group — broadcastuje REMOVE FROM GROUP (0x70+grp). Každý gear opustí skupinu.

Použite skupinové stmievanie pre „kuchynské svetlá", „obývacie downlighty" alebo akúkoľvek zónu, kde má viacero gear-ov sledovať jediný stmievač. Skupinové zápisy sú oveľa efektívnejšie ako paralelné ovládanie jednotlivých gear-ov — jediná Modbus transakcia dosiahne až 64 gear-ov súčasne.

Diagnostika na úrovni modulu

Modul sprístupňuje jediný servisný atribút:

Slave ID — číta Modbus Unit ID uložené vo FLASH registri H:65221. Aktívne iba keď DIP4 = OFF; pri DIP4 = ON brána vynúti adresu 255 bez ohľadu na FLASH hodnotu. Použite na overenie adresy brány pred pridávaním ďalších zariadení, najmä po kole uvedenia do prevádzky, ktoré zapísalo neštandardnú ID.

Riešenie problémov

„Gear not responding!" na známom adresovanom gear-i

Overte napätie DALI zbernice na gear-i: 11,5–22,5 V (typicky 14–16 V). Nižšie hodnoty zvyčajne indikujú skrat alebo zbernicu, ktorá je príliš dlhá pre prierez kábla (pozri Topológia DALI zbernice).
Skontrolujte LED ERR na RESI-DALI-PS — ak svieti, zbernica je v skrate, preťažená alebo PSU je chybný.
Spustite znova probovanie Gear N v sesterskej šablóne Resi Dali - Konfigurácia — runtime šablóna skúša znova iba po náhodnej pauze až 60 s, konfiguračná šablóna dáva okamžité pass/fail per adresu.
Overte, či gear vôbec má krátku adresu. Ak bol vymenený alebo továrensky resetovaný na zbernici, bude bez adresy a musí byť znova uvedený do prevádzky cez Resi Dali - Konfigurácia.

Skupinové stmievanie nemá efekt

Overte, že aspoň jeden gear je členom skupiny — otvorte Gear N → Groups na každom podozrivom členovi a skontrolujte, či sa ID skupiny objavuje v čiarkami oddelenom zozname.
Ak chýba členstvo, spustite akciu Add to Group na každom gear-i jednotlivo, alebo použite Add All Lamps to Group na zariadení skupiny pre broadcast po celej zbernici.
Pamätajte, že Group N je write-only — slider stmievača v TapHome ukladá poslednú zapísanú hodnotu, ale nereflektuje skutočný stav zbernice. Ak sú gear-y vypnuté, príkaz úrovne skupiny na nich nemá efekt.

Porucha lampy / porucha napájania nie sú hlásené

Otvorte atribút DALI Status gear-u. Ak končí na not raised: … reported since start, porucha bola prítomná už v prvej odpovedi gear-u a považuje sa za jeho trvalý stav — zobrazí sa, ale nevyvolá sa, kým sa bit raz nevynuluje.
Porucha napájania sa ako chyba nevyvoláva vôbec; stavový bit sa v DALI Status zobrazí ako power cycle.
Nová porucha sa objaví až po tom, čo sa stav pollne (aspoň raz za 60 čítacích cyklov) a dvakrát sa prečíta rovnako, takže krátke preblikutie bitu poruchy sa nehlási.

Sporadické Modbus chyby po uvedení do prevádzky

Uistite sa, že žiadny iný Modbus master (MODBUSConfigurator, PLC, BMS) súbežne nepollie bránu. DALI a Modbus nearbitrujú medzi master-mi. Atribút Bus statistics na každom gear-i počíta od štartu vyčítané zastarané odpovede, chýbajúce odpovede, kolízie a zamietnuté úrovne — počty, ktoré stále rastú, ukazujú na súbežnú komunikáciu na bráne alebo na DALI zbernici.
Overte, že RS485 GND je pripojený medzi bránou a spoločnou zemou TapHome napájacieho zdroja — chýbajúca GND je najčastejšia chyba RS-485 na dlhých linkách.
Pre RTU-over-TCP cez sériový most potvrďte, že most beží v rámcovom RTU režime (nie raw TCP socket) a že medzi-znaková medzera na sériovej strane rešpektuje časovanie 9600 baud 8N1.
Ak sa symptómy objavili po zmene Slave ID cez šablónu Resi Dali - Konfigurácia, znova importujte túto runtime šablónu s novým importným parametrom SlaveId — predchádzajúci importovaný modul stále pollie na starej adrese.

Dostupné zariadenia 80

Tieto zariadenia sa po importe zobrazia v TapHome.

Resi DALI Modul

Servisné atribúty

Slave ID

Číta Modbus Unit ID uložené vo FLASH registri H:65221 — aktívne iba keď DIP4=OFF (továrenský default 255). Použite na overenie adresy brány pred pridaním ďalších zariadení.

Gear 0 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 0 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 0

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 1 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 1 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 1

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 2 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 2 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 2

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 3 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 3 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 3

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 4 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 4 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 4

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 5 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 5 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 5

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 6 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 6 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 6

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 7 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 7 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 7

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 8 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 8 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 8

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 9 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 9 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 9

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 10 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 10 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 10

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 11 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 11 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 11

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 12 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 12 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 12

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 13 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 13 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 13

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 14 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 14 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 14

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 15 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 15 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 15

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 16 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 16 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 16

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 17 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 17 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 17

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 18 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 18 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 18

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 19 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 19 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 19

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 20 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 20 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 20

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 21 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 21 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 21

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 22 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 22 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 22

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 23 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 23 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 23

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 24 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 24 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 24

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 25 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 25 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 25

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 26 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 26 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 26

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 27 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 27 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 27

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 28 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 28 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 28

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 29 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 29 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 29

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 30 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 30 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 30

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 31 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 31 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 31

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 32 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 32 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 32

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 33 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 33 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 33

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 34 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 34 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 34

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 35 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 35 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 35

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 36 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 36 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 36

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 37 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 37 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 37

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 38 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 38 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 38

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 39 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 39 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 39

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 40 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 40 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 40

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 41 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 41 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 41

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 42 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 42 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 42

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 43 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 43 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 43

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 44 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 44 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 44

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 45 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 45 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 45

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 46 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 46 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 46

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 47 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 47 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 47

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 48 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 48 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 48

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 49 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 49 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 49

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 50 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 50 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 50

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 51 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 51 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 51

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 52 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 52 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 52

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 53 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 53 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 53

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 54 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 54 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 54

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 55 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 55 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 55

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 56 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 56 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 56

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 57 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 57 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 57

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 58 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 58 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 58

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 59 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 59 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 59

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 60 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 60 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 60

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 61 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 61 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 61

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 62 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 62 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 62

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Gear 63 Stmievač Čítanie aj zápis

DALI ovládacie zariadenie pri krátkej adrese 63 — TapHome stmievač namapovaný na DALI arc power 0–100 % cez H:510 LAMP LEVEL (zápis) a QUERY ACTUAL LEVEL cez H:511 (čítanie), ohraničený vlastnou MIN / MAX LEVEL gear-u.

Servisné atribúty

Krátka adresa	DALI krátka adresa (0–63) cielená týmto zariadením — fixovaná v čase importu šablóny a použitá v hornom byte každého Modbus zápisu.
Device Type	DALI byte device-type vrátený cez QUERY DEVICE TYPE (0x99) — hlási DT0 (fluorescenčný), DT6 (LED ovládač), DT8 (farebný / tunable white) atď., alebo -- keď bez odpovede.
Physical Min Level	Hardvérom vynútená minimálna úroveň stmievania, ktorú gear hlási — čítané z QUERY PHYSICAL MIN LEVEL (0x9A), v percentách.
Max Level	Nakonfigurovaný DALI MAX LEVEL — čítané z QUERY MAX LEVEL (0xA1); použité ako horná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Min Level	Nakonfigurovaný DALI MIN LEVEL — čítané z QUERY MIN LEVEL (0xA2); použité ako dolná hranica pri škálovaní TapHome 0–100 % na DALI arc power.
Power Up Level	Jas obnovený po obnove napájania DALI zbernice — čítané z QUERY POWER ON LEVEL (0xA3).
System Failure Level	Jas prijatý, keď DALI zbernica stratí komunikáciu na viac ako 500 ms — čítané z QUERY SYSTEM FAILURE LEVEL (0xA4).
Skupiny	Čiarkami oddelený zoznam DALI skupín (0–15), do ktorých gear patrí — dekódovaný z QUERY GROUPS 0-7 (0xC0) a QUERY GROUPS 8-15 (0xC1); zobrazuje None alebo napr. 0,3,7.
Support Lamp Failure	Či lampa / ovládač podporuje detekciu poruchy lampy — Yes / No / --. Kontroluje chybu Lamp failure! v periodickom readscripte.
Support Power Failure	Či lampa / ovládač podporuje detekciu poruchy napájania — Yes / No / --. Kontroluje chybu Power failure! v periodickom readscripte.
DALI Version
Bus statistics

Servisné akcie

Add to Group	Pridá tento gear do DALI skupiny (0–15) cez ADD TO GROUP (0x60+grp) — auto-opakované do 100 ms, ako vyžadujú DALI konfiguračné príkazy.
Remove from Group	Odstráni tento gear z DALI skupiny (0–15) cez REMOVE FROM GROUP (0x70+grp).
Reset to Default Settings	Posiela DALI RESET (0x20) — obnoví každý NVM parameter gear-u (max / min / power-on / system-failure level, členstvo v skupinách, scény) na továrenský default.
Set Startup Levels	Zachytí aktuálnu arc power a uloží ju ako Power On Level a System Failure Level — postupnosť STORE ACTUAL LEVEL IN DTR (0x21) → STORE DTR AS POWER ON LEVEL (0x2C) → STORE DTR AS SYSTEM FAILURE LEVEL (0x2D).
Disable fading

Gear 63

Čítanie (modul)

var x := 0; var rx := 0; var y := 0;
if Status > 0
    Status := Status - 1;
    adderror(3, "Gear not responding!");
    return(0);
end

# checkStatus: ReadLevel resets it while the gear answers; statusPoll: QUERY STATUS at least once per 60 runs
checkStatus := checkStatus - 1;
statusPoll := statusPoll - 1;
if checkStatus < 1 or statusPoll < 1
    # an unread answer left in the gateway would be taken for this query: read it away and count it
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    # a single lost answer happens on DALI: ask once more before declaring the gear missing
    if x = 0x8000
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    end
    if x <= 0xFF
        # a changed failure bit must be read twice the same before it is taken
        if statusSeen = 1 and getbits(x, 0, 2) != getbits(gearStatus, 0, 2)
            y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
            modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
            if y != x
                cntBad := cntBad + 1;
                x := gearStatus;
            end
        end
        if statusSeen = 0
            ignGear := getbit(x, 0);
            ignLamp := getbit(x, 1);
            statusSeen := 1;
        end
        # a bit that clears ends its ignore, so a later failure is raised
        if (getbit(x, 0) = 0, ignGear := 0);
        if (getbit(x, 1) = 0, ignLamp := 0);
        gearStatus := x;
        checkStatus := 60;
        statusPoll := 60;
    else
        if x = 0x8000
            Status := RANDINT(10, 60);
            adderror(3, "Gear not responding!");
            return(0);
        end
    end
end

# messages last one run only, so they are raised from the stored status on every run
if ((getbit(gearStatus, 0) = 1) and (ignGear = 0), adderror(1, "Control gear failure!"));
if ((getbit(gearStatus, 1) = 1) and (ignLamp = 0), adderror(2, "Lamp failure!"));

Inicializácia

var x := 0; var rx := 0;
# QUERY STATUS 0x90: every reply byte proves the gear is present; 0x8000 = no answer, 0x20FF = bus collision
# an unread answer left in the gateway would be taken for this query: read it away and count it
x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
x := modbusr(SH, 511, uint16);
cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
statusSeen := 0;
if x <= 0xFF
    # failure bits a gear reports from its first answer are its permanent state, not an event: shown, not raised
    gearStatus := x;
    ignGear := getbit(x, 0);
    ignLamp := getbit(x, 1);
    statusSeen := 1;
    Status := 0;
else
    Status := RANDINT(1, 60);
end

if Status = 0
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, minLevel := x);

    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x <= 0xFE, maxLevel := x);
end

Čítanie úrovne

var x := 0; var rx := 0; var y := 0;
if Status = 0
    if minLevel = 0
        # an unread answer left in the gateway would be taken for this query: read it away and count it
        x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        x := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
        if (x <= 0xFE, minLevel := x);
    end
    x := modbusr(SH, 511, uint16); if (x != 0x8000, cntStale := cntStale + 1);
    modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    cntQ := cntQ + 1; if (x = 0x8000, cntNone := cntNone + 1); if (x = 0x20FF, cntColl := cntColl + 1);
    if (x != 0x8000 or rx, checkStatus := 60);
    # 0xFF = MASK, 0x20FF = collision, 0x8000 = no answer: keep the last level instead of a phantom value
    if x > 0xFE
        return(Le);
    end
    # an actual level is 0 or between the gear's min and max: anything else is not this gear's answer
    if x > 0 and x < minLevel
        cntBad := cntBad + 1;
        return(Le);
    end
    # a changed level must be read twice the same before it is taken
    if x != lastRaw
        y := modbusr(SH, 511, uint16); if (y != 0x8000, cntStale := cntStale + 1);
        modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA0);
        sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        y := modbusr(SH, 511, uint16);
        cntQ := cntQ + 1; if (y = 0x8000, cntNone := cntNone + 1); if (y = 0x20FF, cntColl := cntColl + 1);
        if y != x
            cntBad := cntBad + 1;
            return(Le);
        end
        lastRaw := x;
    end
    return(if(x = 0, 0, linear(x, minLevel, 0.01, maxLevel, 1)));
else
    return(NaN);
end

Zápis úrovne

var level := 0;
if(Le > 0, level := round(linear(Le, 0.01, minLevel, 1, maxLevel)));
modbusw(SH, 510, uint16, (ShortAddress << 8) + level );

Servisné atribúty

${xml_short_address}

ShortAddress

${xml_device_type}

var x := 0; var y := 0; var rx := 0; var s := ""; var i := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x99);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    x := modbusr(SH, 511, uint16);
    if (x < 0xFF, return("DT" + x));
    if x = 0xFF
        while i < 8
            modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA7);
            sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
            y := modbusr(SH, 511, uint16);
            if y < 0xFE
                s := if(s = "", "DT" + y, s + ", DT" + y);
                i := i + 1;
            else
                i := 8;
            end
        loop
        return(if(s = "", "MASK", s));
    end
end

return("--")

Physical Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x9A);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Max Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA1);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Min Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA2);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

Power Up Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA3);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

System Failure Level

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA4);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if (x <= 0xFE, return(round((x / 0xFE) * 100) + " %"));
end

return("--")

${xml_groups}

var x := 0; var rx := 0;
if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC0);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g1 := modbusr(SH, 511, uint16);
    if (g1 > 0xFF, return("--"));

    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xC1);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var g2 := modbusr(SH, 511, uint16);
    if (g2 > 0xFF, return("--"));

    var ret := "";

    if (getbit(g1, 0), ret := ret + "0");
    if (getbit(g1, 1), if (ret = "", ret := "1", ret := ret + ",1"));
    if (getbit(g1, 2), if (ret = "", ret := "2", ret := ret + ",2"));
    if (getbit(g1, 3), if (ret = "", ret := "3", ret := ret + ",3"));
    if (getbit(g1, 4), if (ret = "", ret := "4", ret := ret + ",4"));
    if (getbit(g1, 5), if (ret = "", ret := "5", ret := ret + ",5"));
    if (getbit(g1, 6), if (ret = "", ret := "6", ret := ret + ",6"));
    if (getbit(g1, 7), if (ret = "", ret := "7", ret := ret + ",7"));
    if (getbit(g2, 0), if (ret = "", ret := "8", ret := ret + ",8"));
    if (getbit(g2, 1), if (ret = "", ret := "9", ret := ret + ",9"));
    if (getbit(g2, 2), if (ret = "", ret := "10", ret := ret + ",10"));
    if (getbit(g2, 3), if (ret = "", ret := "11", ret := ret + ",11"));
    if (getbit(g2, 4), if (ret = "", ret := "12", ret := ret + ",12"));
    if (getbit(g2, 5), if (ret = "", ret := "13", ret := ret + ",13"));
    if (getbit(g2, 6), if (ret = "", ret := "14", ret := ret + ",14"));
    if (getbit(g2, 7), if (ret = "", ret := "15", ret := ret + ",15"));

    if (ret = "", return("None"), return(ret));
else
    return("--");
end

DALI Status

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x90);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var s := "";
        if (getbit(x, 0), s := if(s = "", "gear failure", s + ", gear failure"));
        if (getbit(x, 1), s := if(s = "", "lamp failure", s + ", lamp failure"));
        if (getbit(x, 2), s := if(s = "", "lamp on", s + ", lamp on"));
        if (getbit(x, 3), s := if(s = "", "limit error", s + ", limit error"));
        if (getbit(x, 4), s := if(s = "", "fade running", s + ", fade running"));
        if (getbit(x, 5), s := if(s = "", "reset state", s + ", reset state"));
        if (getbit(x, 6), s := if(s = "", "missing short address", s + ", missing short address"));
        if (getbit(x, 7), s := if(s = "", "power cycle", s + ", power cycle"));
        var ign := if((ignGear = 1) and (ignLamp = 1), "gear and lamp failure", if(ignGear = 1, "gear failure", if(ignLamp = 1, "lamp failure", "")));
        return(if(s = "", "OK", s) + " (0x" + tostring(x, "X2") + ")" + if(ign = "", "", "; not raised: " + ign + " reported since start"));
    end
end

return("--")

Fade

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA5);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        var t := getbits(x, 4, 4);
        var ret := if(t = 0, "off", t + " (" + round(sqrt(power(2, t)) * 5) / 10 + " s)");
        modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0xA8);
    sleep(5); rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
        var e := modbusr(SH, 511, uint16);
        if (t = 0 and e <= 0xFF and e != 0, ret := "extended 0x" + tostring(e, "X2"));
        return("fade time " + ret + ", fade rate " + getbits(x, 0, 4));
    end
end

return("--")

DALI Version

if Status = 0
    modbusr(SH, 511, uint16); modbusw(SH, 511, uint16, (ShortAddress << 8) + 0x97);
    sleep(5); var rx := getbits(modbusr(SH, 550, uint16), 0, 2); if(rx, 0, sleep(50));
    var x := modbusr(SH, 511, uint16);
    if x <= 0xFF
        return(if(x >= 8, "DALI-2 " + getbits(x, 2, 6) + "." + getbits(x, 0, 2), "DALI-1") + " (" + x + ")");
    end
end

return("--")

Bus statistics

return("since start: queries " + cntQ + ", stale answers read away " + cntStale + ", no answer " + cntNone + ", collisions " + cntColl + ", rejected levels " + cntBad)

Servisné akcie

${xml_add_to_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x60 + grp);

${xml_remove_from_group}

Parametre: Group ID (0–15 grp)

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x70 + grp);

${xml_reset_to_default_settings}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x20);

${xml_set_startup_levels}

modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x21);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2c);
sleep(10);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2d);

Disable fading

modbusw(SH, 541, uint16, 0xA300);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x2E);
sleep(100);
modbusw(SH, 512, uint16, (ShortAddress << 8) + 0x30);

Group 0 Stmievač Čítanie aj zápis

DALI broadcast skupina 0 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 0

Zápis úrovne

var GroupAddress := 0;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 0;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 0;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 1 Stmievač Čítanie aj zápis

DALI broadcast skupina 1 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 1

Zápis úrovne

var GroupAddress := 1;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 1;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 1;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 2 Stmievač Čítanie aj zápis

DALI broadcast skupina 2 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 2

Zápis úrovne

var GroupAddress := 2;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 2;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 2;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 3 Stmievač Čítanie aj zápis

DALI broadcast skupina 3 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 3

Zápis úrovne

var GroupAddress := 3;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 3;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 3;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 4 Stmievač Čítanie aj zápis

DALI broadcast skupina 4 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 4

Zápis úrovne

var GroupAddress := 4;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 4;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 4;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 5 Stmievač Čítanie aj zápis

DALI broadcast skupina 5 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 5

Zápis úrovne

var GroupAddress := 5;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 5;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 5;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 6 Stmievač Čítanie aj zápis

DALI broadcast skupina 6 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 6

Zápis úrovne

var GroupAddress := 6;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 6;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 6;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 7 Stmievač Čítanie aj zápis

DALI broadcast skupina 7 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 7

Zápis úrovne

var GroupAddress := 7;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 7;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 7;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 8 Stmievač Čítanie aj zápis

DALI broadcast skupina 8 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 8

Zápis úrovne

var GroupAddress := 8;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 8;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 8;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 9 Stmievač Čítanie aj zápis

DALI broadcast skupina 9 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 9

Zápis úrovne

var GroupAddress := 9;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 9;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 9;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 10 Stmievač Čítanie aj zápis

DALI broadcast skupina 10 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 10

Zápis úrovne

var GroupAddress := 10;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 10;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 10;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 11 Stmievač Čítanie aj zápis

DALI broadcast skupina 11 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 11

Zápis úrovne

var GroupAddress := 11;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 11;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 11;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 12 Stmievač Čítanie aj zápis

DALI broadcast skupina 12 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 12

Zápis úrovne

var GroupAddress := 12;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 12;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 12;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 13 Stmievač Čítanie aj zápis

DALI broadcast skupina 13 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 13

Zápis úrovne

var GroupAddress := 13;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 13;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 13;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 14 Stmievač Čítanie aj zápis

DALI broadcast skupina 14 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 14

Zápis úrovne

var GroupAddress := 14;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 14;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 14;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Group 15 Stmievač Čítanie aj zápis

DALI broadcast skupina 15 (0–15) — write-only TapHome stmievač, ktorý broadcastuje jednu hodnotu arc-power každému gear-u v tejto skupine cez H:520 GROUP LEVEL. Zbernica nezvracia úrovne skupín, takže TapHome drží poslednú zapísanú hodnotu.

UInt16 Jednotka: % numeric

Servisné akcie

Add All Lamps to Group	Broadcastuje ADD TO GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici vstúpi do tejto skupiny bez ohľadu na svoju aktuálnu krátku adresu.
Remove All Lamps from Group	Broadcastuje REMOVE FROM GROUP cez H:532 ALL COMMAND + REPEAT — každý gear na zbernici opustí túto skupinu.

Group 15

Zápis úrovne

var GroupAddress := 15;
modbusw(SH, 520, uint16, (GroupAddress << 8) + (Le * 0xFE));

Servisné akcie

${xml_add_to_group_all_lamps}

var GroupAddress := 15;
modbusw(SH, 532, uint16, 0x60 + GroupAddress)

${xml_remove_from_group_all_lamps}

var GroupAddress := 15;
modbusw(SH, 532, uint16, 0x70 + GroupAddress)

Pripojenie: Modbus RTU • 9600 baud• 8N1 • Slave ID: $[SlaveId]

Možné vylepšenia (23)

H:531 ALL COMMAND (broadcast DALI command) — Single-shot broadcast DALI command (no repeat). Template uses H:532 (ALL COMMAND + REPEAT) for group membership but never exposes plain ALL OFF / ALL ON / ALL ARC POWER as a service action — turn-on/off-all are not present (sibling daliconfig template has them via H:530)
H:530 ALL LEVEL (broadcast arc power) — Sets brightness for every gear in one Modbus write. Convenient 'turn off all lamps' / 'turn on all lamps' shortcut — implemented in the sibling daliconfig template, missing in this operational template
H:521 GROUP COMMAND (per-group DALI command) — Per-group DALI command (single-shot). Could expose group-level OFF / RECALL MIN / RECALL MAX / GO TO SCENE as service actions on each Group device, but template only writes H:520 GROUP LEVEL
H:522 GROUP COMMAND + REPEAT — Per-group DALI configuration command (auto-repeated within 100 ms). Required for STORE DTR AS GROUP SCENE etc. — not exposed as a service action
H:541 DIRECT 16-BIT FRAME — Raw DALI 1.0 frame send. Used by sibling daliconfig template for the DALI 2.0 random-addressing algorithm; not needed for runtime brightness control
I:10020-I:10027 DALI 24-BIT FRAME — DALI 2.0 24-bit frames — required for DT8 colour control (XY, colour temperature, RGBW), DALI 2.0 control gear queries, and DALI-2 input devices (push-buttons, presence detectors). Template exposes only DALI 1.0 brightness layer per gear
I:10030-I:10047 DALI 25-BIT eDALI FRAME — Lunatone-proprietary 25-bit eDALI frames (auto and user redundant-bit variants). Not used by any DALI 1.0 gear
I:10050-I:10067 DALI 28-BIT / 32-BIT FRAME — Extended DALI 2.0 frames (memory bank access, DALI-2 application controllers). Template scope is single-channel arc power per gear
H:500 (DSI VALUE) DSI 8-bit value send — Send a raw 8-bit DSI/DALI value with no addressing (bus-level diagnostics). Bypassed by every TapHome script
C:0 / H:551 DALI Bus Error — 1 = DALI bus fault / short circuit / missing PSU. Useful diagnostic — could be added as a module-level service attribute. Currently bus errors only surface indirectly through 'Gear not responding!' errors emitted by per-gear readscripts
H:100 DALI PRIORITY SLOT — 0..4 → 12-16 ms forward-frame timing. Default 2 (configuration). Bus-tuning parameter; template runs at default
H:6000 DIP SWITCH / SOFTWARE RESET — Read returns the 4 DIP switch values; write 1 reboots the gateway. Sibling daliconfig template exposes Reset Gateway / Set Slave ID; this runtime template intentionally does not (commissioning concern)
H:65222 / H:65224 / H:65225 BAUD_RATE / PARITY / STOP_BITS (FLASH) — FLASH-stored serial parameters. Template hard-codes 9600 8N1 in connection_details, so these are out of scope
I:0 / I:50-I:53 / scenes DALI 1.0 scenes (recall / store / query) — DALI 1.0 standard supports 16 stored scenes per gear/group recallable via GO TO SCENE (0x10..0x1F) and storable via STORE DTR AS SCENE (0x40..0x4F). Template exposes per-gear ADD/REMOVE FROM GROUP and RESET, but no scene recall/store/remove/query actions
H:512 (RECALL MAX/MIN/GOTO LAST/UP/DOWN/STEP) DALI 1.0 high-level commands per gear — RECALL MAX LEVEL (0x05), RECALL MIN LEVEL (0x06), UP (0x01), DOWN (0x02), STEP UP (0x03), STEP DOWN (0x04), GO TO LAST ACTIVE LEVEL (0x0A) — useful as service actions for visual feedback / smooth dimming. Not exposed; brightness goes only through linear scaling
H:512 (STORE DTR AS MAX/MIN/POWER ON/SYSTEM FAILURE LEVEL) Per-gear configuration write commands — STORE DTR AS MAX LEVEL (0x2A), STORE DTR AS MIN LEVEL (0x2B), STORE DTR AS POWER ON LEVEL (0x2C), STORE DTR AS SYSTEM FAILURE LEVEL (0x2D), STORE DTR AS FADE TIME / FADE RATE — template has 'Set Startup Levels' (combines 0x21, 0x2C, 0x2D) but does NOT expose individual writes for max/min/fade-time/fade-rate
H:511 (QUERY FADE TIME / FADE RATE / RANDOM ADDRESS / EXT VERSION) Additional DALI queries — QUERY FADE TIME / FADE RATE (0xA5), QUERY VERSION NUMBER (0x97), QUERY RANDOM ADDRESS H/M/L (0x98/0xC2/0xC3), QUERY CONTENT DTR/DTR1/DTR2 — not exposed in service attributes, only the 10 attributes listed per gear are populated
H:511 (QUERY CONTROL GEAR / RESET STATE / LIMIT ERROR / LAMP POWER ON / MISSING SHORT ADDRESS) DALI gear health / topology queries — QUERY CONTROL GEAR (0x90), QUERY RESET STATE (0x95), QUERY LIMIT ERROR (0x94), QUERY LAMP POWER ON (0x93), QUERY MISSING SHORT ADDRESS (0x96, broadcast) — diagnostic queries. Could be useful as module-level diagnostics; template exposes only QUERY STATUS / LAMP FAILURE / POWER FAILURE / DEVICE TYPE / MIN-MAX-PHYSICAL MIN-POWER UP-SYSTEM FAILURE LEVEL / GROUPS
H:511 (READ MEMORY LOCATION 0xC5) DALI memory bank read — READ MEMORY LOCATION (0xC5) is required to read DALI 2.0 memory banks (Bank 0 device GTIN, FW version, serial number; Bank 1 for emergency lighting). Not used
ASCII protocol commands Parallel ASCII text protocol — RESI gateway also exposes a CR-terminated text protocol (#LARC, #GARC, #AARC, #LGS, #LCMD, #LCMDA, #DALI CMDxx etc.). Template uses Modbus exclusively — ASCII would only matter for diagnostics/terminal access
DT6 fade time / fade rate / DAPC sequence Smooth dimming primitives — DAPC (Direct Arc Power Control) sequence allows fast continuous level updates for smooth dimming. Each gear has stored fade time / fade rate that affect transitions. Template writes raw arc power without configuring fade behaviour
DT8 colour control (XY, colour temperature, RGBW) DALI DT8 tunable white / RGB / RGBW — DT8 colour control gears (tunable white CCT, XY colour, RGBW) require DALI 2.0 24-bit frames sent via H:541 / I:10020. Template exposes plain ModbusDimmer per gear — for DT8 lamps use a dedicated DT8 template
DT1 emergency lighting DALI DT1 self-contained emergency lights — Emergency-luminaire device type with periodic self-tests (function/duration test) and battery state queries. Out of scope — template is general-purpose dimming

Parametre importu

Tieto hodnoty zadáte pri importe XML.

Pýta sa v aplikácii	Predvolené
Slave ID	`255`
IP adresa	`192.168.1.0`

Zdroje

RESI-DALI-SIO/ETH Modbus & ASCII protocol reference
www.resi.cc 2026-04-25
PDF
RESI-xxx-SIO, RESI-xxx-ETH hardware & software manual (DALI chapter)
www.resi.cc 2026-04-25
PDF
RESI-DALI-SIO datasheet (GW-28)
www.resi.cc 2026-04-25
PDF
RESI-DALI-ETH datasheet (GW-29)
www.resi.cc 2026-04-25
PDF
RESI-DALI-PS datasheet (GW-30)
www.resi.cc 2026-04-25
PDF
RESI-DALI-SIO,ETH,PS product page
www.resi.cc 2026-04-25

Dokumenty výrobcov sú © ich príslušných vlastníkov. Poskytujeme ich tak, ako ich zverejnil výrobca, len na informačné účely.

Našli ste problém s touto šablónou zariadenia?

Napíšte nám, čo nefunguje, čo chýba, alebo ako by sa mala šablóna správať. Vaša spätná väzba nám pomáha udržiavať katalóg presný.

Šablóna · portál TapHome Resi DALI Otvorte túto šablónu v Customer Portali a aplikujte ju na svoj domov, alebo navrhnite zmenu a odošlite ju späť do katalógu. Modbus RTU Zobraziť v portáli TapHome

Resi DALI

Návod na integráciu

Hardvérové pripojenie

Zapojenie RESI-DALI-SIO (RS-485)
