Intesis IBOX-MBS-DALI

Intesis brána DALI-na-Modbus RTU prepájajúca s TapHome až 64 DALI ECG predradníkov a 16 DALI skupín. Stmievanie jednotlivých predradníkov, hromadné zapnutie/vypnutie a konfigurácia power-on / system-failure úrovne cez RS-485.

IntesisModbus RTU80 zariadeníRevízia 1.0 Posledná aktualizácia: 8. októbra 2026

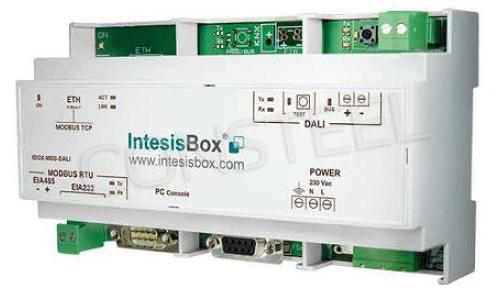

Intesis IBOX-MBS-DALI

Import do aplikácie TapHomeHardvér › Modbus › Pridať zo šablóny

Stiahnuť šablónu
Na tejto stránke

Vyžaduje externú bránu

Intesis IBOX-MBS-DALI (IBMBSDAL0640000) — stránka produktu

Návod na integráciu

Intesis IBOX-MBS-DALI je DALI-na-Modbus protokolový prevodník od spoločnosti Intesis (súčasť HMS Networks), ktorý sprístupňuje DALI-2 svetelné predradníky a skupiny ako Modbus holding registre. TapHome šablóna je určená pre 1-kanálový RTU variant (objednávací kód IBMBSDAL0640000, opätovne vydaný ako INMBSDAL0640200) a pripája sa k TapHome cez RS-485 Modbus RTU na porte B brány.

TapHome predáva novšiu bránu série 700 s objednávacím kódom IN703DAL0640000 (DALI-2 na Modbus TCP a RTU server, 1 DALI kanál). Podľa používateľského manuálu výrobcu (v1.0.11) má rovnakú mapu Modbus registrov, takže táto šablóna platí aj pre ňu.

Šablóna pokrýva plnú adresovateľnú kapacitu jednej DALI linky: 64 individuálnych ECG predradníkov (krátke adresy 0–63) a 16 DALI skupín. Každý ECG podporuje spätné čítanie aktuálnej úrovne (0–100 %), stavu poruchy predradníka/lampy a zápis arc power úrovne, power-on úrovne, system-failure úrovne, fade time a fade rate. DALI skupiny poskytujú write-only broadcast stmievacie ovládanie. Na úrovni modulu existujú štyri broadcast service actions (All On, All Off, All Set Power-on Level, All Set System-failure Level), ktoré jedným Modbus zápisom adresujú každý predradník na DALI linke.

DALI krátke adresy, členstvo v skupinách, scény a min/max úrovne musia byť vopred nakonfigurované pomocou bezplatného commissioning softvéru Intesis MAPS — až potom môže TapHome adresovať jednotlivé predradníky. TapHome šablóna sama nevykonáva DALI sieťovú detekciu ani adresovanie.

Hardvérové pripojenie

Varianty brány

TapHome šablóna je vytvorená pre 1-kanálovú RTU bránu. 2-kanálový variant má identickú mapu registrov, ale neponúka Modbus RTU (iba TCP), takže s touto RS-485 šablónou nie je kompatibilný.

Objednávací kódDALI kanályKapacita ECGSkupinyModbus RTUModbus TCP
IN703DAL0640000 (séria 700)16416Áno (Port B)Áno
IBMBSDAL0640000 / INMBSDAL064020016416Áno (Port B)Áno
IBMBSDAL1280000 / INMBSDAL1280200212832NieÁno

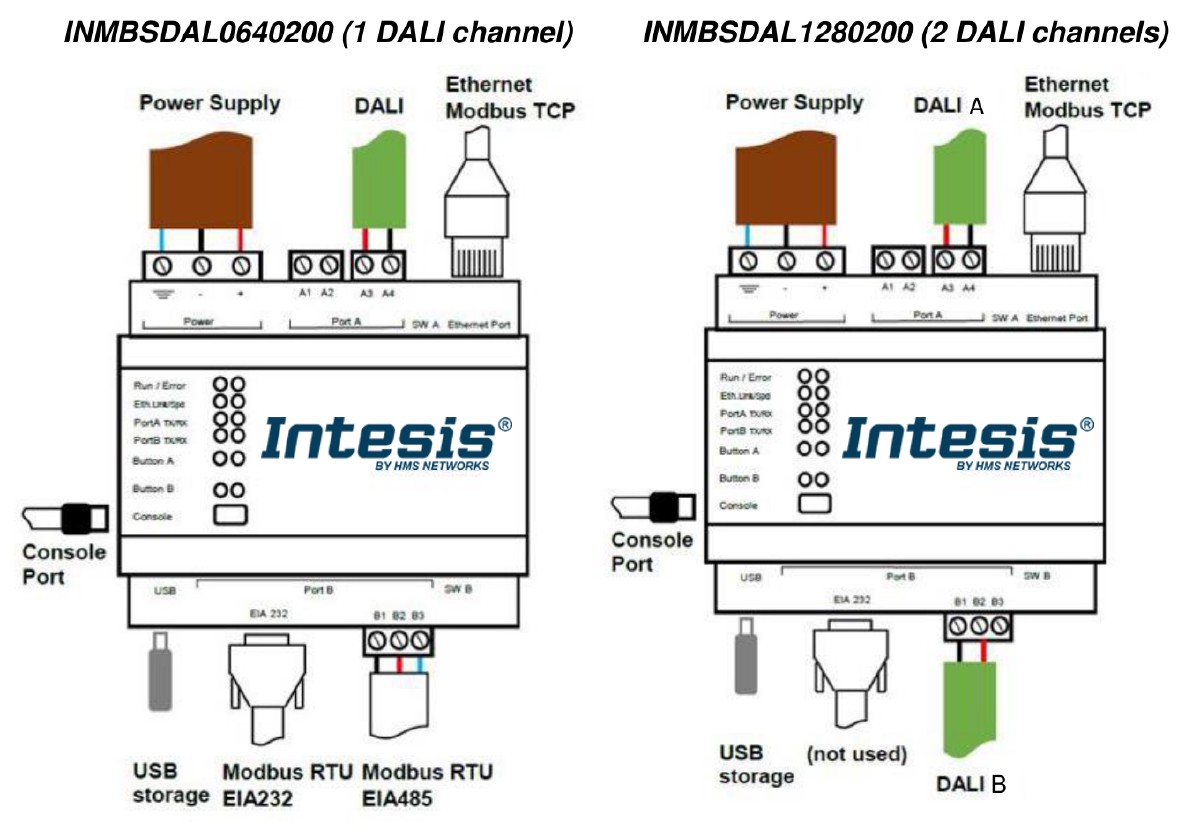

Intesis IBOX-MBS-DALI — rozloženie portov na 1-kanálovom (Modbus RTU + TCP) a 2-kanálovom (iba Modbus TCP) variante

TapHome šablóna používa vzorec registra 7000 × kanál + 100 × ECG + signál, vyhodnocovaný s kanál = 0. To presne zodpovedá 1-kanálovej IBOX-MBS-DALI aj bráne IN703DAL0640000 série 700.

Rozloženie konektorov (1-kanálový IBOX-MBS-DALI)

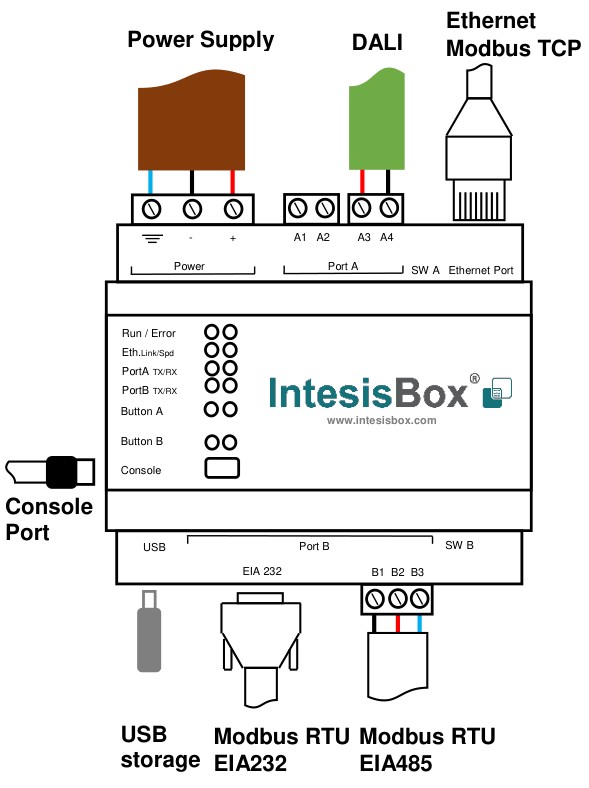

Rozloženie konektorov 1-kanálovej IBOX-MBS-DALI — napájanie, DALI Port A, Ethernet, Console, EIA232/EIA485 Port B

Pohľad zhora na 1-kanálovú IBOX-MBS-DALI:

  • Napájanie — 3-pólová zásuvná skrutkovacia svorka, 24 VDC ±10 % (+ / − / Earth)
  • Port A / DALI — 2-pólová oranžová svorka, A3 (DA+) a A4 (DA−), 16 VDC DALI napájanie
  • Ethernet — 1× RJ45 10/100 Mbps (Modbus TCP)
  • Console — mini-type B USB 2.0 pre konfiguráciu v Intesis MAPS
  • Port B / Modbus RTU — EIA485 3-pólová skrutkovacia svorka B1 (B+) / B2 (A−) / B3 (SGND) a EIA232 SUB-D9 male (alternatíva)
  • USB — Type-A USB 2.0 iba pre flash disky (max 150 mA)
  • SWA / SWB — DIP prepínače (SWA rezervovaný, SWB riadi RS-485 termináciu a polarizáciu — viď Konfigurácia nižšie)

Napájanie

  • Vstup: 24 VDC ±10 % na 3-pólovej svorke (+, −, Earth)
  • Zdroj: NEC Class 2 alebo Limited Power Source (LPS), SELV
  • Ochrana pred: 250 V / 6 A istič
  • Uzemnenie: Môže byť uzemnené iba cez záporný pól — nikdy nie cez kladný pól

Aby si predišiel zemným slučkám, ktoré môžu poškodiť bránu a pripojené zariadenia, nikdy nepoužívaj DC napájanie s uzemneným kladným pólom. Uzemni iba cez záporný pól, alebo nechaj uzemnenie plávať.

RS-485 Modbus RTU zapojenie (Port B, EIA485)

Pripoj TapHome RS-485 zbernicu k EIA485 svorke na Porte B:

Svorka IBOX-MBS-DALISignálTapHome RS-485
B1B+ (D+)A+ / D+
B2A− (D−)B− / D−
B3SGND (referenčná zem)GND

Dodrž polaritu. B1 = B+ (D+) a B2 = A− (D−). Prekrížené A/B spôsobí tichú stratu komunikácie bez poškodenia hardvéru.

Špecifikácia kábla (limity EIA485):

  • Max dĺžka: 1200 m na jednom RS-485 segmente
  • Max uzlov: 32 zariadení vrátane TapHome master a IBOX-MBS-DALI
  • Terminácia: 120 Ω na každom konci zbernice — TapHome Core má integrovaný 100 Ω rezistor na BUS svorkách, takže IBOX-MBS-DALI potrebuje aktívnu termináciu len ak je na poslednom konci RS-485 segmentu (viď DIP prepínač SWB nižšie)

Ak je brána nainštalovaná v strede RS-485 zbernice (nie na konci), nechaj SWB v polohe OFF a nepridávaj externú termináciu.

EIA232 alternatíva: Konektor Port B SUB-D9 male poskytuje EIA232 rozhranie používajúce len TX, RX a GND, s maximálnou dĺžkou kábla 15 m. TapHome natívne nepodporuje RS-232, takže EIA485 je štandardné TapHome pripojenie.

Zapojenie DALI zbernice (Port A)

Pripoj DALI linku k oranžovej 2-pólovej svorke Portu A:

  • A3 — DA+
  • A4 — DA−

IBOX-MBS-DALI poskytuje napätie zbernice 16 VDC (±2 %) s garantovaným prúdom 235 mA (max 250 mA) DALI; brána IN703DAL0640000 série 700 garantuje 230 mA (max 250 mA). DALI je podľa štandardu necitlivý na polaritu, ale toto vnútorné napájanie musí byť povolené v Intesis MAPS predtým, než bude DALI komunikácia fungovať — viď DALI commissioning nižšie.

Kapacita DALI na jednej linke (nechaj ~10 % rezervu pre dynamické procesy):

  • Až 64 ECG predradníkov (typicky 2 mA každý → 128 mA)
  • Až 64 DALI vstupných zariadení / odporúča sa 16 pri použití tlačidiel (typicky 5 mA každé)
  • Príklad rozpočtu: 64 ECG × 2 mA + 16 senzorov × 5 mA = 208 mA < 235 mA × 90 %
  • Príklad rozpočtu pre IN703DAL0640000 (údaje výrobcu): 63 ECG × 2 mA + 16 senzorov × 5 mA = 206 mA < 230 mA × 90 %

DALI je inherentne nízkorýchlostná zbernica (1200 baud) s dobou štartu brány 1,5 s a dobou vypnutia 7 s. DALI príkazy vydané z TapHome dorazia k predradníkom s malou, ale nenulovou latenciou oproti priamemu drôtovému riadeniu.

Konfigurácia

DIP prepínač SWB — RS-485 terminácia a polarizácia

DIP prepínač SWB na 1-kanálovej IBOX-MBS-DALI riadi iba charakteristiku RS-485 zbernice — na tejto bráne neexistuje Modbus slave adresa nastaviteľná DIP prepínačom (slave adresa sa nastavuje v Intesis MAPS, viď nižšie).

PozíciaONOFF
1120 Ω terminácia aktívnaTerminácia neaktívna
2Polarizácia aktívnaPolarizácia neaktívna
3Polarizácia aktívnaPolarizácia neaktívna
  • Pozícia 1 = ON — povolí interný 120 Ω terminačný rezistor. Použi, keď je IBOX-MBS-DALI na poslednej fyzickej pozícii RS-485 zbernice.
  • Pozície 2 a 3 = ON — povolia bus biasing (polarizáciu). Použi, keď žiadny iný master na zbernici neposkytuje biasing. TapHome Core poskytuje biasing na svojich BUS svorkách, takže tieto môžu väčšinou zostať OFF.

SWA je na tejto revízii hardvéru rezervovaný pre budúce použitie a nemá žiadny runtime efekt.

Parametre Modbus RTU komunikácie

Všetky RTU parametre sa konfigurujú v projekte Intesis MAPS a musia presne zodpovedať nastaveniam TapHome modulu.

ParameterHodnotyPredvolené v šablóne
Baud rate1200, 2400, 4800, 9600, 19200, 38400, 56700, 1152009600
Paritanone, even, oddnone
Stop bity1, 21
Dátové bity88
Slave adresa1–247Konfigurovateľná v MAPS

Intesis brána podporuje Modbus RTU a Modbus TCP súčasne na 1-kanálovom variante. TapHome používa RTU; paralelný BMS alebo diagnostický nástroj môže čítať tú istú mapu registrov cez TCP bez rušenia.

Povolenie Modbus komunikácie

Modbus komunikácia sa povolí nahratím platného projektu do brány pomocou Intesis MAPS (na tomto modeli nie sú zapojené žiadne DIP prepínače). Krátka verzia:

  1. Nainštaluj Intesis MAPS na Windows PC a pripoj sa k bráne cez USB Console alebo Ethernet.
  2. Otvor alebo vytvor projekt založený na šablóne INMBSDAL---0200-Template (pri bráne IN703DAL0640000 série 700 vyber šablónu IN-MBS-DALI-64, teda aplikáciu Modbus).
  3. V záložke Configuration → Modbus Slave nastav baud rate, paritu, stop bity a slave adresu tak, aby sa zhodovali s TapHome.
  4. V záložke Configuration → DALI povol interné 16 VDC napájanie DALI zbernice (viď DALI commissioning).
  5. Klikni na Send na prenos konfigurácie; brána sa automaticky reštartuje.
  6. V Diagnostic → Viewers over Modbus rámce na Port B TX/RX.

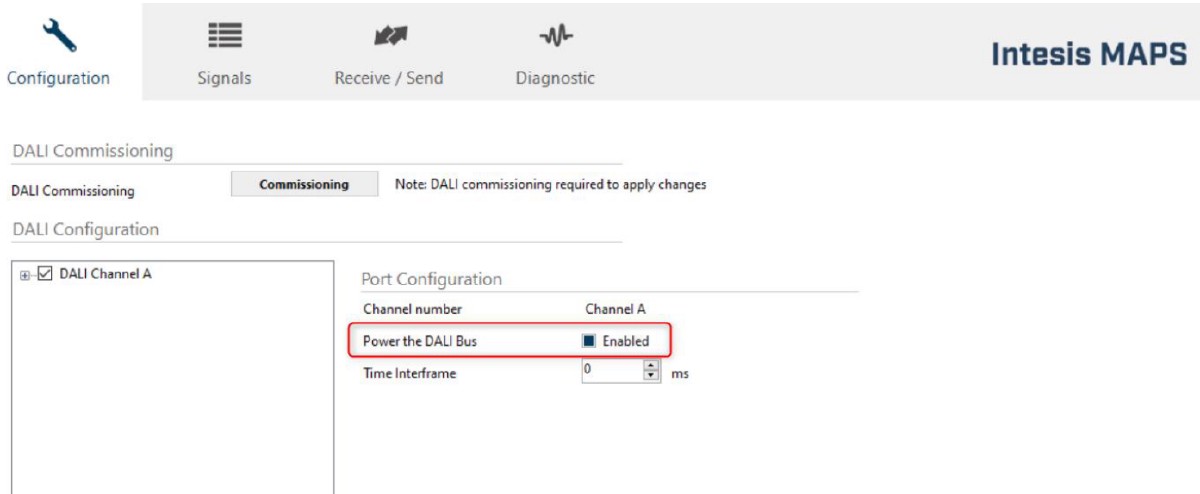

Konfigurácia napájania DALI zbernice v Intesis MAPS — povoľ 16 VDC DALI napájanie v konfigurácii brány pred commissioningom

DALI commissioning

DALI adresovanie sa vykonáva v Intesis MAPS — nie v TapHome. TapHome šablóna odkazuje na DALI krátke adresy 0–63 a skupinové adresy 0–15 podľa ich offsetu v registri; fyzické predradníky a skupiny musia byť najprv viazané na tieto adresy.

Vysokoúrovňový workflow commissioningu (plný postup v Intesis user manual, Annex A):

  1. V MAPS otvor projekt pre 1-kanálovú bránu a prejdi do Configuration → DALI → ECG Channel A.
  2. Klikni na Commissioning → Scan na detekciu ECG predradníkov na DALI zbernici.
  3. Každému predradníku priraď krátku adresu (0–63) cez tlačidlo Wink (blikne fyzickým predradníkom pre identifikáciu) alebo Auto Addr. (sekvenčné automatické priradenie).
  4. Voliteľne nastav parametre každého ECG: Device Type (0 = Fluorescent, 1 = Emergency, 6 = LED, …), min / max úroveň, power-on úroveň, system-failure úroveň, konfiguráciu scén a členstvo v skupine (0–15).
  5. Klikni na Commissioning → Set All na prenos konfigurácie z MAPS do DALI zbernice.
  6. Klikni na Send na prenos konfigurácie úrovne brány (Modbus parametre, mapa signálov) späť do IBOX-MBS-DALI.

Po commissioningu sa ECG identifikované krátkou adresou v TapHome (napr. ECG 5 → register H:506) mapujú jeden-k-jednému na fyzické predradníky. Členstvo v skupinách musí byť takisto definované v MAPS, aby zariadenia DALI Group fungovali, hoci šablóna exponuje service actions per-ECG Add to DALI Group / Remove from DALI Group, ktoré môžu priradiť členstvo v skupine za behu na kompatibilnom firmvéri.

Podľa user manual r1.5 (máj 2024) sú signály 29 a 30 (Add to DALI Group / Remove from DALI Group) na aktuálnom firmvéri označené ako Not used. TapHome šablóna tieto akcie stále exponuje, pretože fungovali na starších firmvéroch, ale stabilné priradenia skupín by sa mali konfigurovať v Intesis MAPS, nie za behu.

Používateľský manuál brány IN703DAL0640000 série 700 (v1.0.11) uvádza signály 29 a 30 ako čítanie/zápis, takže podľa manuálu by na tejto bráne mali byť akcie dostupné.

Prehľad mapy registrov

TapHome používa jeden vzorec pre všetky registre:

1
2
3

H:address = 7000 × channel + 100 × ECG + signal      (individuálny ECG)
H:address = 7000 × channel + 20 × group + 6400..6415  (DALI skupina)
H:address = 7000 × channel + 6800..6815              (broadcast)

Na 1-kanálovom variante je vždy channel = 0. Šablóna exponuje nasledovné rozsahy registrov:

RozsahFunkciaExponované v šablóne
H:0 – H:3Bitmaska poruchy predradníka/lampy (ECG 63..0, 4× UInt16)Áno — ako failRegister na úrovni modulu
H:SA+5Bitmaska stavu ECG predradníka (per ECG)Áno — errors, warnings, info per ECG
H:SA+6Aktuálna úroveň ECG 0–100 % (čítanie)Áno — spätná väzba polohy stmievača
H:SA+7Enum typu zariadenia ECGÁno — ako service attribute
H:SA+11..+14Power-on / system-failure úroveň, fade time / rate (čítanie)Áno — ako service attributes
H:SA+15ECG arc power úroveň 0–100 % (zápis)Áno — writelevel, lineárne mapovaný do Min/Max
H:SA+23..+30Nastav fade time/rate, nastav úrovne, pridaj/odober zo skupinyÁno — ako service actions per-ECG
H:6400 + 20·GRGroup arc power úroveň 0–100 % (zápis)Áno — ako write-only zariadenie DALI Group
H:6801Broadcast Arc Power Off/On (0/100 %)Áno — ako moduly All On / All Off
H:6812 / H:6813Broadcast Set Power-on / System-failure LevelÁno — ako service actions na úrovni modulu

Vstupné zariadenia (prítomnostné senzory, tlačidlá, svetelné senzory) na adresách 14000 + 640·LINE + 10·IDX + INSTANCE + 1280·SIG nie sú v tejto šablóne implementované.

Možnosti zariadenia

Stmievanie per ECG (64 ECG zariadení)

Každá krátka adresa 0–63 je exponovaná ako individuálne TapHome stmievacie zariadenie (ECG 0 až ECG 63). Možnosti per ECG:

  • Aktuálna úroveň — číta H:SA+6 (0–100 %) ako spätnú väzbu polohy stmievača
  • Arc power úroveň — zapisuje H:SA+15 (0–100 %), lineárne mapovaná z 0–1 stmievacej škály TapHome do rozsahu [min level, max level] nakonfigurovaného pre predradník
  • Stav predradníka — bitmaska na H:SA+5 riadi TapHome diagnostiku: BallFail a LampFail vyvolajú errors, BallLimit, Reset a PowerCycle vyvolajú warnings, FadeRun sa zobrazí ako info, MissingShortAddr vyvolá error
  • Detekcia komunikačnej poruchy — modul číta 64-bit poruchovú bitmasku na H:0 – H:3 a označuje jednotlivé ECG ako poruchové nezávisle od statusu H:SA+5

Service attributes per ECG (read-only metadáta)

Každé ECG zariadenie exponuje päť service attributes, ktoré čítajú jeho aktuálnu DALI konfiguráciu:

  • Main Device Type — H:SA+7 enum (0–8): 0 = Fluorescent, 1 = Emergency, 2 = Discharge, 3 = Halogen, 4 = Incandescent, 5 = Digital signal, 6 = LED, 7 = Switching, 8 = Colour Control
  • Power-on Level [%] — H:SA+11 (0–100 %) — úroveň, na ktorú sa predradník vráti po zapnutí DALI zbernice
  • System-failure Level [%] — H:SA+12 (0–100 %) — úroveň, do ktorej predradník prejde pri výpadku DALI zbernice
  • Fade Time — H:SA+13 (0–15) — index DALI fade-time (čas na dosiahnutie cieľovej úrovne pri priamych zápisoch arc power)
  • Fade Rate — H:SA+14 (1–15) — index DALI fade-rate (rýchlosť príkazov step up / step down)

Service actions per ECG (zápis)

Každé ECG takisto exponuje šesť service actions na online rekonfiguráciu:

  • Set Power-on Level — zapisuje H:SA+27 (0–100 %)
  • Set System-failure Level — zapisuje H:SA+28 (0–100 %)
  • Set Fade Time — zapisuje H:SA+23 (0–15)
  • Set Fade Rate — zapisuje H:SA+24 (1–15)
  • Add to DALI Group — zapisuje H:SA+29 s číslom skupiny (0–15) — viď upozornenie ku commissioningu vyššie
  • Remove from DALI Group — zapisuje H:SA+30 s číslom skupiny (0–15)

Každý zápis je automaticky potvrdený šablónou cez H:SA+4 = 1 (Update All ECG Status), čo aktualizuje cachované čítacie hodnoty v bráne.

DALI skupiny (16 write-only broadcast stmievačov)

DALI Group 0 až DALI Group 15 sú exponované ako write-only stmievacie zariadenia:

  • Zápisový register: H:6400 + 20 × GR (napr. Group 0 = H:6400, Group 15 = H:6700)
  • Správanie: zápis TapHome stmievacej hodnoty 0–1 odošle Arc Power Level = Le × 100 každému ECG, ktorý je členom danej DALI skupiny
  • Bez spätnej väzby čítania — signál skupiny nemá register aktuálnej úrovne, takže TapHome sleduje úroveň skupiny iba z užívateľského vstupu, nie z reálneho stavu predradníkov

Skupiny používaj pre miestnosti alebo zóny, kde niekoľko predradníkov stmieva spolu. Členstvo v skupine sa konfiguruje per-ECG cez ECG service action Add to DALI Group alebo (odporúčane) v Intesis MAPS.

Broadcast akcie na úrovni modulu

Hlavný modul (Intesis DALI Gateway) exponuje štyri service actions, ktoré naraz adresujú každý predradník na DALI linke:

  • All — On — zapisuje H:6801 = 1, broadcastuje 100 % každému ECG
  • All — Off — zapisuje H:6801 = 0, broadcastuje 0 % každému ECG
  • All — Set Power-on Level — zapisuje H:6812 (0–100 %) na konfiguráciu úrovne, na ktorú sa všetky predradníky vrátia po zapnutí DALI napájania
  • All — Set System-failure Level — zapisuje H:6813 (0–100 %) na konfiguráciu úrovne, do ktorej všetky predradníky prejdú pri výpadku DALI zbernice

Tieto sú rýchlejšie ako iterovanie zápisov per-ECG, keď všetky predradníky musia dosiahnuť rovnaký cieľový stav (napr. panic off, ranné prednastavenie).

Status LED a tlačidlá

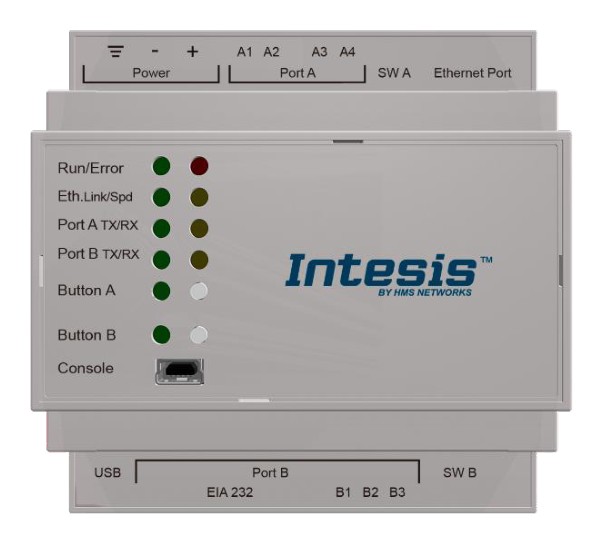

Status LED a tlačidlá IBOX-MBS-DALI — Run, Error, Port A TX/RX (DALI), Port B TX/RX (Modbus RTU), Button A, Button B
LEDStavVýznam
RunOff / ZelenáBez napájania / zariadenie napájané a bežiace
ErrorOff / ČervenáBez chyby / chybový stav
Port A Tx / Rx (DALI)Off / Blikajúca zelená / Blikajúca žltáBez aktivity / TX paket do DALI / RX paket z DALI
Port B Tx / Rx (Modbus RTU)Off / Blikajúca zelená / Blikajúca žltáBez aktivity / TX paket na RS-485 / RX paket na RS-485
Indikátor Button AOff / ZelenáStav DALI broadcastu: OFF / RECALL_MAX_LEVEL
Indikátor Button BOff / ZelenáBez predvolenej funkcie (konfigurovateľné v MAPS)

Button A (DALI A) — stlačenie prepne DALI broadcast medzi RECALL_MAX_LEVEL (100 %) a OFF, užitočné na rýchly on-site sanity check DALI linky bez zapojenia TapHome. Po 30 s sa LED Button A vypne a predradníky sa vrátia na svoju predchádzajúcu úroveň.

Button B — na tejto bráne bez predvolenej funkcie; dá sa nakonfigurovať ako RS-485 akcia v Intesis MAPS.

Montáž

DIN lišta (odporúčané)

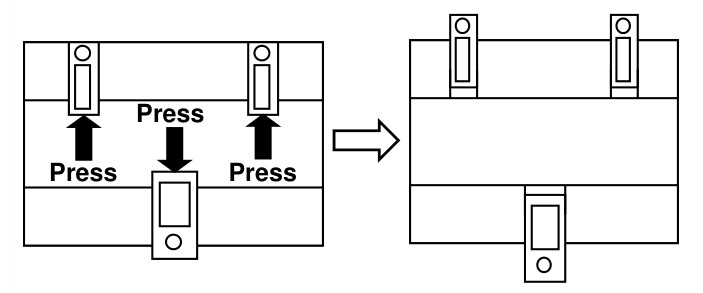

Montáž IBOX-MBS-DALI na DIN lištu — EN60715 TH35 štandardná lišta, fixačné klipy vo vnútornej továrenskej pozícii

EN60715 TH35, ideálne vnútri kovového rozvádzača pripojeného na uzemnenie. Nechaj fixačné klipy v ich vnútornej továrenskej pozícii, najprv zachyť horný okraj lišty, potom stlač nadol, aby sa zacvakol spodok.

Montáž na stenu

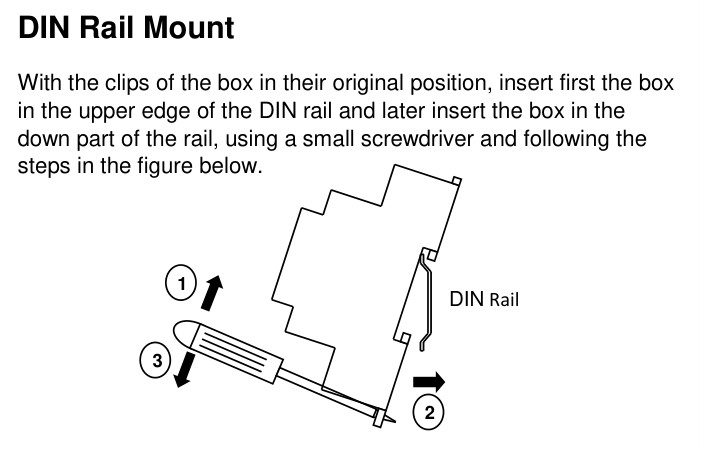

Montáž IBOX-MBS-DALI na stenu — fixačné klipy premiestnené smerom von odkrývajú montážne otvory
  1. Oddeľ fixačné klipy z ich pôvodnej pozície (pre montáž na DIN lištu) tlakom smerom von, kým nezacvaknú do pozície na montáž na stenu.
  2. Použi montážne otvory v škatuli na jej upevnenie na stenu.

Priestor a prostredie

  • Inštalačný priestor: okolo zariadenia nechaj 130 × 100 × 100 mm (V × Š × H) pre konektory a káble. Čisté rozmery: 90 × 88 × 56 mm (brána IN703DAL0640000 série 700: 90 × 88 × 58 mm).
  • Prostredie: IP20, iba vnútorné. Prevádzková teplota 0 °C až +50 °C (user manual) / +60 °C (installation sheet), vlhkosť 5–95 % bez kondenzácie. Brána IN703DAL0640000 série 700 pracuje pri teplote −10 °C až +60 °C.

Riešenie problémov

Žiadna Modbus komunikácia (Port B Tx/Rx LED zostávajú off)

  1. Skontroluj zapojenie RS-485 — over polaritu B1 (B+) / B2 (A−) voči TapHome RS-485 svorkám; ich prekríženie je najčastejšia chyba.
  2. Skontroluj SGND — pripoj B3 na TapHome zem. Chýbajúci signálový ground je druhá najčastejšia príčina nestabilnej RTU.
  3. Zhodnoť sériové parametre — baud rate, parita, stop bity a slave adresa v TapHome sa musia presne zhodovať s hodnotami v projekte Intesis MAPS.
  4. Skontroluj SWB DIP prepínače — ak je táto brána na fyzickom konci RS-485 zbernice, nastav SWB pozíciu 1 = ON (120 Ω terminácia). Ak je v strede zbernice, nastav všetky pozície SWB na OFF.
  5. Over, že TCP nedrží slot — brána umožňuje 5 súčasných TCP socketov a 1 RTU master; zle nakonfigurované MAPS pripojenie neblokuje RTU, ale počas TapHome ladenia sa oplatí MAPS zatvoriť.

Modbus funguje, ale DALI predradníky nereagujú

  1. Povol interné napájanie DALI zbernice — nové brány sa dodávajú s DALI napájaním vypnutým. Otvor Intesis MAPS → Configuration → DALI → DALI Channel A a nastav Power the DALI bus = Enabled, potom Send konfiguráciu. Bez napájania zbernice brána hlási hardvérovú chybu pri každom DALI zápise.
  2. Rýchly sanity check — stlač Button A na bráne. Mal by broadcastovať RECALL_MAX_LEVEL a prepnúť každý pripojený predradník on/off. Ak sa nič nepohne, problémom je samotná DALI zbernica (zapojenie, napätie, napájanie predradníkov).
  3. Spusti on-bus scan v MAPS — Commissioning → Scan na DALI Channel A zoznamne každý predradník, ktorý brána vidí. Chýbajúce predradníky zvyčajne znamenajú nenapájaný ECG, nepriradenú DALI krátku adresu, alebo prerušenie DALI zbernice.
  4. Over krátke adresy — TapHome adresuje ECG 5 na registri H:506; ak krátka adresa 5 nebola priradená v MAPS, register existuje, ale fyzický predradník nie je na ňu viazaný.

Konkrétny ECG hlási poruchu v TapHome

TapHome sprístupňuje dva zdroje porúch pre každý ECG:

  • Module failRegister (H:0 – H:3) — jeden bit na ECG. Nastavený bit vyvolá komunikačnú chybu (brána sa nemôže vôbec rozprávať s predradníkom).
  • ECG ballast status (H:SA+5) — bitmaska per-ECG. BallFail a LampFail vyvolajú errors (hardvérová porucha predradníka alebo lampy), MissingShortAddr vyvolá error (ECG odpovedal, ale nemá krátku adresu), BallLimit, Reset a PowerCycle vyvolajú warnings, FadeRun je informačný.

Vymeň poruchový predradník alebo znova commissionuj krátku adresu v MAPS na odstránenie chyby.

Zápis akceptovaný, ale predradník nemení úroveň

  1. Over, či predradník nie je vo fade — FadeRun na H:SA+5 znamená, že predradník práve fade-uje; počkaj, kým dokončí. Skrátenie Fade Time (H:SA+23) znižuje vnímanú latenciu.
  2. Skontroluj Min / Max úroveň — TapHome lineárne mapuje svoju 0–1 stmievaciu škálu do okna [min level, max level] načítaného z predradníka (H:SA+9 / H:SA+10). Ak sa obe rovnajú, predradník nemôže zmeniť úroveň; re-konfiguruj min/max v MAPS.
  3. Add/Remove z DALI skupiny — na najnovšom firmvéri r1.5 sú tieto akcie per-ECG označené ako deprecated; priradenie do skupiny vykonaj namiesto toho v MAPS. Používateľský manuál brány IN703DAL0640000 série 700 ich uvádza ako čítanie/zápis.

Dostupné zariadenia 80

Tieto zariadenia sa po importe zobrazia v TapHome.

Intesis DALI Modul
Servisné akcie
Všetky — ZapnúťBroadcastuje 100 % arc power každému predradníku na DALI linke — panic-on alebo ranné prednastavenie jedným Modbus zápisom
Všetky — VypnúťBroadcastuje 0 % arc power každému predradníku na DALI linke — panic-off alebo upratovacie prednastavenie jedným Modbus zápisom
Všetky — Nastaviť Power-on úroveňBroadcastuje novú power-on úroveň (0–100 %) každému predradníku — úroveň, na ktorú sa vrátia po zapnutí DALI zbernice
Všetky — Nastaviť System-failure úroveňBroadcastuje novú system-failure úroveň (0–100 %) každému predradníku — úroveň, do ktorej prejdú pri výpadku DALI zbernice

Intesis Dali

Čítanie (modul)
failRegister := modbusr(H, base_modifier + 0, Uint16) +
(modbusr(H, base_modifier + 1, Uint16) << 16) +
(modbusr(H, base_modifier + 2, Uint16) << 32) +
(modbusr(H, base_modifier + 3, Uint16) << 48)
Servisné akcie
All - On
modbusw(H, base_modifier + 6801, uint16, 1);
All - Off
modbusw(H, base_modifier + 6801, uint16, 0);
All - Set Power-on Level
Parametre: Level (0–100 Lvl)
modbusw(H, base_modifier + 6812, uint16, Lvl);
All - Set System-failure Level
Parametre: Level (0–100 Lvl)
modbusw(H, base_modifier + 6813, uint16, Lvl);
ECG 0 Stmievač Čítanie aj zápis

Individuálny DALI predradník na krátkej adrese 0 — stmievač so spätnou väzbou aktuálnej úrovne, stavom poruchy predradníka/lampy, zápisom arc power a konfiguráciou fade time/rate a power-on / system-failure úrovne per ECG

Register: H:6 → H:15 UInt16 Jednotka: % numeric
Servisné atribúty
Hlavný typ zariadeniaTyp DALI zariadenia — Fluorescent (0), Emergency (1), Discharge (2), Halogen (3), Incandescent (4), Digital signal (5), LED (6), Switching (7) alebo Colour Control (8)
Power-on úroveňÚroveň (0–100 %), na ktorú sa predradník vráti po zapnutí DALI zbernice
System-failure úroveňÚroveň (0–100 %), do ktorej predradník prejde pri výpadku DALI zbernice
Fade TimeIndex DALI fade-time (0–15) — čas na dosiahnutie cieľovej úrovne pri priamych zápisoch arc power
Fade RateIndex DALI fade-rate (1–15) — rýchlosť príkazov step up / step down
Servisné akcie
Nastaviť Power-on úroveňZapíše novú power-on úroveň (0–100 %) tomuto ECG
Nastaviť System-failure úroveňZapíše novú system-failure úroveň (0–100 %) tomuto ECG
Nastaviť Fade TimeZapíše nový index DALI fade-time (0–15) tomuto ECG
Nastaviť Fade RateZapíše nový index DALI fade-rate (1–15) tomuto ECG
Pridať do DALI skupinyPriradí tento ECG do DALI skupiny (0–15), aby ho bolo možné adresovať cez broadcast stmievač skupiny
Odobrať z DALI skupinyOdoberie tento ECG zo zadanej DALI skupiny (0–15)

ECG 0

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 1 Stmievač Čítanie aj zápis
Register: H:106 → H:115 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 1

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 2 Stmievač Čítanie aj zápis
Register: H:206 → H:215 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 2

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 3 Stmievač Čítanie aj zápis
Register: H:306 → H:315 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 3

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 4 Stmievač Čítanie aj zápis
Register: H:406 → H:415 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 4

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 5 Stmievač Čítanie aj zápis
Register: H:506 → H:515 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 5

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 6 Stmievač Čítanie aj zápis
Register: H:606 → H:615 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 6

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 7 Stmievač Čítanie aj zápis
Register: H:706 → H:715 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 7

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 8 Stmievač Čítanie aj zápis
Register: H:806 → H:815 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 8

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 9 Stmievač Čítanie aj zápis
Register: H:906 → H:915 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 9

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 10 Stmievač Čítanie aj zápis
Register: H:1006 → H:1015 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 10

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 11 Stmievač Čítanie aj zápis
Register: H:1106 → H:1115 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 11

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 12 Stmievač Čítanie aj zápis
Register: H:1206 → H:1215 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 12

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 13 Stmievač Čítanie aj zápis
Register: H:1306 → H:1315 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 13

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 14 Stmievač Čítanie aj zápis
Register: H:1406 → H:1415 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 14

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 15 Stmievač Čítanie aj zápis
Register: H:1506 → H:1515 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 15

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 16 Stmievač Čítanie aj zápis
Register: H:1606 → H:1615 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 16

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 17 Stmievač Čítanie aj zápis
Register: H:1706 → H:1715 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 17

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 18 Stmievač Čítanie aj zápis
Register: H:1806 → H:1815 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 18

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 19 Stmievač Čítanie aj zápis
Register: H:1906 → H:1915 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 19

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 20 Stmievač Čítanie aj zápis
Register: H:2006 → H:2015 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 20

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 21 Stmievač Čítanie aj zápis
Register: H:2106 → H:2115 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 21

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 22 Stmievač Čítanie aj zápis
Register: H:2206 → H:2215 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 22

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 23 Stmievač Čítanie aj zápis
Register: H:2306 → H:2315 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 23

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 24 Stmievač Čítanie aj zápis
Register: H:2406 → H:2415 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 24

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 25 Stmievač Čítanie aj zápis
Register: H:2506 → H:2515 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 25

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 26 Stmievač Čítanie aj zápis
Register: H:2606 → H:2615 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 26

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 27 Stmievač Čítanie aj zápis
Register: H:2706 → H:2715 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 27

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 28 Stmievač Čítanie aj zápis
Register: H:2806 → H:2815 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 28

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 29 Stmievač Čítanie aj zápis
Register: H:2906 → H:2915 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 29

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 30 Stmievač Čítanie aj zápis
Register: H:3006 → H:3015 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 30

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 31 Stmievač Čítanie aj zápis
Register: H:3106 → H:3115 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 31

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 32 Stmievač Čítanie aj zápis
Register: H:3206 → H:3215 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 32

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 33 Stmievač Čítanie aj zápis
Register: H:3306 → H:3315 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 33

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 34 Stmievač Čítanie aj zápis
Register: H:3406 → H:3415 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 34

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 35 Stmievač Čítanie aj zápis
Register: H:3506 → H:3515 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 35

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 36 Stmievač Čítanie aj zápis
Register: H:3606 → H:3615 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 36

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 37 Stmievač Čítanie aj zápis
Register: H:3706 → H:3715 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 37

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 38 Stmievač Čítanie aj zápis
Register: H:3806 → H:3815 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 38

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 39 Stmievač Čítanie aj zápis
Register: H:3906 → H:3915 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 39

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 40 Stmievač Čítanie aj zápis
Register: H:4006 → H:4015 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 40

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 41 Stmievač Čítanie aj zápis
Register: H:4106 → H:4115 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 41

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 42 Stmievač Čítanie aj zápis
Register: H:4206 → H:4215 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 42

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 43 Stmievač Čítanie aj zápis
Register: H:4306 → H:4315 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 43

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 44 Stmievač Čítanie aj zápis
Register: H:4406 → H:4415 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 44

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 45 Stmievač Čítanie aj zápis
Register: H:4506 → H:4515 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 45

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 46 Stmievač Čítanie aj zápis
Register: H:4606 → H:4615 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 46

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 47 Stmievač Čítanie aj zápis
Register: H:4706 → H:4715 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 47

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 48 Stmievač Čítanie aj zápis
Register: H:4806 → H:4815 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 48

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 49 Stmievač Čítanie aj zápis
Register: H:4906 → H:4915 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 49

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 50 Stmievač Čítanie aj zápis
Register: H:5006 → H:5015 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 50

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 51 Stmievač Čítanie aj zápis
Register: H:5106 → H:5115 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 51

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 52 Stmievač Čítanie aj zápis
Register: H:5206 → H:5215 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 52

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 53 Stmievač Čítanie aj zápis
Register: H:5306 → H:5315 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 53

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 54 Stmievač Čítanie aj zápis
Register: H:5406 → H:5415 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 54

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 55 Stmievač Čítanie aj zápis
Register: H:5506 → H:5515 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 55

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 56 Stmievač Čítanie aj zápis
Register: H:5606 → H:5615 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 56

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 57 Stmievač Čítanie aj zápis
Register: H:5706 → H:5715 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 57

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 58 Stmievač Čítanie aj zápis
Register: H:5806 → H:5815 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 58

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 59 Stmievač Čítanie aj zápis
Register: H:5906 → H:5915 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 59

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 60 Stmievač Čítanie aj zápis
Register: H:6006 → H:6015 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 60

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 61 Stmievač Čítanie aj zápis
Register: H:6106 → H:6115 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 61

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 62 Stmievač Čítanie aj zápis
Register: H:6206 → H:6215 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 62

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
ECG 63 Stmievač Čítanie aj zápis
Register: H:6306 → H:6315 UInt16 Jednotka: % numeric
Servisné atribúty
Main Device Type
Power On Level [%]
System Failure Level [%]
Fade Time
Fade Rate
Servisné akcie
Set Power-on Level
Set System-failure Level
Set Fade Time
Set Fade Rate
Add to DALI Group
Remove from DALI Group

ECG 63

Čítanie (modul)
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
int shift := floor(SA / 32);

if(getbit(failRegister >> 32*shift,SA - 32*shift) = 1, adderror("DALI communication error, Ballast/Lamp Failure"));
if(getbit(status,0) = 1, adderror("Ballast Fail"));
if(getbit(status,1) = 1, adderror("Lamp Fail"));
#if(getbit(status,2) = 1, addwarning("Lamp Power On"));
if(getbit(status,3) = 1, addwarning("Ballast Limit"));
if(getbit(status,4) = 1, addinfo("Fade Run"));
if(getbit(status,5) = 1, addwarning("Reset"));
if(getbit(status,6) = 1, adderror("Missing Short Address"));
if(getbit(status,7) = 1, addwarning("Power Cycle"));
Inicializácia
var base := base_modifier + (100 * SA);
modbusw(H, base + 4, uint16, 1);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);
Čítanie úrovne
var base := base_modifier + (100 * SA);
status := modbusr(H, base + 5, uint16);
level := modbusr(H, base + 6, uint16);
minLevel := modbusr(H, base + 9, uint16);
maxLevel := modbusr(H, base + 10, uint16);

# fade run or updating values or <=1% diff
var diff := abs(level - Le * 100);
if getbit(status,4) or (diff > 0 and diff <= 1) or count > 0
	count := count -1;
	return(le);
else
	if level = 0
		return(0);
	else
		return(linear(level, minLevel, if(minLevel=0, 0, 0.01), maxLevel, 1));
	end
end
Zápis úrovne
var base := base_modifier + (100 * SA);
if !isnull(Le)
	count := 2;
	if le = 0
		modbusw(H, base + 15, uint16, 0);
	else
		modbusw(H, base + 15, uint16, linear(le, if(minLevel=0, 0, 0.01), minLevel, 1, maxLevel));
	end
end
#trigger update
modbusw(H, base + 4, uint16, 1);
Servisné atribúty
Main Device Type

var base := base_modifier + (100 * SA);

switch(modbusr(H, base + 7, uint16),
0, "Fluorescent",
1, "Emergency",
2, "Discharge",
3, "Halogen",
4, "Incandescent",
5, "Digital signal",
6, "LED",
7, "Switching",
8, "Color control",
255, "Other",
"Unknown")
Power On Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 11, uint16);
System Failure Level [%]
var base := base_modifier + (100 * SA);
modbusr(H, base + 12, uint16);
Fade Time
var base := base_modifier + (100 * SA);
modbusr(H, base + 13, uint16);
Fade Rate
var base := base_modifier + (100 * SA);
modbusr(H, base + 14, uint16);
Servisné akcie
Set Power-on Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 27, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set System-failure Level
Parametre: Level (0–100 Lvl)
var base := base_modifier + (100 * SA);
modbusw(H, base + 28, uint16, Lvl);
modbusw(H, base + 4, uint16, 1);
Set Fade Time
Parametre: Fade Time (0–15 FT)
var base := base_modifier + (100 * SA);
modbusw(H, base + 23, uint16, FT);
modbusw(H, base + 4, uint16, 1);
Set Fade Rate
Parametre: Fade Rate (1–15 FR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 24, uint16, FR);
modbusw(H, base + 4, uint16, 1);
Add to DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 29, uint16, GR);
modbusw(H, base + 4, uint16, 1);
Remove from DALI Group
Parametre: Group (0–15 GR)
var base := base_modifier + (100 * SA);
modbusw(H, base + 30, uint16, GR);
modbusw(H, base + 4, uint16, 1);
DALI skupina 0 Stmievač Čítanie aj zápis

Write-only broadcast stmievač pre všetky ECG priradené do DALI skupiny 0 — bez spätnej väzby čítania, TapHome sleduje úroveň iba z užívateľského vstupu

UInt16 Jednotka: % numeric

DALI skupina 0

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 1 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 1

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 2 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 2

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 3 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 3

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 4 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 4

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 5 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 5

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 6 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 6

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 7 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 7

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 8 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 8

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 9 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 9

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 10 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 10

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 11 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 11

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 12 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 12

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 13 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 13

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 14 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 14

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
DALI skupina 15 Stmievač Čítanie aj zápis
UInt16 Jednotka: % numeric

DALI skupina 15

Zápis úrovne
if !isnull(Le)
	modbusw(H, (20 * GA) + 6400 + base_modifier, uint16, Le * 100);
end
Pripojenie: Modbus RTU • 9600 baud• 8N1 • Slave ID: $[SlaveId]
Možné vylepšenia (40)
  • H:6800 Broadcast Arc Power Level — Write 0–100 % to set every ballast on the DALI line to the same arc power level — not exposed as an action; only per-group (6400+20*GR) and All On/Off (6801) are wired up
  • H:6802 Broadcast Step Down / Up — 0 = Step Down, 1 = Step Up applied to all ECGs on the line (step size controlled by each ECG's Fade Rate)
  • H:6803 Broadcast Recall Min Level — Write 1 → every ballast jumps to its individually configured Min Level
  • H:6804 Broadcast Recall Max Level — Write 1 → every ballast jumps to its individually configured Max Level
  • H:6805 Broadcast Go to Scene — Write 0–15 to recall a DALI scene on every ballast (scenes pre-configured in MAPS or via Set Scene action per ECG)
  • H:6806 Broadcast Store Current Level as Scene — Write 0–15 to save the current arc power level of every ballast into the selected scene slot
  • H:6807 Broadcast Clear/Remove Scene — Write 0–15 to erase the selected scene on every ballast
  • H:6808 Broadcast Set Fade Time — Write 0–15 to apply the same fade-time index to every ballast (faster than per-ECG configuration for uniform fades)
  • H:6809 Broadcast Set Fade Rate — Write 1–15 to apply the same fade-rate index to every ballast
  • H:6810 Broadcast Set Min Level — Write 0–100 % to set the same minimum dim level on every ballast
  • H:6811 Broadcast Set Max Level — Write 0–100 % to set the same maximum dim level on every ballast
  • H:6814 Broadcast Multicontrol — Compound register — 0=Off, 1=100%, 2=StpUp, 3=StpDwn, 1XX=GoScene(XX), 2XX=StoreScene, 3XX=RmvScene, 1XXX=FdRate, 2XXX=FdTime, 3XXX=MinLvl, 4XXX=MaxLvl, 5XXX=PwrOnLvl, 6XXX=SysFailLvl; enables 'one-write many-ops' for advanced BMS scripting
  • H:SA+8 Physical Minimum Level (per ECG) — Hardware-defined minimum dim level per ballast (distinct from user-settable Min Level at +9); read-only
  • H:SA+16 Arc Power Off/On (per ECG) — R/W toggle: 0 = Off, 1 = 100 %; TapHome writes arc power level at +15 instead which covers the same capability
  • H:SA+17 Step Down/Up (per ECG) — 0 = Step Down, 1 = Step Up — relative dimming per ballast using the stored fade-rate
  • H:SA+18 Recall Min Level (per ECG) — Write 1 → this ECG jumps to its Min Level
  • H:SA+19 Recall Max Level (per ECG) — Write 1 → this ECG jumps to its Max Level
  • H:SA+20 Go to Scene (per ECG) — 0–15 scene recall per ballast
  • H:SA+21 Store Current Level as Scene (per ECG) — 0–15 scene save per ballast
  • H:SA+22 Clear/Remove Scene (per ECG) — 0–15 scene clear per ballast
  • H:SA+25 Set Min Level (per ECG) — 0–100 %; R/W — TapHome reads current min via service attribute Fade Time but does NOT expose a writer for minLevel (template caches the read value into minLevel variable for writelevel linear mapping)
  • H:SA+26 Set Max Level (per ECG) — 0–100 %; mirror of the above for maxLevel
  • H:SA+31 Multicontrol (per ECG) — Compound write (see Broadcast Multicontrol for encoding) — advanced single-register scripting entry-point per ECG
  • H:6401+20*GR Group Arc Power Off/On — Group-wide 0/100 % toggle; template only exposes Arc Power Level (group writelevel), so ON/OFF is achievable only by writing 0 or 100
  • H:6402+20*GR Group Step Down/Up — Relative dim per group
  • H:6403+20*GR Group Recall Min Level
  • H:6404+20*GR Group Recall Max Level
  • H:6405+20*GR Group Go to Scene — 0–15
  • H:6406+20*GR Group Store Current Level as Scene — 0–15
  • H:6407+20*GR Group Clear/Remove Scene — 0–15
  • H:6408+20*GR Group Set Fade Time — 0–15
  • H:6409+20*GR Group Set Fade Rate — 1–15
  • H:6410+20*GR Group Set Min Level — 0–100 %
  • H:6411+20*GR Group Set Max Level — 0–100 %
  • H:6412+20*GR Group Set Power-on Level — 0–100 %
  • H:6413+20*GR Group Set System-failure Level — 0–100 %
  • H:SA+42..+73 Emergency Control Gear (EML) signals — Failure Status, Emergency Mode, Battery Charge, Function/Duration test control, Rated Duration, Prolong Time, Store* parameters — Entire DALI Emergency (Part 202) feature set: SA+42 Failure Status, +43 Emergency Mode, +44 Emergency Status, +45 Battery Charge %, +46..+49 test schedule, +50..+57 timing/level config, +60..+68 trigger writes (Rest, Inhibit, Start/Stop tests, Reset Lamp Time), +69..+73 Store* R/W settings; ECGs of type 1 (Emergency) in this template fall back to the generic Fluorescent/LED script, so none of these are surfaced — dedicated EML template would be needed
  • H:SA+80..+93 LED Control Gear (Device Type 6) signals — Failure Status bitmask, Gear Type, Dimming Curve, Operating Modes, Reference Running, Current Protector, Fast Fade Time, Enable/Disable Current Protector, Select Dimming Curve, Store Fast Fade Time — Advanced LED diagnostics and tuning per DALI-2 Part 207; template uses only the common signals (0..28) so LED-specific bits are not exposed even though gateway supports them
  • 14000 + 640*LINE + 10*IDX + INSTANCE + 1280*SIG DALI Input Devices (Occupancy, Light sensors, Push buttons, Absolute inputs) — Gateway supports up to 64 DALI input devices per line (recommended 16 with push buttons) — occupancy (0/1/2/3), light level (lux), push-button event bitmask (press/release/short/double/long), absolute input (0–100 % / raw); template exposes NO input devices. Local management (gateway directly drives ECGs from push-button events) is also unused. This is the largest feature gap for IBOX-MBS-DALI integrations that use DALI-native sensors
  • H:SA+29 (Add to DALI Group), H:SA+30 (Remove from DALI Group) Add/Remove DALI Group (per ECG) — Firmware-drift deprecation: the r1.5 manual (May 2024) marks signals 29–30 as 'Not used' in the common-signals table, but the TapHome template still exposes them as per-ECG service actions ('Add to DALI Group' / 'Remove from DALI Group') because they were functional on earlier firmware where this template was authored. Behavior on latest firmware should be verified before relying on group-membership-at-runtime writes; configure groups via Intesis MAPS commissioning instead for stable deployments

Parametre importu

Tieto hodnoty zadáte pri importe XML.

Pýta sa v aplikáciiPredvolené
Slave Id1
IP address192.168.1.0

Zdroje

Dokumenty výrobcov sú © ich príslušných vlastníkov. Poskytujeme ich tak, ako ich zverejnil výrobca, len na informačné účely.

Súvisiaca dokumentácia

Riešenie problémov

Časté problémy súvisiace s touto témou:

Zobraziť všetky články riešenia problémov →

Našli ste problém s touto šablónou zariadenia?

Napíšte nám, čo nefunguje, čo chýba, alebo ako by sa mala šablóna správať. Vaša spätná väzba nám pomáha udržiavať katalóg presný.

Šablóna · portál TapHome Intesis IBOX-MBS-DALI Otvorte túto šablónu v Customer Portali a aplikujte ju na svoj domov, alebo navrhnite zmenu a odošlite ju späť do katalógu. Modbus RTU Zobraziť v portáli TapHome
