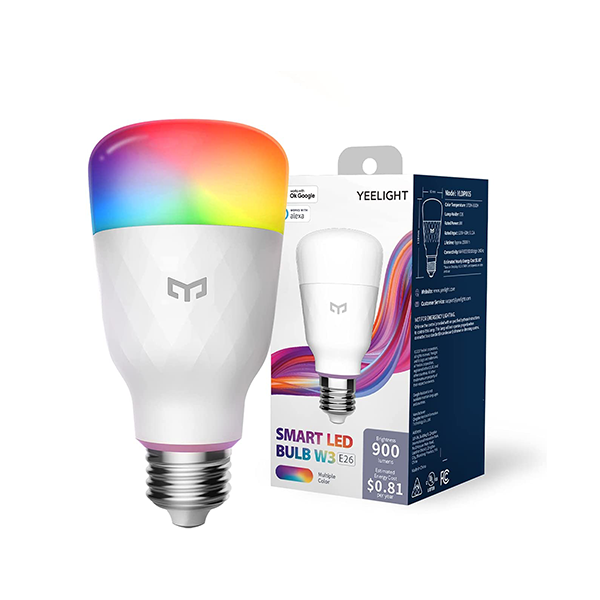

Yeelight Color

Packet Parser → TCP

Submitted by

Last updated: 06. 2026

The Yeelight Color template extends the dimmer-only Yeelight template with full HSB color control and tunable white (color temperature). It targets the same family of Wi-Fi smart LEDs — color bulbs, strips and ceiling lights — using the identical Yeelight Inter-Operation Protocol on TCP port 55443. The key difference is the device model: instead of a simple dimmer the template exposes a PacketParserHSBLight, which gives TapHome native hue, saturation, brightness and color temperature properties in one device.

TapHome communicates with the bulb directly on the local network over JSON-RPC — no cloud connection is required once LAN Control is enabled on the bulb. The template polls all six color properties at once and reacts to props notifications pushed by the bulb, so changes made from the Yeelight app or another controller appear in TapHome almost immediately.

Hardware connection

Yeelight bulbs are powered from the standard mains (typically E27, E14, GU10 or 24 V strip power supply depending on product). No wiring is needed between TapHome and the bulb — all communication goes over Wi-Fi. The bulb must be on the same LAN / VLAN as the TapHome CCU, because the JSON-RPC protocol has no authentication and no encryption, and the traffic is never routed through the Yeelight cloud.

The Yeelight LAN protocol is unencrypted. Do not expose TCP port 55443 to the public internet, and place the bulbs on a trusted network segment — anyone with access to the LAN can issue commands to the bulb.

Configuration

Enabling LAN Control

LAN Control (also called Developer Mode in some regions) is disabled on the bulb by default. Without it, TCP connections on port 55443 are refused.

Open the Yeelight mobile app and pair the bulb to the local Wi-Fi network with the SmartConfig / QuickConnect procedure if it has not been paired yet.
Select the target bulb in the app.
Tap the settings icon (top-right) and open LAN Control (in some firmware versions labelled Developer Mode).
Toggle LAN Control to ON.
Note the bulb’s IP address — it is shown in the Yeelight app device info or can be read from the router’s DHCP lease table.

Once LAN Control is enabled, the bulb listens on TCP port 55443 and periodically advertises itself over UDP multicast 239.255.255.250:1982.

Network configuration

IP address — the TapHome template does not auto-discover bulbs. Assign a static IP or a DHCP reservation in the router so the bulb’s address does not change after a lease renewal.
Same LAN segment — the TapHome CCU and the bulb must be in the same broadcast domain. If Wi-Fi and wired clients are on separate VLANs, add a firewall rule that allows TCP 55443 between them.

Import parameters

During template import in TapHome the user enters three values:

Parameter	Description	Default
`ipAddress`	IP address of the Yeelight bulb on the LAN	`192.168.0.1` (placeholder — replace with real IP)
`Port`	TCP control port on the bulb	`55443`
`Internal poll interval`	How often the template sends `get_prop` (in milliseconds)	`10000` (10 s)

The default port 55443 is the standard Yeelight LAN Control port and should not be changed unless the bulb has been configured for a non-standard port.

Between polls, the template also reacts to props notifications that the bulb pushes whenever its state changes. In practice this means color, brightness and on/off changes made from the Yeelight app, a wall switch adapter, or another controller appear in TapHome almost immediately, without waiting for the next poll.

Device capabilities

HSB color light (hue, saturation, brightness and on/off)

The template exposes a single HSB light device. On every poll cycle it sends a get_prop request for all six properties at once:

1
{"id":951,"method":"get_prop","params":["hue","sat","bright","power","ct","color_mode"]}

The listener script parses the response and maps it to native TapHome properties:

Hue (Hd) — result[0], integer 0–359 degrees
Saturation (Sa) — result[1], percent 0–100, divided by 100 to the TapHome 0.0–1.0 range
Brightness (Hb) — result[2], percent 1–100, divided by 100 to the TapHome 0.0–1.0 range
Power (St) — result[3], "on" mapped to 1, "off" mapped to 0 (brightness is also set to 0 when off)
Color temperature (Ct) — result[4], Kelvin value set only when color_mode = 2 (white mode); set to NaN otherwise
Color mode — result[5], determines whether Ct is written (1 = RGB, 2 = Temperature, 3 = HSV)

Color mode switching

The template uses the Ct property to determine the active color mode:

Ct = NaN — the bulb is in HSV color mode. Writes use set_hsv for hue and saturation.
Ct = number — the bulb is in white (color temperature) mode. Writes use set_ct_abx.

TapHome does not send an explicit mode-switch command. Instead, the user sets color temperature to a numeric value to enter white mode, or sets it to NaN (by choosing a color in the HSB picker) to enter HSV mode. The write scripts check Ct before sending and skip the irrelevant command — writesaturation returns immediately if Ct is not NaN, and writecct returns immediately if Ct is NaN.

Write commands

Three write scripts handle different aspects of the light:

Brightness / power (writebrightness) — if brightness > 0, sends set_power ["on","smooth",300] followed by set_bright [level,"smooth",300]. If brightness = 0, sends set_power ["off","smooth",300].
Hue and saturation (writesaturation) — sends set_power ["on","smooth",300] followed by set_hsv [hue, saturation,"smooth",300]. Only runs when Ct = NaN (HSV mode).
Color temperature (writecct) — sends set_power ["on","smooth",300] followed by set_ct_abx [ct,"smooth",300]. Only runs when Ct is a number (white mode). Valid range: 1700–6500 K (exact limits depend on the bulb model).

All writes use a 300 ms smooth transition for a soft fade instead of a hard step. A debounce variable is set to 1 after every write, causing the next poll cycle to be skipped — this avoids reading stale state while the bulb is transitioning.

Service diagnostics

Two module-level service attributes are read via a separate get_prop request (id=981):

Color mode — RGB, Temperature, or HSV, decoded from the numeric color_mode property (1 / 2 / 3) using a SWITCH expression in the module listener script.
Color temperature — Kelvin value reported as "{ct}K" (for example "4000K"). Only meaningful when the bulb is in Temperature mode.

These attributes are read-only diagnostics — the actual color temperature control happens through the device-level Ct property and the writecct script described above.

Troubleshooting

Bulb does not respond to commands

Verify LAN Control is enabled on the bulb (Yeelight app → bulb settings → LAN Control). Without it, the bulb refuses all TCP connections on port 55443.
Confirm the bulb IP in the Yeelight app or in the router’s DHCP lease table, and make sure it matches the ipAddress import parameter. Yeelight bulbs do not keep a fixed IP by default — the lease may have expired and the IP changed.
Assign a static IP or DHCP reservation to the bulb to prevent the address from drifting.
Check that the TapHome CCU and the bulb are on the same LAN / VLAN and that TCP 55443 is not blocked by a firewall between them.
Test connectivity manually: telnet {bulb-ip} 55443 and send a raw request followed by \r\n:
1
{"id":1,"method":"get_prop","params":["hue","sat","bright","power","ct","color_mode"]}
A valid bulb replies with {"id":1,"result":["<hue>","<sat>","<bright>","<power>","<ct>","<color_mode>"]}.

Color commands are ignored (hue/saturation not changing)

The writesaturation script checks Ct before sending set_hsv. If Ct is set to a numeric value (white mode), the script returns without sending any command. To control HSV color, set the color temperature to NaN first by selecting a color in the TapHome HSB picker.

Similarly, writecct returns without sending if Ct = NaN (HSV mode). To write a color temperature, the bulb must already be in white mode.

Read error: client quota exceeded

Each TCP connection to a Yeelight bulb is limited to 60 commands per minute, and the bulb accepts at most 4 concurrent connections in total. If another system polls the bulb at the same time — Home Assistant, a Yeelight cloud session, a custom script — the combined traffic can trigger rate-limit errors.

Disable or slow down other integrations that share the bulb.
Keep the TapHome poll interval at the default 10000 ms or higher. The color template sends one get_prop per poll plus up to three set_* writes per change, which stays well under the 60 cmd/min quota.
Close unused telnet debug sessions — they count against the 4-connection limit.

HueSat or Color temperature write error

The listener script tracks write errors separately for each command type — writeErrorBrightness for power/brightness writes, writeErrorHueSat for set_hsv writes, and writeErrorCt for set_ct_abx writes. If an error appears:

Confirm the bulb is powered on — all set_* commands except set_power are only accepted when the bulb is in the on state.
Verify the color temperature value is within the model-specific range (typically 1700–6500 K for color bulbs, 2700–6500 K for ceiling lights, 2700–6000 K for ceiling3).
Check the raw error message in the TapHome service diagnostics for the specific error code returned by the bulb.

Changes made in the Yeelight app are not reflected

The template reacts to props notifications pushed by the bulb, so external changes normally appear within a second. If they do not:

The notification may have arrived while the TCP socket was being re-established — the next poll (default 10 s) will resynchronize.
Some older firmware versions only push notifications when a command is actively sent. Upgrade the bulb firmware from the Yeelight app.
The bulb may have hit the 4-connection limit — reduce the number of concurrent clients on the LAN.

Yeelight devices support only 4 concurrent TCP connections and 60 commands per minute per connection. If TapHome and another system (e.g., Home Assistant) poll the same bulb simultaneously, communication may become unreliable. Use a poll interval of 10 seconds or higher.

Available devices

Yeelight color module Module

Service Attributes

Color mode	Current color mode of the bulb — RGB, Temperature or HSV — decoded from the color_mode property
Color temperature	Color temperature in Kelvin, reported only when the bulb is in Temperature mode (color_mode=2)

Yeelight color module

Listener

VAR jsonResponse := TOSTRING(RECEIVEDBYTES);
VAR id := PARSEJSON(jsonResponse, "id", 1);

IF(id = 981)
   VAR error := PARSEJSON(jsonResponse, "error.message", 1);

   IF(!ISNULL(error))
      COMPLETESERVICEATTRIBUTE("Color mode", "", "error");
      COMPLETESERVICEATTRIBUTE("Color temperature", "", "error");
   ELSE
      VAR colorMode := PARSEJSON(jsonResponse, "result[0]", 1);
      VAR colorTemp := PARSEJSON(jsonResponse, "result[1]", 1);

      IF(!ISNULL(colorMode))
         VAR colorModeValue := SWITCH(TODOUBLE(colorMode), 1, "RGB", 2, "Temperature", 3, "HSV", "Unknown");
         COMPLETESERVICEATTRIBUTE("Color mode", colorModeValue, "");
      ELSE
         COMPLETESERVICEATTRIBUTE("Color mode", "", "error");
      END

      IF(!ISNULL(colorTemp))
         COMPLETESERVICEATTRIBUTE("Color temperature", colorTemp + "K", "");
      ELSE
         COMPLETESERVICEATTRIBUTE("Color temperature", "", "error");
      END
   END
END

Service Attributes

Color mode

VAR json := "{\"id\":981, \"method\":\"get_prop\", \"params\":[\"color_mode\", \"ct\"]}";
SENDDATA(json);

RETURN(NULL);

Color temperature

HSB Light HSB Light

Full HSB color light with color temperature support — controls hue, saturation, brightness and on/off via set_hsv, set_ct_abx and set_bright with smooth transitions

numeric Unit: hue 0-359, sat/bright 0-100 %, CCT 2700-6500 K

HSB Light

Read (module)

IF(debounce > 0)
    debounce := 0;
ELSE
    VAR json := "{\"id\":951, \"method\":\"get_prop\", \"params\":[\"hue\", \"sat\", \"bright\", \"power\", \"ct\", \"color_mode\"]}";
    SENDDATA(json);
END

Listener

VAR jsonResponse := TOSTRING(RECEIVEDBYTES);
VAR method := PARSEJSON(jsonResponse, "method", 1);
VAR id := PARSEJSON(jsonResponse, "id", 1);
VAR error := PARSEJSON(jsonResponse, "error.message", 1);

#response to ReadScript
IF(id = 951)
   receiveError1 := error;

   IF(LENGTH(receiveError1) = 0)
      VAR hueStr := PARSEJSON(jsonResponse, "result[0]", 1);
      VAR satStr := PARSEJSON(jsonResponse, "result[1]", 1);
      VAR brightnessStr := PARSEJSON(jsonResponse, "result[2]", 1);
      VAR onOffStr := PARSEJSON(jsonResponse, "result[3]", 1);
      VAR ctStr := PARSEJSON(jsonResponse, "result[4]", 1);
      VAR colorModeStr := PARSEJSON(jsonResponse, "result[5]", 1);

      IF(!ISNULL(hueStr))
         Hd := TODOUBLE(hueStr);
      END

      IF(!ISNULL(satStr))
        Sa := TODOUBLE(satStr) / 100.0;
      END

      IF(!ISNULL(brightnessStr))
        Hb := TODOUBLE(brightnessStr) / 100.0;
      END

      VAR cm := TODOUBLE(colorModeStr);
      IF(!ISNULL(ctStr) AND cm = 2)
        Ct := TODOUBLE(ctStr);
      ELSE
        Ct := NaN;
      END

      IF(onOffStr = "on")
         St := 1;
      ELSEIF(onOffStr = "off")
         Hb := 0;
         St := 0;
      END
   END
ELSEIF(id = 952)
   receiveError2 := error;

   IF(LENGTH(receiveError2) = 0)
      brightnessStr := PARSEJSON(jsonResponse, "result[0]", 1);

      IF(!ISNULL(brightnessStr))
        Hb := TODOUBLE(brightnessStr) / 100.0;
      END
   END
END

IF(id >= 941 AND id <= 942)
   writeErrorBrightness := error;
ELSEIF(id = 943)
   writeErrorHueSat := error;
ELSEIF(id = 944)
   writeErrorCt := error;
END

#general notification
IF(method = "props")
   notificationError := error;

   IF(LENGTH(notificationError) = 0)
      VAR brightJson := PARSEJSON(jsonResponse, "params.bright", 1);
      VAR onOffJson := PARSEJSON(jsonResponse, "params.power", 1);
      VAR hue := PARSEJSON(jsonResponse, "params.hue", 1);
      VAR sat := PARSEJSON(jsonResponse, "params.sat", 1);
      VAR colorMode := PARSEJSON(jsonResponse, "params.color_mode", 1);
      VAR ctJson := PARSEJSON(jsonResponse, "params.ct", 1);

      IF(!ISNULL(brightJson))
         Hb := brightJson / 100.0;
      END

      IF(!ISNULL(hue))
         Hd := hue;
         Ct := NaN;
      END

      IF(!ISNULL(sat))
        Sa := sat / 100;
        Ct := NaN;
      END

      IF(!ISNULL(ctJson))
        Ct := ctJson;
      END

      IF(onOffJson = "on")
         St := 1;
         IF(ISNULL(brightJson))
            SENDDATA("{\"id\":952, \"method\":\"get_prop\", \"params\":[\"bright\"]}");
         END
      ELSEIF(onOffJson = "off")
         Hb := 0;
         St := 0;
      END
   END
END

IF(LENGTH(receiveError1) > 0)
   ADDERROR(951, "Read error: " + receiveError1);
END

IF(LENGTH(receiveError2) > 0)
   ADDERROR(952, "Read error: " + receiveError2);
END

IF(LENGTH(writeErrorBrightness) > 0)
   ADDERROR(941, "Brightness write error: " + writeErrorBrightness);
END

IF(LENGTH(writeErrorHueSat) > 0)
   ADDERROR(943, "HueSat write error: " + writeErrorHueSat);
END

IF(LENGTH(writeErrorCt) > 0)
   ADDERROR(944, "Color temperature write error: " + writeErrorCt);
END

IF(LENGTH(notificationError) > 0)
   ADDERROR(1, notificationError);
END

Write brightness

IF(Hb > 0)
    VAR jsonBrightness := "{\"id\":941,\"method\":\"set_power\",\"params\":[\"on\", \"smooth\", 300]}\r\n{\"id\":942,\"method\":\"set_bright\",\"params\":[" + ROUND(Hb*100) + ",\"smooth\", 300]}";
    SENDDATA(jsonBrightness);
ELSE
    VAR jsonPowerOff := "{\"id\":942,\"method\":\"set_power\",\"params\":[\"off\", \"smooth\", 300]}";
    SENDDATA(jsonPowerOff);
END

debounce := 1;

Write saturation

#do not send HUESAT when COLOR mode is active
IF !ISNAN(Ct)
    RETURN(0);
END

VAR hueSatJson := "{\"id\":941,\"method\":\"set_power\",\"params\":[\"on\", \"smooth\", 300]}\r\n{\"id\":943,\"method\":\"set_hsv\",\"params\":[" + ROUND(MOD(Hd, 360)) + ", " + ROUND(Sa*100) + ", \"smooth\", 300]}";

SENDDATA(hueSatJson);
debounce := 1;

Write color temperature

#do not set CT in COLOR mode
IF ISNAN(Ct)
    RETURN(0);
END

VAR ctJson := "{\"id\":941,\"method\":\"set_power\",\"params\":[\"on\", \"smooth\", 300]}\r\n{\"id\":944,\"method\":\"set_ct_abx\",\"params\":[" + Ct + ", \"smooth\", 300]}";
SENDDATA(ctJson);

debounce := 1;

Connection: Packet Parser → TCP

Possible improvements (12)

Set RGB color — Write full RGB color (0-16777215). Template uses set_hsv instead, which maps naturally to the HSBLight device model.
Color flow — Scripted sequences of brightness / color / CT changes (sunrise effect, strobe, ambient cycles). Not exposed by this template.
Set scene — Jump directly to a predefined state (color, hsv, ct, cf, auto_delay_off). Not exposed by this template.
Toggle power — Single-parameter power toggle. Not exposed — TapHome writes explicit on/off via set_power instead.
Sleep timer (cron) — On-device auto-off timer in minutes. Not exposed — TapHome uses its own Smart Rules for scheduling instead.
Music mode — Reverse-TCP channel bypassing the 60 cmd/min rate limit. Not used by TapHome.
Relative adjustments — Relative +/- changes without knowing the current value. Not exposed — TapHome always writes absolute values.
Save current state as power-on default — Persist current brightness/color to flash so it survives a hard power cut. Not exposed by this template.
Set device name — Set device name (max 64 bytes). Not exposed by this template.
Background light control — Secondary light channel on dual-light fixtures (e.g., some ceiling lights). Not exposed by this template.
Extended notification properties — Additional properties pushed via props notifications. Template consumes hue, sat, bright, power, color_mode and ct — remaining properties (rgb, flowing, delayoff, music_on, name) are ignored.
LAN auto-discovery — User must enter the bulb IP manually during import — template does not perform SSDP discovery. A static DHCP lease is strongly recommended.

Download Template

Sources

Yeelight WiFi Light Inter-Operation Specification
www.yeelight.com 2026-04-15
Yeelight Developer — Third-party Control Protocol
www.yeelight.com 2026-04-15
python-yeelight library documentation
yeelight.readthedocs.io 2026-04-15

Found a problem with this device template?

Tell us what's wrong, what's missing, or how the template should behave. We rely on your feedback to keep the catalog accurate.

Verified by TapHome

Want to use this in your TapHome Core?

Open this template in the Customer Portal to apply it to one of your homes, or to draft a refinement and submit it back to the catalog.

Open in portal
