Shelly Pro 3

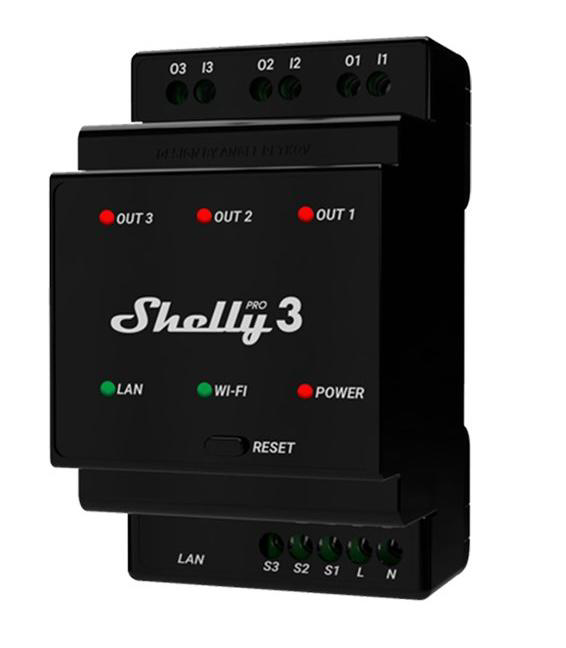

The Shelly Pro 3 is a DIN rail mountable 3-channel relay module with potential-free contacts. Each of the three independent outputs can switch up to 16 A (total 48 A across all channels), making it suitable for controlling lighting circuits, heating elements, or three-phase loads where each phase is switched separately. TapHome communicates with the device over HTTP using the Gen2 JSON-RPC 2.0 API on the local network — no cloud connection is required.

Unlike the Shelly Pro 3EM, which is an energy meter (monitoring only), the Pro 3 is a pure relay switching device with no power metering capability. The device connects via WiFi, Ethernet (RJ45), or Bluetooth and is designed for professional installation in electrical distribution boards.

Configuration

The Shelly Pro 3 connects over WiFi or Ethernet. During TapHome template import, enter the device’s IP address (default placeholder 192.168.0.1).

Authentication must be disabled on the Shelly device for TapHome integration. TapHome does not support HTTP Digest Auth used by Gen2 devices. Open the Shelly web UI (http://{device-ip}) → Settings → Authentication and ensure it is turned off.

The LAN cable must only be plugged in or unplugged when the device is powered off. Hot-plugging the Ethernet cable may cause issues.

If ECO mode is enabled on the Shelly device, it may cause communication timeouts due to the fast poll intervals used by the template (2.5–3 seconds). Disable ECO mode in the Shelly web UI if you experience intermittent connectivity issues.

Device capabilities

Relay control

The template exposes three independent switch devices, one for each relay channel. Each relay state is read from the /rpc/Switch.GetStatus?id=N response (output field, boolean) and controlled via /rpc/Switch.Set?id=N&on=true or on=false, where N is 0, 1, or 2.

All three channels operate independently — they can be on different circuits, different AC phases, or even mixed AC/DC loads. The relay contacts are potential-free (dry contacts), so each output can switch a completely separate circuit from the power supply feeding the device itself.

Service diagnostics

The template exposes module-level service attributes for device monitoring:

  • WiFi — connected SSID name
  • IP address — current station IP
  • Signal strength — WiFi RSSI in dB
  • MAC — device MAC address

The module read script also checks for available firmware updates and pending restart requirements, surfacing these as warnings in the TapHome interface.

Service actions

Two service actions are available at the module level:

  • Update firmware — triggers a firmware update to the latest stable release via /rpc/Shelly.Update
  • Reboot — triggers a device reboot via /rpc/Shelly.Reboot
Additional capabilities

The Shelly Pro 3 also exposes physical switch/button input states (S1, S2, S3) via the Input component, internal device temperature, device uptime, RAM usage, device time, and Ethernet status via the RPC API. An auto-off timer is available through the toggle_after parameter on the Switch.Set command. These capabilities can be added in a future template update.

Troubleshooting

Device not responding
  1. Verify the Shelly is connected to WiFi or Ethernet and has a valid IP address
  2. Try using the mDNS hostname (ShellyPro3-AABBCCDDEE.local) instead of the IP address — the IP may have changed after a DHCP renewal
  3. Open http://{device-ip}/rpc/Shelly.GetDeviceInfo in a browser — if it responds with JSON, the device is reachable
  4. Check that TapHome Core and Shelly are on the same network / VLAN
  5. Confirm authentication is disabled on the Shelly device
Only some channels responding
  1. Verify each channel is correctly addressed (id=0 for Output 1, id=1 for Output 2, id=2 for Output 3)
  2. Check the relay LED indicators on the device front panel — red LED means the corresponding relay is closed (ON)
  3. Test the unresponsive channel manually via browser: http://{device-ip}/rpc/Switch.Set?id=N&on=true
Inductive load issues

For inductive loads (fans, transformers, LED drivers), an RC snubber (0.1 uF / 100 Ohm / 1/2 W / 600 VAC) is recommended on the relay output to protect against voltage spikes and extend relay lifetime.

Gen2 Shelly devices support up to 6 concurrent HTTP connections. Avoid polling from too many systems simultaneously (TapHome, Home Assistant, custom scripts) to prevent connection exhaustion.

How to install in TapHome

Prerequisites

  • Shelly device installed and powered on
  • Local Wi-Fi network (2.4 GHz)
  • TapHome CCU on the same network

Step 1 — Connect Shelly to Wi-Fi

Option A — Shelly app (recommended):

  1. Download the Shelly app (iOS / Android)
  2. Tap + → Add Device and follow the Bluetooth pairing wizard
  3. Enter your Wi-Fi credentials when prompted

Option B — AP mode (no app):

  1. On first power-up the device creates a hotspot: ShellyXXX-AABBCCDDEE
  2. Connect your phone/PC to that hotspot
  3. Open http://192.168.33.1 → Internet & Security → Wi-Fi Mode - Client
  4. Enter SSID and password → Save

Shelly only supports 2.4 GHz networks. 5 GHz networks will not appear in the scan.

Step 2 — Find the device address

Shelly Gen1 devices support mDNS (Zeroconf). You can reach the device using a hostname instead of an IP address:

1

shelly<model>-<MAC>.local

For example: shelly1pm-AABBCCDDEE.local (MAC address in uppercase hex, no colons).

Recommended: use the TapHome IP Scanner. Open the TapHome app and use the IP Scanner (Settings → Network → Scan). The scanner will discover devices on your network and show both the IP address and the mDNS hostname. Use the hostname instead of the IP address for a more reliable connection — it stays the same even if the device’s IP changes after a router reboot.

Alternative methods to find the IP address:

  • Shelly app: Device detail → Device info → IP address
  • Shelly web UI: Connect to the device AP before Wi-Fi setup — the IP is shown after saving
  • Router DHCP table: Look for a hostname like shelly1pm-AABBCCDDEE

Step 3 — Configure in TapHome

  1. In TapHome, add a new Packet Parser (HTTP) module
  2. Address: enter the mDNS hostname (e.g., shelly1pm-AABBCCDDEE.local) or IP address from Step 2
  3. Port: 80 (default, no change needed)
  4. Import the template — TapHome will poll /status to read device state

HTTP authentication is disabled by default on Shelly devices. If you have enabled login protection, TapHome does not support HTTP Basic Auth at this time — keep auth disabled for TapHome integration.

Available devices

Shelly Pro 3 Module
Service Attributes
WiFi
IP address
Signal strength
MAC
Service Actions
Update firmware
Reboot
Custom Variables

Shelly Pro 3

Read (module)
VAR response := SENDHTTPREQUEST("/rpc/Sys.GetStatus");
IF response.IsSuccess
    Sys.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/Sys.GetConfig");
IF response.IsSuccess
    Sys.GetConfig := response.Content;
END

response := SENDHTTPREQUEST("/rpc/WiFi.GetStatus");
IF response.IsSuccess
    WiFi.GetStatus := response.Content;
END

if ! ISNULL(parsejson(Sys.GetStatus, "available_updates.stable", true))
    addwarning("New firmware update is available");
end

if parsejson(Sys.GetStatus, "restart_required", true)
    addwarning("Restart required");
end
Service Attributes
Wifi
PARSEJSON(WiFi.GetStatus, "ssid")
${ipAddress}
PARSEJSON(WiFi.GetStatus, "sta_ip")
${xml_signal_strength} [dB]
PARSEJSON(WiFi.GetStatus, "rssi")
MAC
PARSEJSON(Sys.GetStatus, "mac")
Service Actions
${xml_update_fw}
VAR response := SENDHTTPREQUEST("/rpc/Shelly.Update?stage=\"stable\"");
IF response.IsSuccess
    return("OK");
else
    return("Error");
END
Reboot
VAR response := SENDHTTPREQUEST("/rpc/Shelly.Reboot");
IF response.IsSuccess
    return("OK");
else
    return("Error");
END
Switch 1 Switch
boolean
Values / States: ON · OFF

Switch 1

Read switch state
VAR response := SENDHTTPREQUEST("/rpc/Switch.GetStatus?id=" + id);
IF response.IsSuccess
    Switch.GetStatus := response.Content;
END
return(parsejson(Switch.GetStatus, "output"));
Write switch state
VAR path := "/rpc/Switch.Set?id=" + id + "&on=" + SWITCH(St, 1, "true", "false");
SENDHTTPREQUEST(path);
Switch 2 Switch
boolean
Values / States: ON · OFF

Switch 2

Read switch state
VAR response := SENDHTTPREQUEST("/rpc/Switch.GetStatus?id=" + id);
IF response.IsSuccess
    Switch.GetStatus := response.Content;
END
return(parsejson(Switch.GetStatus, "output"));
Write switch state
VAR path := "/rpc/Switch.Set?id=" + id + "&on=" + SWITCH(St, 1, "true", "false");
SENDHTTPREQUEST(path);
Switch 3 Switch
boolean
Values / States: ON · OFF

Switch 3

Read switch state
VAR response := SENDHTTPREQUEST("/rpc/Switch.GetStatus?id=" + id);
IF response.IsSuccess
    Switch.GetStatus := response.Content;
END
return(parsejson(Switch.GetStatus, "output"));
Write switch state
VAR path := "/rpc/Switch.Set?id=" + id + "&on=" + SWITCH(St, 1, "true", "false");
SENDHTTPREQUEST(path);
Connection: Packet Parser → HTTP
Possible improvements (9)
  • Input 1 State — Physical switch/button input S1 state, available via /rpc/Input.GetStatus?id=0
  • Input 2 State — Physical switch/button input S2 state, available via /rpc/Input.GetStatus?id=1
  • Input 3 State — Physical switch/button input S3 state, available via /rpc/Input.GetStatus?id=2
  • Device Temperature — Internal temperature in °C, available in Switch.GetStatus response (non-metered devices may still report temperature)
  • Uptime — Seconds since last reboot, available in Sys.GetStatus response
  • RAM Usage — Total and free RAM in bytes, available in Sys.GetStatus response
  • Device Time — Current device time in HH:MM format, available in Sys.GetStatus response
  • Auto-off Timer — Auto-reset timer in seconds via toggle_after parameter, could be added as switch parameter for all 3 channels
  • Ethernet Status — Pro 3 has RJ45 LAN port; Ethernet status (IP, link) available via /rpc/Ethernet.GetStatus
