Shelly Plus RGBW PM

Packet Parser → HTTP

Submitted by

Last updated: 03. 2026

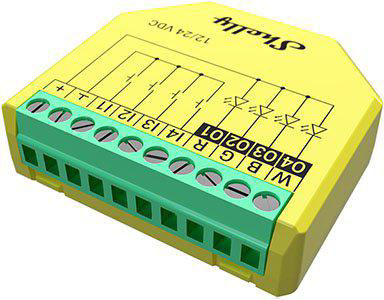

The Shelly Plus RGBW PM is a Gen2+ Wi-Fi RGBW LED controller with built-in power metering on every output channel. It drives LED strips or individual LED channels at 12/24 VDC with up to 4 x 4.5 A per channel (18 A total). The device supports three switchable profiles — light (4 independent dimmers), rgb (3-channel color), and rgbw (3-channel color + white) — each exposing different devices in TapHome. TapHome communicates with the device locally over Wi-Fi using the Gen2+ RPC API — no cloud connection is required.

The TapHome template is an HTTP template that polls the device’s RPC endpoints. A single template handles all three profiles; TapHome detects the active profile at runtime and activates the corresponding devices.

Configuration

Import parameters

The template requires only the device’s IP address (default placeholder 192.168.0.1). TapHome connects to port 80 and polls multiple RPC endpoints for system state and device data.

At the module level, TapHome polls /rpc/Sys.GetStatus, /rpc/Sys.GetConfig, /rpc/WiFi.GetStatus, and /rpc/PlusRGBWPM.GetConfig at a 3-second interval. The Sys.GetConfig response provides the current profile (device.profile) which determines which device-level endpoints are active.

Profile selection

The Shelly Plus RGBW PM operates in one of three profiles at a time. You can switch profiles directly from TapHome using the Set Profile service action on the module, or from the Shelly web UI.

Profile	Devices in TapHome	Use case
light	4 independent dimmers (O1–O4)	Single-color LED strips, 4 separate lighting zones
rgb	1 RGB light	RGB LED strips (3-channel color mixing)
rgbw	1 RGBW light	RGBW LED strips (RGB + dedicated white channel)

After switching the profile, the device reboots and TapHome automatically detects the new profile. Devices belonging to the inactive profile will report an error (“Profile is not set to …”) — this is expected and can be ignored.

Device capabilities

RGB Light (profile = rgb)

When the device is set to the rgb profile, TapHome exposes a single HSB Light device. The template reads /rpc/RGB.GetStatus?id=0 for on/off state, brightness (0–100%), and RGB color values, and writes via /rpc/RGB.Set?id=0 to control the light.

Color control uses HSB (Hue-Saturation-Brightness):

Hue (0–360 degrees) and Saturation (0.0–1.0) are converted between HSB and RGB internally
Brightness (0.0–1.0) maps to the Shelly’s 0–100% range
Setting brightness to 0 turns the light off; any non-zero brightness turns it on

The RGB light exposes five service attributes:

Attribute	Unit	Description
Temperature	C	Internal device temperature
Energy consumption	Wh	Cumulative energy for the RGB output
Power	W	Instantaneous power draw
Voltage	V	RMS voltage
Current	A	Current draw

RGBW Light (profile = rgbw)

When set to the rgbw profile, TapHome exposes a single HSB Light with an additional white channel. The template reads /rpc/RGBW.GetStatus?id=0 and writes via /rpc/RGBW.Set?id=0.

The RGBW profile adds a white channel (0–255) controlled via CCT (Correlated Color Temperature) at a fixed 4500 K:

When the white channel is active (white != 0), brightness is derived from the white level (linear 0–255 mapped to 0.0–1.0)
When the white channel is inactive, brightness comes from the standard brightness field (0–100%)
Switching to color temperature mode in TapHome activates the white channel; switching to RGB mode deactivates it

The RGBW light exposes the same five service attributes as the RGB light (temperature, energy, power, voltage, current), reading from the RGBW.GetStatus response.

Dimmable LED Outputs (profile = light)

When set to the light profile, TapHome exposes 4 independent dimmer channels (O1–O4), each controlling one LED output. Each channel reads from /rpc/Light.GetStatus?id={0-3} and writes via /rpc/Light.Set?id={0-3}.

Brightness is mapped from TapHome’s 0.0–1.0 range to the Shelly’s 0–100% range. Setting the level to 0 turns the output off; any non-zero level turns it on and sets the brightness.

Each dimmer channel exposes six service attributes:

Attribute	Unit	Description
Temperature	C	Internal device temperature
Energy consumption	Wh	Cumulative energy for this channel
Power	W	Instantaneous power draw
Voltage	V	RMS voltage
Current	A	Current draw
Flags	—	Internal status flags

Each dimmer channel also exposes a Calibrate service action that sends /rpc/Light.Calibrate?id={N} to calibrate the output for the connected LED load.

Module diagnostics and actions

The module exposes five service attributes for device diagnostics:

Attribute	Description
WiFi SSID	Connected wireless network name
IP Address	Device IP address
Signal Strength (dB)	WiFi RSSI
MAC Address	Device hardware address
Profile	Currently active profile (light, rgb, or rgbw)

Three service actions are available at the module level:

Action	Description
Firmware Update	Triggers OTA update to the stable firmware channel
Reboot	Restarts the device
Set Profile	Switches between light, rgb, and rgbw profiles (device reboots)

The module script also checks for available firmware updates and pending reboot requirements, displaying warnings in TapHome when either condition is detected.

Additional capabilities

The Shelly Plus RGBW PM also exposes physical input state, night mode configuration with brightness limits and schedule, transition duration for color/brightness changes, and minimum brightness on toggle through its RPC API. These capabilities can be added in a future template update.

Troubleshooting

Device not responding

Verify the Shelly is connected to Wi-Fi and has a valid IP address
Try using the mDNS hostname (shellyplusrgbwpm-AABBCCDDEE.local) instead of the IP address — the IP may have changed after a DHCP renewal
Open http://{device-ip}/rpc/Shelly.GetDeviceInfo in a browser — if it responds with JSON, the device is reachable
Check that TapHome CCU and Shelly are on the same network / VLAN
Ensure HTTP Digest Authentication is disabled in the Shelly web UI — TapHome does not support authenticated requests

Profile error on devices

If a device shows “Profile is not set to rgb/rgbw/light” — this is expected. The template contains devices for all three profiles, but only the devices matching the currently active profile will function. The other devices will report this error and can be ignored.

To switch the active profile, use the Set Profile service action on the module or change it in the Shelly web UI. The device will reboot and TapHome will detect the new profile within one poll cycle.

Colors appear incorrect in RGB/RGBW mode

Verify the LED strip wiring matches the output terminal order (R, G, B, W) — swapped wires produce wrong colors
The template converts between HSB and RGB color spaces internally. If colors appear washed out, check the saturation value — low saturation produces pastel tones
In RGBW mode, the white channel and RGB channels are controlled independently. When switching from white to color or vice versa, TapHome sends the appropriate command to zero out the other mode

Dimmer outputs not responding in light mode

Confirm the profile is set to light — dimmer devices only work in light mode
Check that each channel has an LED load connected — unloaded channels may not report correct status
Try running the Calibrate action on the channel — this optimizes the dimming curve for the connected LED load
Gen2+ devices support up to 6 concurrent HTTP connections — avoid polling from multiple systems simultaneously

Power readings show zero

Confirm the LED load is connected and the channel is turned on
Poll the appropriate endpoint manually (/rpc/Light.GetStatus?id=0, /rpc/RGB.GetStatus?id=0, or /rpc/RGBW.GetStatus?id=0) and verify apower returns a non-zero value
Very low-power LED loads may report 0 W due to metering resolution — this is normal for small indicator LEDs

How to install in TapHome

Prerequisites

Shelly device installed and powered on
Local Wi-Fi network (2.4 GHz)
TapHome CCU on the same network

Step 1 — Connect Shelly to Wi-Fi

Option A — Shelly app (recommended):

Download the Shelly app (iOS / Android)
Tap + → Add Device and follow the Bluetooth pairing wizard
Enter your Wi-Fi credentials when prompted

Option B — AP mode (no app):

On first power-up the device creates a hotspot: ShellyXXX-AABBCCDDEE
Connect your phone/PC to that hotspot
Open http://192.168.33.1 → Internet & Security → Wi-Fi Mode - Client
Enter SSID and password → Save

Shelly only supports 2.4 GHz networks. 5 GHz networks will not appear in the scan.

Step 2 — Find the device address

Shelly Gen1 devices support mDNS (Zeroconf). You can reach the device using a hostname instead of an IP address:

1
shelly<model>-<MAC>.local

For example: shelly1pm-AABBCCDDEE.local (MAC address in uppercase hex, no colons).

Recommended: use the TapHome IP Scanner. Open the TapHome app and use the IP Scanner (Settings → Network → Scan). The scanner will discover devices on your network and show both the IP address and the mDNS hostname. Use the hostname instead of the IP address for a more reliable connection — it stays the same even if the device’s IP changes after a router reboot.

Alternative methods to find the IP address:

Shelly app: Device detail → Device info → IP address
Shelly web UI: Connect to the device AP before Wi-Fi setup — the IP is shown after saving
Router DHCP table: Look for a hostname like shelly1pm-AABBCCDDEE

Step 3 — Configure in TapHome

In TapHome, add a new Packet Parser (HTTP) module
Address: enter the mDNS hostname (e.g., shelly1pm-AABBCCDDEE.local) or IP address from Step 2
Port: 80 (default, no change needed)
Import the template — TapHome will poll /status to read device state

HTTP authentication is disabled by default on Shelly devices. If you have enabled login protection, TapHome does not support HTTP Basic Auth at this time — keep auth disabled for TapHome integration.

Available devices

Shelly Plus RGBW PM Module

Service Attributes

WiFi

IP address

Signal strength

MAC

Profile

Service Actions

Update firmware

Reboot

Set Profile

Custom Variables

Shelly Plus RGBW PM

Read (module)

VAR response := SENDHTTPREQUEST("/rpc/Sys.GetStatus");
IF response.IsSuccess
    Sys.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/Sys.GetConfig");
IF response.IsSuccess
    Sys.GetConfig := response.Content;
END

response := SENDHTTPREQUEST("/rpc/WiFi.GetStatus");
IF response.IsSuccess
    WiFi.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/PlusRGBWPM.GetConfig");
IF response.IsSuccess
    PlusRGBWPM.GetConfig := response.Content;
END

if ! ISNULL(parsejson(Sys.GetStatus, "available_updates.stable", true))
    addwarning("New firmware update is available");
end

if parsejson(Sys.GetStatus, "restart_required", true)
    addwarning("Restart required");
end

Service Attributes

Wifi

PARSEJSON(WiFi.GetStatus, "ssid")

${ipAddress}

PARSEJSON(WiFi.GetStatus, "sta_ip")

${xml_signal_strength} [dB]

PARSEJSON(WiFi.GetStatus, "rssi")

MAC

PARSEJSON(Sys.GetStatus, "mac")

Profile

PARSEJSON(Sys.GetConfig, "$.device.profile");

Service Actions

${xml_update_fw}

VAR response := SENDHTTPREQUEST("/rpc/Shelly.Update?stage=\"stable\"");
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

${restart}

VAR response := SENDHTTPREQUEST("/rpc/Shelly.Reboot");
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

Set Profile

Parameters: Profile

VAR response := SENDHTTPREQUEST("/rpc/Shelly.SetProfile?name=\"" +
switch(prof,
0, "light",
1, "rgb",
2, "rgbw",
"")
+ "\"");
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

RGB Light HSB Light

HSB color light (rgb profile) with brightness, hue, saturation control and per-channel power metering

HSB

Service Attributes

Temperature

Energy Consumption

Power

Voltage

Current

RGB Light

Read (module)

if PARSEJSON(Sys.GetConfig, "$.device.profile") != "rgb"
	adderror("Profile is not set to rgb (" + PARSEJSON(Sys.GetConfig, "$.device.profile") + ")");
end

VAR response := SENDHTTPREQUEST("/rpc/RGB.GetStatus?id=" + ID);
IF response.IsSuccess
    RGB.GetStatus := response.Content;
	R := PARSEJSON(RGB.GetStatus, "$.rgb[0]", true);
	G := PARSEJSON(RGB.GetStatus, "$.rgb[1]", true);
	B := PARSEJSON(RGB.GetStatus, "$.rgb[2]", true);
END

response := SENDHTTPREQUEST("/rpc/RGB.GetConfig?id=" + ID);
IF response.IsSuccess
    RGB.GetConfig := response.Content;
END

if ! ISNULL(parsejson(RGB.GetStatus, "errors", true))
    adderror("Error: " + parsejson(RGB.GetStatus, "errors"));
end

Read brightness

bool output := PARSEJSON(RGB.GetStatus, "$.output", true);
var brightness := PARSEJSON(RGB.GetStatus, "$.brightness", true);

if output
    return(brightness / 100);
else
    return(0);
end

Write brightness

SENDHTTPREQUEST("/rpc/RGB.Set?id=" + ID + "&on=" + if(St, "true", "false") + "&brightness=" + round(Hb*100.0));

Read hue

VAR HSVColor := RGBTOHSV(R, G, B);
ROUND(HSVColor.Hue);

Write hue

VAR color := HSVTORGB(Hd, Sa, 1);
SENDHTTPREQUEST("/rpc/RGB.Set?id=" + ID + "&rgb=[" + color.RED + "," + color.GREEN + "," + color.BLUE + "]");

Read saturation

VAR HSVColor := RGBTOHSV(R, G, B);
ROUND(HSVColor.Saturation * 100.0) / 100.0;

Write saturation

VAR color := HSVTORGB(Hd, Sa, 1);
SENDHTTPREQUEST("/rpc/RGB.Set?id=" + ID + "&rgb=[" + color.RED + "," + color.GREEN + "," + color.BLUE + "]");

Service Attributes

${device_variable_realtemperature} [°C]

parsejson(RGB.GetStatus, "$.temperature.tC", true)

${device_variable_electricityconsumption} [Wh]

parsejson(RGB.GetStatus, "$.aenergy.total", true)

${device_variable_electricitydemand} [W]

parsejson(RGB.GetStatus, "$.apower", true)

${valueLogType_ElectricVoltage} [V]

parsejson(RGB.GetStatus, "$.voltage", true)

${valueLogType_ElectricCurrent} [A]

parsejson(RGB.GetStatus, "$.current", true)

RGBW Light HSB Light

HSB color+white light (rgbw profile) with RGB, white channel (CCT at 4500K), and per-channel power metering

HSB

Service Attributes

Temperature

Energy Consumption

Power

Voltage

Current

RGBW Light

Read (module)

if PARSEJSON(Sys.GetConfig, "$.device.profile") != "rgbw"
	adderror("Profile is not set to rgbw (" + PARSEJSON(Sys.GetConfig, "$.device.profile") + ")");
end

VAR response := SENDHTTPREQUEST("/rpc/RGBW.GetStatus?id=" + ID);
IF response.IsSuccess
    RGBW.GetStatus := response.Content;
	R := PARSEJSON(RGBW.GetStatus, "$.rgb[0]", true);
	G := PARSEJSON(RGBW.GetStatus, "$.rgb[1]", true);
	B := PARSEJSON(RGBW.GetStatus, "$.rgb[2]", true);
END

response := SENDHTTPREQUEST("/rpc/RGBW.GetConfig?id=" + ID);
IF response.IsSuccess
    RGBW.GetConfig := response.Content;
END

if ! ISNULL(parsejson(RGBW.GetStatus, "errors", true))
    adderror("Error: " + parsejson(RGBW.GetStatus, "errors"));
end

Read brightness

bool output := PARSEJSON(RGBW.GetStatus, "$.output", true);
var brightness := PARSEJSON(RGBW.GetStatus, "$.brightness", true);
var white := PARSEJSON(RGBW.GetStatus, "$.white", true);

if output
	if white != 0
		return(linear(white, 0, 0, 255, 1));
	else
    	return(brightness / 100);
    end
else
    return(0);
end

Write brightness

if isnan(Ct)
	SENDHTTPREQUEST("/rpc/RGBW.Set?id=" + ID + "&on=" + if(St, "true", "false") + "&white=0&brightness=" + round(Hb*100.0));
else
	SENDHTTPREQUEST("/rpc/RGBW.Set?id=" + ID + "&on=" + if(St, "true", "false") + "&brightness=0&white=" + round(linear(Hb, 0, 0, 1, 255)));
end

Read hue

VAR HSVColor := RGBTOHSV(R, G, B);
ROUND(HSVColor.Hue);

Write hue

VAR color := HSVTORGB(Hd, Sa, 1);
SENDHTTPREQUEST("/rpc/RGBW.Set?id=" + ID + "&rgb=[" + color.RED + "," + color.GREEN + "," + color.BLUE + "]");

Read saturation

VAR HSVColor := RGBTOHSV(R, G, B);
ROUND(HSVColor.Saturation * 100.0) / 100.0;

Write saturation

VAR color := HSVTORGB(Hd, Sa, 1);
SENDHTTPREQUEST("/rpc/RGBW.Set?id=" + ID + "&rgb=[" + color.RED + "," + color.GREEN + "," + color.BLUE + "]");

Read color temperature

var white := PARSEJSON(RGBW.GetStatus, "$.white", true);
if white != 0 or !isnan(Ct)
	return(4500);
else
	return(NaN);
end

Write color temperature

IF !isnan(Ct)
	SENDHTTPREQUEST("/rpc/RGBW.Set?id=" + ID + "&on=" + if(St, "true", "false") + "&brightness=0&white=" + round(linear(Hb, 0, 0, 1, 255)));
end

Service Attributes

${device_variable_realtemperature} [°C]

parsejson(RGBW.GetStatus, "$.temperature.tC", true)

${device_variable_electricityconsumption} [Wh]

parsejson(RGBW.GetStatus, "$.aenergy.total", true)

${device_variable_electricitydemand} [W]

parsejson(RGBW.GetStatus, "$.apower", true)

${valueLogType_ElectricVoltage} [V]

parsejson(RGBW.GetStatus, "$.voltage", true)

${valueLogType_ElectricCurrent} [A]

parsejson(RGBW.GetStatus, "$.current", true)

Dimmable LED Output 2 Dimmer

Independent dimmer channel 2 (light profile, id=1) with brightness control, calibration, and per-channel power metering

numeric

Service Attributes

Temperature

Energy Consumption

Power

Voltage

Current

Flags

Service Actions

Calibration

Dimmable LED Output 2

Read (module)

if PARSEJSON(Sys.GetConfig, "$.device.profile") != "light"
	adderror("Profile is not set to light (" + PARSEJSON(Sys.GetConfig, "$.device.profile") + ")");
end

VAR response := SENDHTTPREQUEST("/rpc/Light.GetStatus?id=" + ID);
IF response.IsSuccess
    Light.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/Light.GetConfig?id=" + ID);
IF response.IsSuccess
    Light.GetConfig := response.Content;
END

if ! ISNULL(parsejson(Light.GetStatus, "errors", true))
    adderror("Error: " + parsejson(Light.GetStatus, "errors"));
end

Read level

bool output := PARSEJSON(Light.GetStatus, "$.output");
var brightness := PARSEJSON(Light.GetStatus, "$.brightness");

if output
    return(brightness / 100);
else
    return(0);
end

Write level

SENDHTTPREQUEST("/rpc/Light.Set?id=" + ID + "&on=" + if(St, "true", "false") + "&brightness=" + round(Le*100.0));

Service Attributes

${device_variable_realtemperature} [°C]

parsejson(Light.GetStatus, "$.temperature.tC", true)

${device_variable_electricityconsumption} [Wh]

parsejson(Light.GetStatus, "$.aenergy.total", true)

${device_variable_electricitydemand} [W]

parsejson(Light.GetStatus, "$.apower", true)

${valueLogType_ElectricVoltage} [V]

parsejson(Light.GetStatus, "$.voltage", true)

${valueLogType_ElectricCurrent} [A]

parsejson(Light.GetStatus, "$.current", true)

Flags

parsejson(Light.GetStatus, "$.flags", true)

Service Actions

${detail_deviceSettings_TemperatureSensor_categoryCalibration}

VAR response := SENDHTTPREQUEST("/rpc/Light.Calibrate?id=" + ID);
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

Dimmable LED Output 1 Dimmer

Independent dimmer channel 1 (light profile, id=0) with brightness control, calibration, and per-channel power metering

numeric

Service Attributes

Temperature

Energy Consumption

Power

Voltage

Current

Flags

Service Actions

Calibration

Dimmable LED Output 1

Read (module)

if PARSEJSON(Sys.GetConfig, "$.device.profile") != "light"
	adderror("Profile is not set to light (" + PARSEJSON(Sys.GetConfig, "$.device.profile") + ")");
end

VAR response := SENDHTTPREQUEST("/rpc/Light.GetStatus?id=" + ID);
IF response.IsSuccess
    Light.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/Light.GetConfig?id=" + ID);
IF response.IsSuccess
    Light.GetConfig := response.Content;
END

if ! ISNULL(parsejson(Light.GetStatus, "errors", true))
    adderror("Error: " + parsejson(Light.GetStatus, "errors"));
end

Read level

bool output := PARSEJSON(Light.GetStatus, "$.output");
var brightness := PARSEJSON(Light.GetStatus, "$.brightness");

if output
    return(brightness / 100);
else
    return(0);
end

Write level

SENDHTTPREQUEST("/rpc/Light.Set?id=" + ID + "&on=" + if(St, "true", "false") + "&brightness=" + round(Le*100.0));

Service Attributes

${device_variable_realtemperature} [°C]

parsejson(Light.GetStatus, "$.temperature.tC", true)

${device_variable_electricityconsumption} [Wh]

parsejson(Light.GetStatus, "$.aenergy.total", true)

${device_variable_electricitydemand} [W]

parsejson(Light.GetStatus, "$.apower", true)

${valueLogType_ElectricVoltage} [V]

parsejson(Light.GetStatus, "$.voltage", true)

${valueLogType_ElectricCurrent} [A]

parsejson(Light.GetStatus, "$.current", true)

Flags

parsejson(Light.GetStatus, "$.flags", true)

Service Actions

${detail_deviceSettings_TemperatureSensor_categoryCalibration}

VAR response := SENDHTTPREQUEST("/rpc/Light.Calibrate?id=" + ID);
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

Dimmable LED Output 3 Dimmer

Independent dimmer channel 3 (light profile, id=2) with brightness control, calibration, and per-channel power metering

numeric

Service Attributes

Temperature

Energy Consumption

Power

Voltage

Current

Flags

Service Actions

Calibration

Dimmable LED Output 3

Read (module)

if PARSEJSON(Sys.GetConfig, "$.device.profile") != "light"
	adderror("Profile is not set to light (" + PARSEJSON(Sys.GetConfig, "$.device.profile") + ")");
end

VAR response := SENDHTTPREQUEST("/rpc/Light.GetStatus?id=" + ID);
IF response.IsSuccess
    Light.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/Light.GetConfig?id=" + ID);
IF response.IsSuccess
    Light.GetConfig := response.Content;
END

if ! ISNULL(parsejson(Light.GetStatus, "errors", true))
    adderror("Error: " + parsejson(Light.GetStatus, "errors"));
end

Read level

bool output := PARSEJSON(Light.GetStatus, "$.output");
var brightness := PARSEJSON(Light.GetStatus, "$.brightness");

if output
    return(brightness / 100);
else
    return(0);
end

Write level

SENDHTTPREQUEST("/rpc/Light.Set?id=" + ID + "&on=" + if(St, "true", "false") + "&brightness=" + round(Le*100.0));

Service Attributes

${device_variable_realtemperature} [°C]

parsejson(Light.GetStatus, "$.temperature.tC", true)

${device_variable_electricityconsumption} [Wh]

parsejson(Light.GetStatus, "$.aenergy.total", true)

${device_variable_electricitydemand} [W]

parsejson(Light.GetStatus, "$.apower", true)

${valueLogType_ElectricVoltage} [V]

parsejson(Light.GetStatus, "$.voltage", true)

${valueLogType_ElectricCurrent} [A]

parsejson(Light.GetStatus, "$.current", true)

Flags

parsejson(Light.GetStatus, "$.flags", true)

Service Actions

${detail_deviceSettings_TemperatureSensor_categoryCalibration}

VAR response := SENDHTTPREQUEST("/rpc/Light.Calibrate?id=" + ID);
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

Dimmable LED Output 4 Dimmer

Independent dimmer channel 4 (light profile, id=3) with brightness control, calibration, and per-channel power metering

numeric

Service Attributes

Temperature

Energy Consumption

Power

Voltage

Current

Flags

Service Actions

Calibration

Dimmable LED Output 4

Read (module)

if PARSEJSON(Sys.GetConfig, "$.device.profile") != "light"
	adderror("Profile is not set to light (" + PARSEJSON(Sys.GetConfig, "$.device.profile") + ")");
end

VAR response := SENDHTTPREQUEST("/rpc/Light.GetStatus?id=" + ID);
IF response.IsSuccess
    Light.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/Light.GetConfig?id=" + ID);
IF response.IsSuccess
    Light.GetConfig := response.Content;
END

if ! ISNULL(parsejson(Light.GetStatus, "errors", true))
    adderror("Error: " + parsejson(Light.GetStatus, "errors"));
end

Read level

bool output := PARSEJSON(Light.GetStatus, "$.output");
var brightness := PARSEJSON(Light.GetStatus, "$.brightness");

if output
    return(brightness / 100);
else
    return(0);
end

Write level

SENDHTTPREQUEST("/rpc/Light.Set?id=" + ID + "&on=" + if(St, "true", "false") + "&brightness=" + round(Le*100.0));

Service Attributes

${device_variable_realtemperature} [°C]

parsejson(Light.GetStatus, "$.temperature.tC", true)

${device_variable_electricityconsumption} [Wh]

parsejson(Light.GetStatus, "$.aenergy.total", true)

${device_variable_electricitydemand} [W]

parsejson(Light.GetStatus, "$.apower", true)

${valueLogType_ElectricVoltage} [V]

parsejson(Light.GetStatus, "$.voltage", true)

${valueLogType_ElectricCurrent} [A]

parsejson(Light.GetStatus, "$.current", true)

Flags

parsejson(Light.GetStatus, "$.flags", true)

Service Actions

${detail_deviceSettings_TemperatureSensor_categoryCalibration}

VAR response := SENDHTTPREQUEST("/rpc/Light.Calibrate?id=" + ID);
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

Connection: Packet Parser → HTTP

Possible improvements (13)

Input State — Physical switch/button input state, available via /rpc/Input.GetStatus?id=0
WiFi SSID — Already exposed as module-level service attribute, not as standalone device
WiFi Signal Strength — Already exposed as module-level service attribute, not as standalone device
IP Address — Already exposed as module-level service attribute, not as standalone device
MAC Address — Already exposed as module-level service attribute, not as standalone device
Uptime — Seconds since last reboot, available in Sys.GetStatus response
RAM Usage — Total and free RAM in bytes, available in Sys.GetStatus response
Device Time — Current device time in HH:MM format, available in Sys.GetStatus response
Firmware Update — Already implemented as module-level service action
Reboot — Already implemented as module-level service action
Night Mode — Night mode configuration with brightness limits and schedule, available in component GetConfig
Transition Duration — Color/brightness transition time in ms, available as parameter in RGB.Set and RGBW.Set
Minimum Brightness on Toggle — Minimum brightness percentage when toggling on, available in Light component config

Download Template

Sources

Shelly Gen2+/Gen3 RPC API Reference
shelly-api-docs.shelly.cloud 2026-03-30
Shelly Gen2+ Switch Component API
shelly-api-docs.shelly.cloud 2026-03-30
Shelly Gen2+ System (Sys) Component API
shelly-api-docs.shelly.cloud 2026-03-30
Shelly Gen2+ WiFi Component API
shelly-api-docs.shelly.cloud 2026-03-30
Shelly Gen2+ MQTT Component API
shelly-api-docs.shelly.cloud 2026-03-30
Home Assistant Shelly Integration
www.home-assistant.io 2026-03-30
Shelly Plus RGBW PM Knowledge Base — specs, wiring, terminals
kb.shelly.cloud 2026-03-30
Shelly Plus RGBW PM API Device Page — profiles, components
shelly-api-docs.shelly.cloud 2026-03-30
Shelly Gen2+ Light Component API — light profile dimmers
shelly-api-docs.shelly.cloud 2026-03-30
Shelly Gen2+ RGB Component API — rgb profile color control
shelly-api-docs.shelly.cloud 2026-03-30
Shelly Gen2+ RGBW Component API — rgbw profile color+white control
shelly-api-docs.shelly.cloud 2026-03-30
