Shelly Plus Plug S

Packet Parser → HTTP

Submitted by

Last updated: 06. 2026

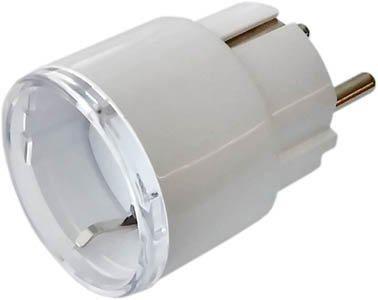

The Shelly Plus Plug S is a Gen2+ Wi-Fi smart plug with built-in power metering and a multicolour LED ring indicator. It plugs into a standard CEE 7/3 (Type-F / Schuko) socket and can switch loads up to 12 A / 2760 W at 230 V. TapHome communicates with the device locally over Wi-Fi using the Gen2+ JSON-RPC API on port 80 — no cloud connection is required.

The template exposes the plug as six TapHome devices: a relay switch, an electricity meter, an LED indication mode selector, two LED colour pickers (relay-ON and relay-OFF states) and a brightness dimmer for the power-indication mode.

Configuration

Pairing and network setup

Out of the box the device boots into access-point mode with SSID ShellyPlusPlugS-XXXXXX (LED flashes blue). Connect to this SSID, open http://192.168.33.1/ and join your local Wi-Fi from the web UI. After the plug joins your LAN, it is reachable on port 80 at its station IP address and over mDNS at shellyplusplugs-<MAC>.local.

TapHome polls the Gen2+ RPC endpoints over plain HTTP — HTTPS is disabled by default and HTTP authentication (Shelly.SetAuth) must remain disabled for the template to work. Make sure the plug sits on the same LAN / VLAN as the TapHome Core.

During template import in TapHome, supply the plug’s IP address as the IpAddress parameter. A static DHCP reservation is strongly recommended so the address does not change between reboots.

Device capabilities

Relay control

The relay is exposed as a switch device. Its state is read from /rpc/Switch.GetStatus?id=0 (the output boolean) and controlled via /rpc/Switch.Set?id=0&on=true|false. The module caches the full Switch.GetStatus response so the relay, meter and service attributes all share one HTTP call per poll.

Power and energy metering

The built-in meter on the Switch component provides:

Instantaneous power — apower in watts, converted to kW by the template (divided by 1000)
Cumulative energy — aenergy.total in watt-hours, converted to kWh (divided by 1000)

Three further readings are exposed as service attributes on the meter:

Attribute	Unit	Source field
Current	A	`current`
Voltage	V	`voltage`
Internal temperature	°C	`temperature.tC`

The meter is read-only and updates on every poll cycle.

LED indication mode

The multicolour LED ring is controlled by the Plus-Plug-S-specific PLUGS_UI RPC component. TapHome exposes a mode selector with three valid options — despite the template listing ten enum slots, only the first three correspond to real firmware modes:

Value	Behaviour
`off`	LED ring disabled (Wi-Fi / AP / firmware diagnostic states are still shown)
`switch`	LED colour reflects the relay state — uses the user-defined OFF and ON colours
`power`	LED colour reflects measured load as a fraction of the configured power limit (green → yellow → red gradient)

Switching between modes is a cosmetic change and does not require a reboot.

LED colours (switch mode)

Two independent HSB devices let you pick the LED ring colour for each relay state:

LED Color (OFF state) — colour + brightness shown while the relay is OFF
LED Color (ON state) — colour + brightness shown while the relay is ON

Both map to leds.colors.switch:0.{off|on}.{rgb,brightness} in the PLUGS_UI config. Shelly stores RGB values as percent (0–100 per channel), not 0–255, so the template multiplies each channel by 2.55 when converting between HSV and the device’s native format. This conversion is internal — from TapHome the devices behave like any other HSB colour picker.

LED brightness (power mode)

When the LED is in power mode the colour is chosen automatically by the firmware based on load. Only the brightness is user-configurable, so the template exposes it as a dimmer (leds.colors.power.brightness, 0–100 % scaled to a 0.0–1.0 TapHome dimmer level).

Module diagnostics and actions

The HTTP module exposes four service attributes parsed from /rpc/WiFi.GetStatus and /rpc/Sys.GetStatus:

Attribute	Source
Wi-Fi SSID	`ssid`
IP address	`sta_ip`
Signal strength	`rssi` (dBm)
MAC address	`mac`

Two service actions are also available:

Firmware update — triggers an OTA update on the stable channel (/rpc/Shelly.Update?stage="stable"). Activated automatically when Sys.GetStatus reports available_updates.stable.
Reboot — reboots the device (/rpc/Shelly.Reboot), useful after network configuration changes or to clear transient issues.

If you only need on/off control and basic energy monitoring, ignore the LED devices — they are optional. The relay and meter work independently of the LED indication mode.

Troubleshooting

Device not responding

Verify the plug is connected to Wi-Fi — the LED should not be flashing or solid red
Try the mDNS hostname shellyplusplugs-<MAC>.local instead of the IP address — the DHCP lease may have changed
Open http://{device-ip}/rpc/Shelly.GetDeviceInfo in a browser; if it responds with JSON the device is reachable
Confirm TapHome Core and the plug are on the same LAN / VLAN
Make sure HTTP authentication is disabled in the Shelly web UI — the template does not support digest auth

Power readings show zero

Confirm a load is actually plugged into the Shelly, not bypassed
Check that the relay is ON — the meter reports 0 W when the relay is open
Query /rpc/Switch.GetStatus?id=0 directly in a browser and verify that apower is non-zero

LED does not change after a mode switch

The LED only reflects runtime state in switch and power modes; in off mode it stays dark except for system diagnostic patterns (AP mode, reconnecting, OTA)
In switch mode make sure the ON and OFF colours are not both set to black / 0 % brightness
System indications (blue flashing for AP mode, red for Wi-Fi problems) always override the user LED configuration — if the LED is flashing red, the plug is not on your Wi-Fi

Firmware update action does not fire

The template only triggers the update when Sys.GetStatus reports available_updates.stable — run the action manually from the device card or web UI if the plug is already up-to-date
The template targets the stable channel only; beta firmware must be installed from the Shelly web UI

How to install in TapHome

Prerequisites

Shelly device installed and powered on
Local Wi-Fi network (2.4 GHz)
TapHome CCU on the same network

Step 1 — Connect Shelly to Wi-Fi

Option A — Shelly app (recommended):

Download the Shelly app (iOS / Android)
Tap + → Add Device and follow the Bluetooth pairing wizard
Enter your Wi-Fi credentials when prompted

Option B — AP mode (no app):

On first power-up the device creates a hotspot: ShellyXXX-AABBCCDDEE
Connect your phone/PC to that hotspot
Open http://192.168.33.1 → Internet & Security → Wi-Fi Mode - Client
Enter SSID and password → Save

Shelly only supports 2.4 GHz networks. 5 GHz networks will not appear in the scan.

Step 2 — Find the device address

Shelly Gen1 devices support mDNS (Zeroconf). You can reach the device using a hostname instead of an IP address:

1
shelly<model>-<MAC>.local

For example: shelly1pm-AABBCCDDEE.local (MAC address in uppercase hex, no colons).

Recommended: use the TapHome IP Scanner. Open the TapHome app and use the IP Scanner (Settings → Network → Scan). The scanner will discover devices on your network and show both the IP address and the mDNS hostname. Use the hostname instead of the IP address for a more reliable connection — it stays the same even if the device’s IP changes after a router reboot.

Alternative methods to find the IP address:

Shelly app: Device detail → Device info → IP address
Shelly web UI: Connect to the device AP before Wi-Fi setup — the IP is shown after saving
Router DHCP table: Look for a hostname like shelly1pm-AABBCCDDEE

Step 3 — Configure in TapHome

In TapHome, add a new Packet Parser (HTTP) module
Address: enter the mDNS hostname (e.g., shelly1pm-AABBCCDDEE.local) or IP address from Step 2
Port: 80 (default, no change needed)
Import the template — TapHome will poll /status to read device state

HTTP authentication is disabled by default on Shelly devices. If you have enabled login protection, TapHome does not support HTTP Basic Auth at this time — keep auth disabled for TapHome integration.

Available devices

Shelly Plus Plug S Module

Service Attributes

Wi-Fi SSID
IP address
Signal strength	Wi-Fi signal strength in dBm — values closer to 0 indicate a stronger connection (e.g. −55 dBm is good, −80 dBm is weak)
MAC address

Service Actions

Firmware update	Triggers an over-the-air firmware update from the Shelly stable channel
Reboot	Reboots the device — useful after network configuration changes or to clear transient issues

Custom Variables

Shelly Plus Plug S

Read (module)

VAR response := SENDHTTPREQUEST("/rpc/Sys.GetStatus");
IF response.IsSuccess
    Sys.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/Sys.GetConfig");
IF response.IsSuccess
    Sys.GetConfig := response.Content;
END

response := SENDHTTPREQUEST("/rpc/WiFi.GetStatus");
IF response.IsSuccess
    WiFi.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/PLUGS_UI.GetConfig");
IF response.IsSuccess
    PLUGS_UI.GetConfig := response.Content;
END

if ! ISNULL(parsejson(Sys.GetStatus, "available_updates.stable", true))
    addwarning("New firmware update is available");
end

if parsejson(Sys.GetStatus, "restart_required", true)
    addwarning("Restart required");
end

Service Attributes

Wifi

PARSEJSON(WiFi.GetStatus, "ssid")

${ipAddress}

PARSEJSON(WiFi.GetStatus, "sta_ip")

${xml_signal_strength} [dB]

PARSEJSON(WiFi.GetStatus, "rssi")

MAC

PARSEJSON(Sys.GetStatus, "mac")

Service Actions

${xml_update_fw}

VAR response := SENDHTTPREQUEST("/rpc/Shelly.Update?stage=\"stable\"");
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

Reboot

VAR response := SENDHTTPREQUEST("/rpc/Shelly.Reboot");
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

Switch Switch

boolean

Values / States: ON · OFF

Switch

Read switch state

var x := (sendhttprequest("/rpc/Switch.GetStatus?id=0"));
var status := x.Content;
return(PARSEJSON(status, "$.output", true));

Write switch state

VAR response := SENDHTTPREQUEST("rpc/Switch.Set?id=0&on=" + if(St,"true","false"));
IF response.IsSuccess = false
  ADDERROR(response.StatusCode);
END

Electric Meter Electricity Meter Read-only

Instantaneous power (kW) and cumulative energy (kWh) measured by the built-in meter, with current, voltage and internal temperature diagnostics

numeric Unit: kW / kWh

Service Attributes

Current
Voltage
Temperature	Internal device temperature in °C — the plug shuts off automatically on overheating

Electric Meter

Read total consumption

return(parsejson(parsejson(Switch.GetStatus,"aenergy"), "total")/1000);

Read demand

return(parsejson(Switch.GetStatus,"apower")/1000);

Read (module)

VAR response := SENDHTTPREQUEST("/rpc/Switch.GetStatus?id=0");
IF response.IsSuccess
    Switch.GetStatus := response.Content;
END

Service Attributes

${electric_current} [A]

return(parsejson(Switch.GetStatus,"current"));

${electric_voltage} [V]

return(parsejson(Switch.GetStatus,"voltage"));

${temperature} [°C]

return(parsejson(parsejson(Switch.GetStatus,"temperature"), "tC"));

LED Indication Mode Multi-value Switch

LED ring behaviour — Off (disabled), Switch (colour reflects relay state) or Power (colour reflects load as green → yellow → red)

string enum

Values / States: ${xml_off} · ${switch} · ${xml_power}

LED Indication Mode

Read switch state

switch(parsejson(PLUGS_UI.GetConfig, "leds.mode"), "power", 2, "switch", 1, 0)

Write switch state

VAR response := SENDHTTPREQUEST("rpc/PLUGS_UI.SetConfig?config={\"leds\":{\"mode\":\"" + switch(Mu, 2, "power", 1, "switch", "off") + "\"}}");

response := SENDHTTPREQUEST("/rpc/PLUGS_UI.GetConfig");
IF response.IsSuccess
    PLUGS_UI.GetConfig := response.Content;
END

LED Color (OFF state) HSB Light

RGB colour and brightness of the LED ring while the relay is OFF (used in Switch indication mode)

HSB (hue, saturation, brightness) hsv-to-rgb

LED Color (OFF state)

Read brightness

parsejson(PLUGS_UI.GetConfig, basePath + ".brightness") / 100

Write brightness

VAR rgb := HSVTORGB( Hd, Sa, Hb);

VAR response := SENDHTTPREQUEST("rpc/PLUGS_UI.SetConfig?config={\"leds\":{\"colors\":{\"switch:0\":{\"off\":{\"brightness\":" + Hb*100 + "}}}}}");

response := SENDHTTPREQUEST("/rpc/PLUGS_UI.GetConfig");
IF response.IsSuccess
    PLUGS_UI.GetConfig := response.Content;
END

Read hue

VAR HSVColor := RGBTOHSV(parsejson(PLUGS_UI.GetConfig, basePath + ".rgb[0]") *2.55, parsejson(PLUGS_UI.GetConfig, basePath + ".rgb[1]") *2.55, parsejson(PLUGS_UI.GetConfig, basePath + ".rgb[2]") *2.55);

HSVColor.Hue

Write hue

VAR rgb := HSVTORGB( Hd, Sa, Hb);

VAR response := SENDHTTPREQUEST("rpc/PLUGS_UI.SetConfig?config={\"leds\":{\"colors\":{\"switch:0\":{\"off\":{\"rgb\":[" + rgb.red/2.55 + "," + rgb.green/2.55 + "," + rgb.blue/2.55 + "],\"brightness\":" + Hb*100 + "}}}}}");

response := SENDHTTPREQUEST("/rpc/PLUGS_UI.GetConfig");
IF response.IsSuccess
    PLUGS_UI.GetConfig := response.Content;
END

Read saturation

VAR HSVColor := RGBTOHSV(parsejson(PLUGS_UI.GetConfig, basePath + ".rgb[0]") *2.55, parsejson(PLUGS_UI.GetConfig, basePath + ".rgb[1]") *2.55, parsejson(PLUGS_UI.GetConfig, basePath + ".rgb[2]") *2.55);

HSVColor.Saturation

Write saturation

VAR rgb := HSVTORGB( Hd, Sa, Hb);

VAR response := SENDHTTPREQUEST("rpc/PLUGS_UI.SetConfig?config={\"leds\":{\"colors\":{\"switch:0\":{\"off\":{\"rgb\":[" + rgb.red/2.55 + "," + rgb.green/2.55 + "," + rgb.blue/2.55 + "],\"brightness\":" + Hb*100 + "}}}}}");

response := SENDHTTPREQUEST("/rpc/PLUGS_UI.GetConfig");
IF response.IsSuccess
    PLUGS_UI.GetConfig := response.Content;
END

LED Color (ON state) HSB Light

RGB colour and brightness of the LED ring while the relay is ON (used in Switch indication mode)

HSB (hue, saturation, brightness) hsv-to-rgb

LED Color (ON state)

Read brightness

parsejson(PLUGS_UI.GetConfig, basePath + ".brightness") / 100

Write brightness

VAR rgb := HSVTORGB( Hd, Sa, Hb);

VAR response := SENDHTTPREQUEST("rpc/PLUGS_UI.SetConfig?config={\"leds\":{\"colors\":{\"switch:0\":{\"on\":{\"brightness\":" + Hb*100 + "}}}}}");

response := SENDHTTPREQUEST("/rpc/PLUGS_UI.GetConfig");
IF response.IsSuccess
    PLUGS_UI.GetConfig := response.Content;
END

Read hue

VAR HSVColor := RGBTOHSV(parsejson(PLUGS_UI.GetConfig, basePath + ".rgb[0]") *2.55, parsejson(PLUGS_UI.GetConfig, basePath + ".rgb[1]") *2.55, parsejson(PLUGS_UI.GetConfig, basePath + ".rgb[2]") *2.55);

HSVColor.Hue

Write hue

VAR rgb := HSVTORGB( Hd, Sa, Hb);

VAR response := SENDHTTPREQUEST("rpc/PLUGS_UI.SetConfig?config={\"leds\":{\"colors\":{\"switch:0\":{\"on\":{\"rgb\":[" + rgb.red/2.55 + "," + rgb.green/2.55 + "," + rgb.blue/2.55 + "],\"brightness\":" + Hb*100 + "}}}}}");

response := SENDHTTPREQUEST("/rpc/PLUGS_UI.GetConfig");
IF response.IsSuccess
    PLUGS_UI.GetConfig := response.Content;
END

Read saturation

VAR HSVColor := RGBTOHSV(parsejson(PLUGS_UI.GetConfig, basePath + ".rgb[0]") *2.55, parsejson(PLUGS_UI.GetConfig, basePath + ".rgb[1]") *2.55, parsejson(PLUGS_UI.GetConfig, basePath + ".rgb[2]") *2.55);

HSVColor.Saturation

Write saturation

VAR rgb := HSVTORGB( Hd, Sa, Hb);

VAR response := SENDHTTPREQUEST("rpc/PLUGS_UI.SetConfig?config={\"leds\":{\"colors\":{\"switch:0\":{\"on\":{\"rgb\":[" + rgb.red/2.55 + "," + rgb.green/2.55 + "," + rgb.blue/2.55 + "],\"brightness\":" + Hb*100 + "}}}}}");

response := SENDHTTPREQUEST("/rpc/PLUGS_UI.GetConfig");
IF response.IsSuccess
    PLUGS_UI.GetConfig := response.Content;
END

LED Brightness (Power mode) Dimmer

Brightness of the LED ring in Power indication mode — colour itself is auto-selected by the firmware based on load

numeric

LED Brightness (Power mode)

Read level

parsejson(PLUGS_UI.GetConfig, "leds.colors.power.brightness") / 100

Write level

VAR response := SENDHTTPREQUEST("rpc/PLUGS_UI.SetConfig?config={\"leds\":{\"colors\":{\"power\":{\"brightness\":" + Le*100 + "}}}}");

response := SENDHTTPREQUEST("/rpc/PLUGS_UI.GetConfig");
IF response.IsSuccess
    PLUGS_UI.GetConfig := response.Content;
END

Connection: Packet Parser → HTTP

Possible improvements (23)

Power Factor — Power factor (0.0–1.0) reported in Switch.GetStatus response for metered devices
Line Frequency — AC line frequency in Hz, available in Switch.GetStatus response
Returned Energy — Returned/exported energy in Wh, for bi-directional metering scenarios
Per-minute Energy History — Rolling three-minute energy buffer in mWh, useful for fine-grained load profiling
Toggle Relay — Toggles the relay state without needing to know current state; not mapped as a TapHome service action
Auto-off Timer — Optional toggle_after parameter (seconds) on Switch.Set — relay auto-reverts after N seconds
Overpower Protection — Configurable power limit (W); firmware turns the relay off when exceeded. Template does not expose a setter
Over-voltage / Over-current Protection — Voltage and current safety thresholds configurable via Switch.SetConfig; not exposed by template
Initial State After Power-up — Relay behaviour after power loss (off / on / restore_last / match_input); not exposed by template
Reset Energy Counters — Resets aenergy / ret_aenergy counters; not exposed by template
Button Input Mode — Physical button behaviour (momentary / detached); device-internal, not exposed as a TapHome input
LED Night Mode — Dims the LED ring during a configurable HH:MM window (wraps midnight); not mapped by template
Local Scheduler — On-device cron-like scheduler for relay actions; no TapHome equivalent (TapHome uses its own schedules)
Webhooks — Outbound HTTP webhooks on device events; not used by template (TapHome polls instead)
mJS Scripts — Up to 10 on-device mJS scripts; out of scope for TapHome integration
Shelly Cloud Connection — Cloud connection status and enable/disable toggle; not mapped by template (TapHome communicates locally)
Bluetooth LE Configuration — BLE gateway enable/disable and observer mode; not exposed by template
MQTT Transport Config — Inbound/outbound MQTT RPC transport config; template uses HTTP exclusively
System Diagnostics — Uptime, RAM/FS utilisation, last reset reason — available in cached Sys.GetStatus but not surfaced as attributes
Device Time — Device wall-clock (HH:MM) and unix epoch; not surfaced as attribute
Beta Firmware Availability — Template warns on available_updates.stable but ignores the beta channel
Factory Reset — Restores factory defaults; not exposed by template (deliberately destructive)
HTTP Authentication — Enables digest auth on the RPC endpoint; template assumes no-auth local access

Download Template

Sources

Shelly Gen2+/Gen3 RPC API Reference
shelly-api-docs.shelly.cloud 2026-03-29
Shelly Gen2+ Switch Component API
shelly-api-docs.shelly.cloud 2026-03-29
Shelly Gen2+ System (Sys) Component API
shelly-api-docs.shelly.cloud 2026-03-29
Shelly Gen2+ WiFi Component API
shelly-api-docs.shelly.cloud 2026-03-29
Shelly Gen2+ MQTT Component API
shelly-api-docs.shelly.cloud 2026-03-29
Home Assistant Shelly Integration
www.home-assistant.io 2026-03-29
Shelly Plus Plug S Knowledge Base — specs, wiring, LED indication
kb.shelly.cloud 2026-04-24
Shelly Plus Plug S RPC API — PLUGS_UI component (device-specific)
shelly-api-docs.shelly.cloud 2026-04-24

Found a problem with this device template?

Tell us what's wrong, what's missing, or how the template should behave. We rely on your feedback to keep the catalog accurate.

Verified by TapHome

Want to use this in your TapHome Core?

Open this template in the Customer Portal to apply it to one of your homes, or to draft a refinement and submit it back to the catalog.

Open in portal
