Shelly DUO RGBW MQTT

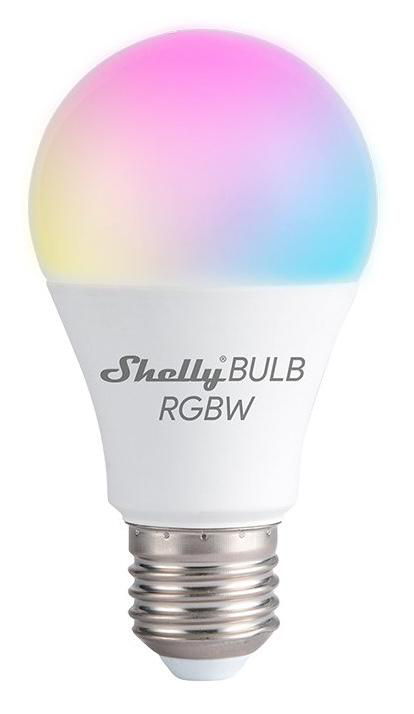

The Shelly DUO RGBW (model SHCB-1) is a Gen1 Wi-Fi smart LED bulb available in E27 and GU10 form factors. It supports full RGB color and tunable white (CCT 3000–6500 K) with smooth transition effects. This is the MQTT variant of the TapHome integration — the template communicates with bulbs through a shared MQTT broker on the local network. An HTTP variant is also available for single-bulb setups.

The template supports up to 5 Shelly DUO RGBW bulbs per module. Each bulb instance is distinguished by a bulbNtopic custom variable pointing to the bulb’s MQTT Device ID. Each bulb exposes an RGBW light device and an electric meter — 10 devices total.

Configuration

Device ID

Each Shelly DUO RGBW bulb has a unique MQTT Device ID in the format shellycolorbulb-<DEVICEID>, where <DEVICEID> is derived from the MAC address (e.g., shellycolorbulb-B929CC).

The Device ID can be found:

  • On the device packaging or label (MAC address)
  • In the Shelly web UI: Settings → Device Info
  • Via API: GET http://<device-ip>/settings → mqtt.id field
Module variables

After importing the template in TapHome, configure the bulb topic variables:

VariableDefaultDescription
bulb1topicshellycolorbulb-deviceid1MQTT Device ID for bulb 1
bulb2topicshellycolorbulb-deviceid2MQTT Device ID for bulb 2
bulb3topicshellycolorbulb-deviceid3MQTT Device ID for bulb 3
bulb4topicshellycolorbulb-deviceid4MQTT Device ID for bulb 4
bulb5topicshellycolorbulb-deviceid5MQTT Device ID for bulb 5

Replace the default placeholder with the actual Device ID of each bulb (e.g., shellycolorbulb-B929CC). Only configure the slots you actually use — unused slots with the default placeholder will display an error prompting you to set the correct topic.

The module subscribes to shellies/# (QoS 0, port 1883) and the listener scripts filter messages by the configured topic prefix for each bulb.

On Gen1 Shelly devices, enabling MQTT disables Shelly Cloud. Both cannot run simultaneously.

Device capabilities

Light control

Each bulb is mapped as an HSB Light device in TapHome. The bulb operates in two mutually exclusive modes:

  • Color mode — full RGB control via red, green, and blue channels (0–255 each) plus gain (0–100%). TapHome converts RGB to HSV internally — hue (0–360°), saturation, and brightness are available as control properties. Setting hue or saturation sends a color/0/set JSON payload with "mode":"color".
  • White mode — tunable white via color temperature (3000–6500 K) and brightness (0–100%). Setting a CCT value in TapHome automatically switches the bulb to white mode by publishing "mode":"white" with the temperature and brightness.

All write commands include a configurable transition time (default 300 ms) for smooth fading between states. A debounce mechanism prevents stale reads during transitions — the template ignores incoming MQTT status messages for transitionTime + 3000 ms after each write command.

Power metering

Each bulb instance includes an electric meter that reads two values:

  • Real-time power — from shellies/{id}/light/0/power, reported in watts, converted to kW (payload / 1000)
  • Total consumption — from shellies/{id}/light/0/energy, reported in watt-minutes, converted to kWh (payload / 60 000)

Power monitoring requires the device model to be configured in the Shelly app or web UI under Settings > Device Model. Without this configuration, power readings remain at zero.

Additional capabilities

The Shelly DUO RGBW also supports light effects (meteor shower, gradual change, breath, flash, on/off gradual, red/green change), a dedicated white LED channel (0–255) in color mode, MQTT connection status via LWT topic, and a full JSON status report (firmware ≥1.8.0) with Wi-Fi RSSI, uptime, and temperature data. These capabilities can be added in a future template update.

Troubleshooting

Bulbs not responding
  1. Verify MQTT is enabled in each bulb’s web UI (Internet & Security > Advanced — MQTT)
  2. Confirm the broker address and port are correct in both the Shelly device settings and TapHome module configuration
  3. Check that each bulbNtopic custom variable matches the bulb’s Device ID exactly (e.g., shellycolorbulb-B929CC)
  4. Use an MQTT client (e.g., MQTT Explorer) to subscribe to shellies/# and verify each bulb publishes messages
Colors appear incorrect
  1. Verify the bulb is in color mode — RGB colors only work in color mode, not white mode
  2. Ensure saturation is greater than zero — a saturation of 0 produces white light regardless of hue
  3. Check that gain (brightness in color mode) is not set to zero
Power readings show zero
  1. Confirm the device model is configured in the Shelly app or web UI (Settings > Device Model)
  2. Verify the bulb is turned on — the meter only reads when the bulb draws power

Gen1 Shelly devices do not support MQTT over TLS. Communication between the bulbs and the MQTT broker is unencrypted (plain MQTT, port 1883). Ensure the MQTT broker is on a trusted local network.

How to install in TapHome

Prerequisites

  • Shelly device connected to Wi-Fi (see HTTP connection guide if not done yet)
  • MQTT broker running on your local network (e.g., Mosquitto, Home Assistant, or TapHome built-in broker)
  • TapHome CCU on the same network as the broker

On Gen1 devices, enabling MQTT disables Shelly Cloud. Both cannot run simultaneously. On Gen2/Plus devices this limitation does not apply.

Step 1 — Enable MQTT on the Shelly device

Gen1 devices (Shelly 1, 1PM, 2.5, EM, 3EM, Plug S, RGBW2, Dimmer, TRV…)

  1. Open the Shelly web UI: http://<device-ip>/
  2. Navigate to Internet & Security → Advanced — MQTT
  3. Enable MQTT
  4. Set MQTT Server: <broker-ip>:<port> (e.g., 192.168.1.10:1883)
  5. Optionally set MQTT User and MQTT Password if your broker requires authentication
  6. Click Save — the device will reboot and connect to the broker

Gen2 / Plus devices (Shelly Plus 1, Plus 1PM, Plus 2PM, Plus Plug S, Plus H&T, Pro 3EM…)

  1. Open the Shelly web UI: http://<device-ip>/
  2. Navigate to Settings → MQTT
  3. Enable MQTT
  4. Set Server: <broker-ip>:<port> (e.g., 192.168.1.10:1883)
  5. The Client ID is pre-filled with the device ID (e.g., shellyplus1pm-AABBCCDDEE) — leave as-is unless you have a specific reason to change it
  6. Click Save and reboot the device

To verify MQTT is working, use an MQTT client (e.g., MQTT Explorer) and subscribe to shellies/# (Gen1) or <device-id>/# (Gen2). You should see status messages from the device.

Step 2 — Find the Device ID / MQTT Client ID

Some templates require a Device ID or MQTT Client ID parameter. This is the unique identifier used in MQTT topics.

  • Gen1: found on the label as MAC address (e.g., AABBCCDDEE). Device ID = shelly<model>-<mac>, e.g., shelly1pm-AABBCCDDEE
  • Gen2/Plus: found in the Shelly web UI under Settings → Device Info → Device ID, or on the device label

Step 3 — Configure in TapHome

  1. In TapHome, add a new Packet Parser (MQTT) module
  2. IP Address: enter the MQTT broker IP (e.g., 192.168.1.10)
  3. Port: 1883 (default; use 8883 for TLS)
  4. Device ID / MQTT Client ID: enter the value from Step 2 (if required by the template)
  5. Import the template — TapHome will subscribe to the device topics automatically

Available devices

Shelly DUO RGBW MQTT Module
Custom Variables
bulb1topic (string) = shellycolorbulb-deviceid1MQTT topic name of bulb 1 — format is 'shellycolorbulb-DEVICEID' (find Device ID in Shelly web UI → Settings → Device Info)
bulb2topic (string) = shellycolorbulb-deviceid2MQTT topic name of bulb 2
bulb3topic (string) = shellycolorbulb-deviceid3MQTT topic name of bulb 3
bulb4topic (string) = shellycolorbulb-deviceid4MQTT topic name of bulb 4
bulb5topic (string) = shellycolorbulb-deviceid5MQTT topic name of bulb 5
Electric Meter 1 Electricity Meter Read-only

Power consumption and energy metering for bulb 1 — instantaneous power (kW) and cumulative energy (kWh)

numeric Unit: kW / kWh

Electric Meter 1

Listener
ADDINFO("To enable power monitoring, open device settings in Shelly app or web browser and configure device model in Settings->Device Model");

IF(INDEXOF(bulb1topic, "shellycolorbulb-deviceid") = 0)
    ADDERROR("Set correct 'bulb1topic' value in module variables. Topic format is 'shellycolorbulb-<deviceid>'. The Device ID can be found by opening url 'http://shellyIpAddress', in Settings -> Device info.");
    RETURN(-1);
END

IF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb1topic + "/light/0/power") = 0
    Ed := TODOUBLE(TOSTRING(RECEIVEDMSG.PAYLOAD)) / 1000.0;
ELSEIF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb1topic + "/light/0/energy") = 0
    To := TODOUBLE(TOSTRING(RECEIVEDMSG.PAYLOAD)) / 60000.0;
END
RGBW Light 1 HSB Light

HSB light with dual mode — full RGB color with gain, or tunable white (3000–6500 K) with brightness

json JSON (ison, mode, red, green, blue, white, gain, temp, brightness, effect)

RGBW Light 1

Listener
IF(INDEXOF(bulb1topic, "shellycolorbulb-deviceid") = 0)
    ADDERROR("Set correct 'bulb1topic' value in module variables. Topic format is 'shellycolorbulb-<deviceid>'. The Device ID can be found by opening url 'http://shellyIpAddress', in Settings -> Device info.");
    RETURN(-1);
END

VAR now := NOW();
IF now.Ticks < debounceTimestamp
    RETURN(0);
END

IF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb1topic + "/color/0/status") != 0
    RETURN(0);
END

IF RECEIVEDMSG.PAYLOAD.LENGTH = 0
    RETURN(0);
END

BOOL ison := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.ison", 1);
VAR mode := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.mode", 1);

IF ISNULL(mode)
    RETURN(0);
END

INT bright;

IF mode = "color"
    UINT8 red := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.red");
    UINT8 green := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.green");
    UINT8 blue := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.blue");
    bright := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.gain");

    VAR hsvColor := RGBTOHSV(red, green, blue);

    Hd := ROUND(hsvColor.Hue);
    Sa := ROUND(hsvColor.Saturation * 100.0) / 100.0;
    Ct := NaN;
ELSE
    Ct := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.temp");
    bright := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.brightness");
END

IF ison
    Hb:= bright / 100.0;
    St := isOn;
ELSE
    Hb := 0;
    St := 0;
END
Write brightness
VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

IF St > 0.5
    VAR topic := "shellies/" + bulb1topic + "/color/0/set";

	IF ISNAN(Ct)
        MQTTPUBLISH(topic, "{\"turn\": \"on\", \"transition\": " + transitionTime + ", \"gain\": " + ROUND(Hb*100.0) + "}");
    ELSE
        MQTTPUBLISH(topic, "{\"turn\": \"on\", \"transition\": " + transitionTime + ", \"brightness\": " + ROUND(Hb*100.0) + "}");

    END
ELSE
    MQTTPUBLISH("shellies/" + bulb1topic + "/color/0/command", "off");
END
Write hue
IF !ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb1topic + "/color/0/set";
VAR rgbColor := HSVTORGB(Hd, Sa, 1);

VAR data := "{\"mode\": \"color\", \"gain\": " + ROUND(Hb*100.0) + ", \"transition\":" + transitionTime + ",\"red\":" + rgbColor.red + ",\"green\":" + rgbColor.green + ",\"blue\":" + rgbColor.blue + "}";

MQTTPUBLISH(topic, data);
Write saturation
IF !ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb1topic + "/color/0/set";
VAR rgbColor := HSVTORGB(Hd, Sa, 1);

VAR data := "{\"mode\": \"color\", \"gain\": " + ROUND(Hb*100.0) + ", \"transition\":" + transitionTime + ",\"red\":" + rgbColor.red + ",\"green\":" + rgbColor.green + ",\"blue\":" + rgbColor.blue + "}";

MQTTPUBLISH(topic, data);
Write color temperature
IF ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb1topic + "/color/0/set";

MQTTPUBLISH(topic, "{\"mode\": \"white\", \"brightness\": " + ROUND(Hb*100.0) + ", \"transition\": " + transitionTime + ", \"temp\":" + Ct + "}");
Electric Meter 2 Electricity Meter Read-only

Power consumption and energy metering for bulb 2 — instantaneous power (kW) and cumulative energy (kWh)

numeric Unit: kW / kWh

Electric Meter 2

Listener
ADDINFO("To enable power monitoring, open device settings in Shelly app or web browser and configure device model in Settings->Device Model");

IF(INDEXOF(bulb2topic, "shellycolorbulb-deviceid") = 0)
    ADDERROR("Set correct 'bulb2topic' value in module variables. Topic format is 'shellycolorbulb-<deviceid>'. The Device ID can be found by opening url 'http://shellyIpAddress', in Settings -> Device info.");
    RETURN(-1);
END

IF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb2topic + "/light/0/power") = 0
    Ed := TODOUBLE(TOSTRING(RECEIVEDMSG.PAYLOAD)) / 1000.0;
ELSEIF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb2topic + "/light/0/energy") = 0
    To := TODOUBLE(TOSTRING(RECEIVEDMSG.PAYLOAD)) / 60000.0;
END
RGBW Light 2 HSB Light

HSB light with dual mode — full RGB color with gain, or tunable white (3000–6500 K) with brightness

json JSON (ison, mode, red, green, blue, white, gain, temp, brightness, effect)

RGBW Light 2

Listener
IF(INDEXOF(bulb2topic, "shellycolorbulb-deviceid") = 0)
    ADDERROR("Set correct 'bulb2topic' value in module variables. Topic format is 'shellycolorbulb-<deviceid>'. The Device ID can be found by opening url 'http://shellyIpAddress', in Settings -> Device info.");
    RETURN(-1);
END

VAR now := NOW();
IF now.Ticks < debounceTimestamp
    RETURN(0);
END

IF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb2topic + "/color/0/status") != 0
    RETURN(0);
END

IF RECEIVEDMSG.PAYLOAD.LENGTH = 0
    RETURN(0);
END

BOOL ison := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.ison", 1);
VAR mode := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.mode", 1);

IF ISNULL(mode)
    RETURN(0);
END

INT bright;

IF mode = "color"
    UINT8 red := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.red");
    UINT8 green := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.green");
    UINT8 blue := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.blue");
    bright := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.gain");

    VAR hsvColor := RGBTOHSV(red, green, blue);

    Hd := ROUND(hsvColor.Hue);
    Sa := ROUND(hsvColor.Saturation * 100.0) / 100.0;
    Ct := NaN;
ELSE
    Ct := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.temp");
    bright := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.brightness");
END

IF ison
    Hb:= bright / 100.0;
    St := isOn;
ELSE
    Hb := 0;
    St := 0;
END
Write brightness
VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

IF St > 0.5
    VAR topic := "shellies/" + bulb2topic + "/color/0/set";

	IF ISNAN(Ct)
        MQTTPUBLISH(topic, "{\"turn\": \"on\", \"transition\": " + transitionTime + ", \"gain\": " + ROUND(Hb*100.0) + "}");
    ELSE
        MQTTPUBLISH(topic, "{\"turn\": \"on\", \"transition\": " + transitionTime + ", \"brightness\": " + ROUND(Hb*100.0) + "}");

    END
ELSE
    MQTTPUBLISH("shellies/" + bulb2topic + "/color/0/command", "off");
END
Write hue
IF !ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb2topic + "/color/0/set";
VAR rgbColor := HSVTORGB(Hd, Sa, 1);

VAR data := "{\"mode\": \"color\", \"gain\": " + ROUND(Hb*100.0) + ", \"transition\":" + transitionTime + ",\"red\":" + rgbColor.red + ",\"green\":" + rgbColor.green + ",\"blue\":" + rgbColor.blue + "}";

MQTTPUBLISH(topic, data);
Write saturation
IF !ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb2topic + "/color/0/set";
VAR rgbColor := HSVTORGB(Hd, Sa, 1);

VAR data := "{\"mode\": \"color\", \"gain\": " + ROUND(Hb*100.0) + ", \"transition\":" + transitionTime + ",\"red\":" + rgbColor.red + ",\"green\":" + rgbColor.green + ",\"blue\":" + rgbColor.blue + "}";

MQTTPUBLISH(topic, data);
Write color temperature
IF ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb2topic + "/color/0/set";

MQTTPUBLISH(topic, "{\"mode\": \"white\", \"brightness\": " + ROUND(Hb*100.0) + ", \"transition\": " + transitionTime + ", \"temp\":" + Ct + "}");
Electric Meter 3 Electricity Meter Read-only

Power consumption and energy metering for bulb 3 — instantaneous power (kW) and cumulative energy (kWh)

numeric Unit: kW / kWh

Electric Meter 3

Listener
ADDINFO("To enable power monitoring, open device settings in Shelly app or web browser and configure device model in Settings->Device Model");

IF(INDEXOF(bulb2topic, "shellycolorbulb-deviceid") = 0)
    ADDERROR("Set correct 'bulb3topic' value in module variables. Topic format is 'shellycolorbulb-<deviceid>'. The Device ID can be found by opening url 'http://shellyIpAddress', in Settings -> Device info.");
    RETURN(-1);
END

IF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb3topic + "/light/0/power") = 0
    Ed := TODOUBLE(TOSTRING(RECEIVEDMSG.PAYLOAD)) / 1000.0;
ELSEIF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb3topic + "/light/0/energy") = 0
    To := TODOUBLE(TOSTRING(RECEIVEDMSG.PAYLOAD)) / 60000.0;
END
RGBW Light 3 HSB Light

HSB light with dual mode — full RGB color with gain, or tunable white (3000–6500 K) with brightness

json JSON (ison, mode, red, green, blue, white, gain, temp, brightness, effect)

RGBW Light 3

Listener
IF(INDEXOF(bulb3topic, "shellycolorbulb-deviceid") = 0)
    ADDERROR("Set correct 'bulb3topic' value in module variables. Topic format is 'shellycolorbulb-<deviceid>'. The Device ID can be found by opening url 'http://shellyIpAddress', in Settings -> Device info.");
    RETURN(-1);
END

VAR now := NOW();
IF now.Ticks < debounceTimestamp
    RETURN(0);
END

IF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb3topic + "/color/0/status") != 0
    RETURN(0);
END

IF RECEIVEDMSG.PAYLOAD.LENGTH = 0
    RETURN(0);
END

BOOL ison := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.ison", 1);
VAR mode := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.mode", 1);

IF ISNULL(mode)
    RETURN(0);
END

INT bright;

IF mode = "color"
    UINT8 red := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.red");
    UINT8 green := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.green");
    UINT8 blue := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.blue");
    bright := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.gain");

    VAR hsvColor := RGBTOHSV(red, green, blue);

    Hd := ROUND(hsvColor.Hue);
    Sa := ROUND(hsvColor.Saturation * 100.0) / 100.0;
    Ct := NaN;
ELSE
    Ct := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.temp");
    bright := PARSEJSON(RECEIVEDMSG.PAYLOADStatus, "$.brightness");
END

IF ison
    Hb:= bright / 100.0;
    St := isOn;
ELSE
    Hb := 0;
    St := 0;
END
Write brightness
VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

IF St > 0.5
    VAR topic := "shellies/" + bulb3topic + "/color/0/set";

	IF ISNAN(Ct)
        MQTTPUBLISH(topic, "{\"turn\": \"on\", \"transition\": " + transitionTime + ", \"gain\": " + ROUND(Hb*100.0) + "}");
    ELSE
        MQTTPUBLISH(topic, "{\"turn\": \"on\", \"transition\": " + transitionTime + ", \"brightness\": " + ROUND(Hb*100.0) + "}");

    END
ELSE
    MQTTPUBLISH("shellies/" + bulb3topic + "/color/0/command", "off");
END
Write hue
IF !ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb3topic + "/color/0/set";
VAR rgbColor := HSVTORGB(Hd, Sa, 1);

VAR data := "{\"mode\": \"color\", \"gain\": " + ROUND(Hb*100.0) + ", \"transition\":" + transitionTime + ",\"red\":" + rgbColor.red + ",\"green\":" + rgbColor.green + ",\"blue\":" + rgbColor.blue + "}";

MQTTPUBLISH(topic, data);
Write saturation
IF !ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb3topic + "/color/0/set";
VAR rgbColor := HSVTORGB(Hd, Sa, 1);

VAR data := "{\"mode\": \"color\", \"gain\": " + ROUND(Hb*100.0) + ", \"transition\":" + transitionTime + ",\"red\":" + rgbColor.red + ",\"green\":" + rgbColor.green + ",\"blue\":" + rgbColor.blue + "}";

MQTTPUBLISH(topic, data);
Write color temperature
IF ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb3topic + "/color/0/set";

MQTTPUBLISH(topic, "{\"mode\": \"white\", \"brightness\": " + ROUND(Hb*100.0) + ", \"transition\": " + transitionTime + ", \"temp\":" + Ct + "}");
Electric Meter 4 Electricity Meter Read-only

Power consumption and energy metering for bulb 4 — instantaneous power (kW) and cumulative energy (kWh)

numeric Unit: kW / kWh

Electric Meter 4

Listener
ADDINFO("To enable power monitoring, open device settings in Shelly app or web browser and configure device model in Settings->Device Model");

IF(INDEXOF(bulb2topic, "shellycolorbulb-deviceid") = 0)
    ADDERROR("Set correct 'bulb4topic' value in module variables. Topic format is 'shellycolorbulb-<deviceid>'. The Device ID can be found by opening url 'http://shellyIpAddress', in Settings -> Device info.");
    RETURN(-1);
END

IF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb4topic + "/light/0/power") = 0
    Ed := TODOUBLE(TOSTRING(RECEIVEDMSG.PAYLOAD)) / 1000.0;
ELSEIF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb4topic + "/light/0/energy") = 0
    To := TODOUBLE(TOSTRING(RECEIVEDMSG.PAYLOAD)) / 60000.0;
END
RGBW Light 4 HSB Light

HSB light with dual mode — full RGB color with gain, or tunable white (3000–6500 K) with brightness

json JSON (ison, mode, red, green, blue, white, gain, temp, brightness, effect)

RGBW Light 4

Listener
IF(INDEXOF(bulb4topic, "shellycolorbulb-deviceid") = 0)
    ADDERROR("Set correct 'bulb4topic' value in module variables. Topic format is 'shellycolorbulb-<deviceid>'. The Device ID can be found by opening url 'http://shellyIpAddress', in Settings -> Device info.");
    RETURN(-1);
END

VAR now := NOW();
IF now.Ticks < debounceTimestamp
    RETURN(0);
END

IF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb4topic + "/color/0/status") != 0
    RETURN(0);
END

IF RECEIVEDMSG.PAYLOAD.LENGTH = 0
    RETURN(0);
END

BOOL ison := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.ison", 1);
VAR mode := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.mode", 1);

IF ISNULL(mode)
    RETURN(0);
END

INT bright;

IF mode = "color"
    UINT8 red := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.red");
    UINT8 green := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.green");
    UINT8 blue := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.blue");
    bright := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.gain");

    VAR hsvColor := RGBTOHSV(red, green, blue);

    Hd := ROUND(hsvColor.Hue);
    Sa := ROUND(hsvColor.Saturation * 100.0) / 100.0;
    Ct := NaN;
ELSE
    Ct := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.temp");
    bright := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.brightness");
END

IF ison
    Hb:= bright / 100.0;
    St := isOn;
ELSE
    Hb := 0;
    St := 0;
END
Write brightness
VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

IF St > 0.5
    VAR topic := "shellies/" + bulb4topic + "/color/0/set";

	IF ISNAN(Ct)
        MQTTPUBLISH(topic, "{\"turn\": \"on\", \"transition\": " + transitionTime + ", \"gain\": " + ROUND(Hb*100.0) + "}");
    ELSE
        MQTTPUBLISH(topic, "{\"turn\": \"on\", \"transition\": " + transitionTime + ", \"brightness\": " + ROUND(Hb*100.0) + "}");

    END
ELSE
    MQTTPUBLISH("shellies/" + bulb4topic + "/color/0/command", "off");
END
Write hue
IF !ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb4topic + "/color/0/set";
VAR rgbColor := HSVTORGB(Hd, Sa, 1);

VAR data := "{\"mode\": \"color\", \"gain\": " + ROUND(Hb*100.0) + ", \"transition\":" + transitionTime + ",\"red\":" + rgbColor.red + ",\"green\":" + rgbColor.green + ",\"blue\":" + rgbColor.blue + "}";

MQTTPUBLISH(topic, data);
Write saturation
IF !ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb4topic + "/color/0/set";
VAR rgbColor := HSVTORGB(Hd, Sa, 1);

VAR data := "{\"mode\": \"color\", \"gain\": " + ROUND(Hb*100.0) + ", \"transition\":" + transitionTime + ",\"red\":" + rgbColor.red + ",\"green\":" + rgbColor.green + ",\"blue\":" + rgbColor.blue + "}";

MQTTPUBLISH(topic, data);
Write color temperature
IF ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb4topic + "/color/0/set";

MQTTPUBLISH(topic, "{\"mode\": \"white\", \"brightness\": " + ROUND(Hb*100.0) + ", \"transition\": " + transitionTime + ", \"temp\":" + Ct + "}");
Electric Meter 5 Electricity Meter Read-only

Power consumption and energy metering for bulb 5 — instantaneous power (kW) and cumulative energy (kWh)

numeric Unit: kW / kWh

Electric Meter 5

Listener
ADDINFO("To enable power monitoring, open device settings in Shelly app or web browser and configure device model in Settings->Device Model");

IF(INDEXOF(bulb2topic, "shellycolorbulb-deviceid") = 0)
    ADDERROR("Set correct 'bulb5topic' value in module variables. Topic format is 'shellycolorbulb-<deviceid>'. The Device ID can be found by opening url 'http://shellyIpAddress', in Settings -> Device info.");
    RETURN(-1);
END

IF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb5topic + "/light/0/power") = 0
    Ed := TODOUBLE(TOSTRING(RECEIVEDMSG.PAYLOAD)) / 1000.0;
ELSEIF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb5topic + "/light/0/energy") = 0
    To := TODOUBLE(TOSTRING(RECEIVEDMSG.PAYLOAD)) / 60000.0;
END
RGBW Light 5 HSB Light

HSB light with dual mode — full RGB color with gain, or tunable white (3000–6500 K) with brightness

json JSON (ison, mode, red, green, blue, white, gain, temp, brightness, effect)

RGBW Light 5

Listener
IF(INDEXOF(bulb5topic, "shellycolorbulb-deviceid") = 0)
    ADDERROR("Set correct 'bulb5topic' value in module variables. Topic format is 'shellycolorbulb-<deviceid>'. The Device ID can be found by opening url 'http://shellyIpAddress', in Settings -> Device info.");
    RETURN(-1);
END

VAR now := NOW();
IF now.Ticks < debounceTimestamp
    RETURN(0);
END

IF INDEXOF(RECEIVEDMSG.TOPIC, "shellies/" + bulb5topic + "/color/0/status") != 0
    RETURN(0);
END

IF RECEIVEDMSG.PAYLOAD.LENGTH = 0
    RETURN(0);
END

BOOL ison := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.ison", 1);
VAR mode := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.mode", 1);

IF ISNULL(mode)
    RETURN(0);
END

INT bright;

IF mode = "color"
    UINT8 red := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.red");
    UINT8 green := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.green");
    UINT8 blue := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.blue");
    bright := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.gain");

    VAR hsvColor := RGBTOHSV(red, green, blue);

    Hd := ROUND(hsvColor.Hue);
    Sa := ROUND(hsvColor.Saturation * 100.0) / 100.0;
    Ct := NaN;
ELSE
    Ct := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.temp");
    bright := PARSEJSON(RECEIVEDMSG.PAYLOAD, "$.brightness");
END

IF ison
    Hb:= bright / 100.0;
    St := isOn;
ELSE
    Hb := 0;
    St := 0;
END
Write brightness
VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

IF St > 0.5
    VAR topic := "shellies/" + bulb5topic + "/color/0/set";

	IF ISNAN(Ct)
        MQTTPUBLISH(topic, "{\"turn\": \"on\", \"transition\": " + transitionTime + ", \"gain\": " + ROUND(Hb*100.0) + "}");
    ELSE
        MQTTPUBLISH(topic, "{\"turn\": \"on\", \"transition\": " + transitionTime + ", \"brightness\": " + ROUND(Hb*100.0) + "}");

    END
ELSE
    MQTTPUBLISH("shellies/" + bulb5topic + "/color/0/command", "off");
END
Write hue
IF !ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb5topic + "/color/0/set";
VAR rgbColor := HSVTORGB(Hd, Sa, 1);

VAR data := "{\"mode\": \"color\", \"gain\": " + ROUND(Hb*100.0) + ", \"transition\":" + transitionTime + ",\"red\":" + rgbColor.red + ",\"green\":" + rgbColor.green + ",\"blue\":" + rgbColor.blue + "}";

MQTTPUBLISH(topic, data);
Write saturation
IF !ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb5topic + "/color/0/set";
VAR rgbColor := HSVTORGB(Hd, Sa, 1);

VAR data := "{\"mode\": \"color\", \"gain\": " + ROUND(Hb*100.0) + ", \"transition\":" + transitionTime + ",\"red\":" + rgbColor.red + ",\"green\":" + rgbColor.green + ",\"blue\":" + rgbColor.blue + "}";

MQTTPUBLISH(topic, data);
Write color temperature
IF ISNAN(Ct)
    RETURN(0);
END

VAR now := NOW();
debounceTimestamp := now.Ticks + transitionTime + 3000;

VAR topic := "shellies/" + bulb5topic + "/color/0/set";

MQTTPUBLISH(topic, "{\"mode\": \"white\", \"brightness\": " + ROUND(Hb*100.0) + ", \"transition\": " + transitionTime + ", \"temp\":" + Ct + "}");
Connection: Packet Parser → MQTT
Possible improvements (4)
  • Connection Status — LWT topic — true on connect, false on disconnect. Could detect offline bulbs.
  • Full Status JSON — Complete /status as JSON (fw ≥1.8.0). Could parse wifi_sta.rssi, uptime, temperature.
  • Light Effects — Effect index 0–6: off, meteors, gradual change, breath, flash, on/off gradual, red/green change. Not exposed in template.
  • White Channel (RGBW) — Separate white LED channel (0–255) in color mode. Template uses RGB+gain only, white channel not exposed.

Sources
