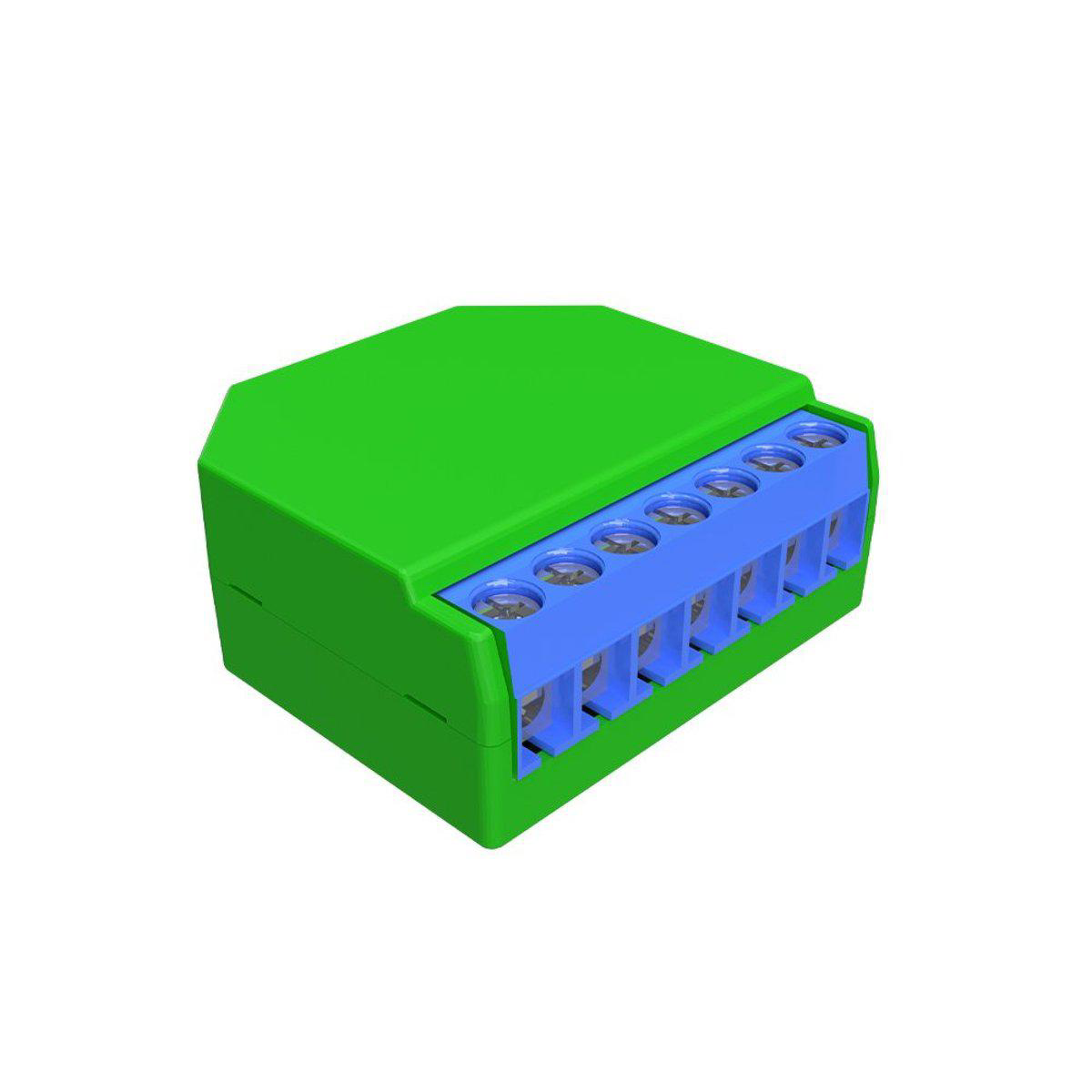

Shelly Dimmer 2

The Shelly Dimmer 2 is a compact Wi-Fi dimmer module designed for behind-the-wall installation. It supports dimmable LEDs (10–200 W), incandescent/halogen bulbs (10–220 W) and ferromagnetic transformers. TapHome communicates with the device over HTTP on the local network – no cloud connection is required.

The template provides brightness control with configurable fade transitions, an on/off light switch and an energy meter that reads real-time power consumption and cumulative energy usage.

Configuration

The Shelly Dimmer 2 connects over Wi-Fi. During TapHome template import, enter the device’s IP address (default placeholder 192.168.0.1).

The device supports four wiring configurations:

  • With neutral wire – standard installation using N, L, SW1, SW2, O terminals
  • Without neutral, minimum 10 W load – no neutral connection, requires at least 10 W load
  • Without neutral + Shelly Bypass – for loads under 10 W, the Shelly Bypass accessory is required
  • Switched neutral – alternative wiring with switched neutral line

Below the minimum load (10 W with neutral, 20 W without neutral), the dimmer may flicker or fail to turn on. Use the Shelly Bypass accessory for low-wattage loads without a neutral wire.

Device capabilities

Brightness control

The template exposes a dimmer device that reads the brightness level from /light/0 (brightness field, 0–100 %) and sets it via /light/0?brightness={value}. The value is normalized internally – the API uses 0–100 % while TapHome works with a 0.0–1.0 range.

A Transition service attribute shows the current fade duration in milliseconds. The Transition service action allows setting a smooth brightness fade (0–5000 ms) for individual commands via /light/0?transition={ms}.

Light switch

The light on/off state is controlled independently from the brightness level. The template reads ison from /light/0 and writes via /light/0?turn=on or /light/0?turn=off. The device has the lighting capability flag – it appears as a light switch in TapHome, not a generic relay.

Power metering

The built-in energy meter reads two values from the /status response:

  • Real-time power – meters[0].power reported in watts, converted to kW by the template
  • Total consumption – meters[0].total reported in watt-minutes, converted to kWh by the template

The meter is read-only and updates automatically with every poll cycle (15-second interval).

Service diagnostics

The module-level WiFi service attribute reads the connected SSID from /settings.

Additional capabilities

The Shelly Dimmer 2 also exposes internal temperature, overtemperature protection status, meter validity, WiFi signal strength and two physical switch inputs (SW1, SW2) in its /status response. A night mode with scheduled brightness limiting and incremental step-based dimming are available via the API. An auto-off timer can be set per command. These capabilities can be added in a future template update.

Troubleshooting

Device not responding
  1. Verify the Shelly is connected to Wi-Fi and has a valid IP address
  2. Try using the mDNS hostname (shellydimmer2-AABBCCDDEE.local) instead of the IP address – the IP may have changed after a DHCP renewal
  3. Open http://{device-ip}/shelly in a browser – if it responds, the device is reachable
  4. Check that TapHome CCU and Shelly are on the same network / VLAN
Flickering or unstable dimming
  1. Confirm the connected load meets the minimum wattage requirement (10 W with neutral, 20 W without)
  2. Check that the load type is supported – not all LED drivers are compatible with trailing-edge dimmers
  3. Adjust the min_brightness setting via /settings/light/0 if the light flickers at low levels
  4. Increase the warm_up time (0–1000 ms) in /settings/light/0 for loads that need a ramp-up period
Power readings show zero
  1. Confirm the load is connected through the dimmer (not bypassed)
  2. Check that the light is turned on – the meter only reads when current flows
  3. Poll /status manually and verify meters[0].power returns a non-zero value

Gen1 Shelly devices support only 2 concurrent HTTP connections. If TapHome and another system (e.g., Home Assistant) poll the same device simultaneously, communication may become unreliable. Use a poll interval of 10–30 seconds.

How to install in TapHome

Prerequisites

  • Shelly device installed and powered on
  • Local Wi-Fi network (2.4 GHz)
  • TapHome CCU on the same network

Step 1 — Connect Shelly to Wi-Fi

Option A — Shelly app (recommended):

  1. Download the Shelly app (iOS / Android)
  2. Tap + → Add Device and follow the Bluetooth pairing wizard
  3. Enter your Wi-Fi credentials when prompted

Option B — AP mode (no app):

  1. On first power-up the device creates a hotspot: ShellyXXX-AABBCCDDEE
  2. Connect your phone/PC to that hotspot
  3. Open http://192.168.33.1 → Internet & Security → Wi-Fi Mode - Client
  4. Enter SSID and password → Save

Shelly only supports 2.4 GHz networks. 5 GHz networks will not appear in the scan.

Step 2 — Find the device address

Shelly Gen1 devices support mDNS (Zeroconf). You can reach the device using a hostname instead of an IP address:

1

shelly<model>-<MAC>.local

For example: shelly1pm-AABBCCDDEE.local (MAC address in uppercase hex, no colons).

Recommended: use the TapHome IP Scanner. Open the TapHome app and use the IP Scanner (Settings → Network → Scan). The scanner will discover devices on your network and show both the IP address and the mDNS hostname. Use the hostname instead of the IP address for a more reliable connection — it stays the same even if the device’s IP changes after a router reboot.

Alternative methods to find the IP address:

  • Shelly app: Device detail → Device info → IP address
  • Shelly web UI: Connect to the device AP before Wi-Fi setup — the IP is shown after saving
  • Router DHCP table: Look for a hostname like shelly1pm-AABBCCDDEE

Step 3 — Configure in TapHome

  1. In TapHome, add a new Packet Parser (HTTP) module
  2. Address: enter the mDNS hostname (e.g., shelly1pm-AABBCCDDEE.local) or IP address from Step 2
  3. Port: 80 (default, no change needed)
  4. Import the template — TapHome will poll /status to read device state

HTTP authentication is disabled by default on Shelly devices. If you have enabled login protection, TapHome does not support HTTP Basic Auth at this time — keep auth disabled for TapHome integration.

Available devices

Shelly Dimmer2 Module
Service Attributes
WiFi

Shelly Dimmer2

Service Attributes
Wifi
 VAR response := SENDHTTPREQUEST("/settings");
 IF response.IsSuccess
  VAR content := response.Content;
  RETURN(PARSEJSON(content, "$.wifi_sta.ssid"));
  End
Brightness Dimmer

Dimmer level 0-100% with configurable fade transition (0-5000 ms)

numeric Unit: %
Service Attributes
Transition
Service Actions
Transition

Brightness

Read level
VAR response := SENDHTTPREQUEST("/light/0");
 IF response.IsSuccess
  VAR content := response.Content;
  RETURN(PARSEJSON(content, "brightness")/100);
 ELSE
  ADDERROR(response.StatusCode + " (" + response.ReasonPhrase + ")");
  RETURN(NaN);
 END
Write level
VAR response := SENDHTTPREQUEST("/light/0?brightness=" + Le*100);
IF response.IsSuccess = false
 ADDERROR(response.StatusCode);
 END
Service Attributes
Transition
 VAR response := SENDHTTPREQUEST("/light/0");
 IF response.IsSuccess
  VAR content := response.Content;
  RETURN(PARSEJSON(content, "transition") + " ms");
 END
Service Actions
Transition
Parameters: Transition time [ms] (0–5000 G)
 VAR response := SENDHTTPREQUEST("/light/0?transition=" + G);
Electric Meter Electricity Meter Read-only

Power consumption and energy metering — instantaneous power (kW) and cumulative energy (kWh)

numeric Unit: W / kWh

Electric Meter

Read total consumption
VAR response := SENDHTTPREQUEST("/status");
 IF response.IsSuccess
  VAR content := response.Content;
 VAR responseHeaders := response.Headers;
 RETURN(PARSEJSON(content, "$..meters..total")/60000);
 ELSE
 ADDERROR(response.StatusCode + " (" + response.ReasonPhrase + ")");
  RETURN(NaN);
 END
Read demand
VAR response := SENDHTTPREQUEST("/status");
 IF response.IsSuccess
  VAR content := response.Content;
 VAR responseHeaders := response.Headers;
 RETURN(PARSEJSON(content, "$..meters..power")/1000);
 ELSE
 ADDERROR(response.StatusCode + " (" + response.ReasonPhrase + ")");
  RETURN(NaN);
 END
Light Switch
boolean
Values / States: ON · OFF

Light

Read switch state
VAR response := SENDHTTPREQUEST("/light/0");
 IF response.IsSuccess
  VAR content := response.Content;
  RETURN(PARSEJSON(content, "ison"));
 ELSE
  ADDERROR(response.StatusCode + " (" + response.ReasonPhrase + ")");
  RETURN(NaN);
 END
Write switch state
var Ru := Switch(St, 1, "on", "off");
 VAR response := SENDHTTPREQUEST("/light/0?turn=" + Ru);
 IF response.IsSuccess = false
  ADDERROR(response.StatusCode);
 END
Connection: Packet Parser → HTTP
Possible improvements (9)
  • Brightness (via /status) — Current brightness also available in /status → lights[0].brightness; template uses /light/0 instead
  • Meter Validity — Measurement validity flag, available in /status response
  • Internal Temperature — Internal device temperature in °C, available in /status response
  • Overtemperature Protection — Overtemperature protection triggered flag, threshold 95°C
  • Night Mode — Night mode with start/end time and max brightness — configurable via /settings/night_mode
  • Switch Inputs (SW1, SW2) — Two physical switch inputs available in /status → inputs[0].input and inputs[1].input
  • WiFi Signal Strength — WiFi RSSI in dBm, available in /status response
  • Auto-off Timer — Auto-off timer in seconds, could be added as service action parameter
  • Incremental Dimming — Step-based dimming (dim up/down/stop with configurable step size 1-100)
