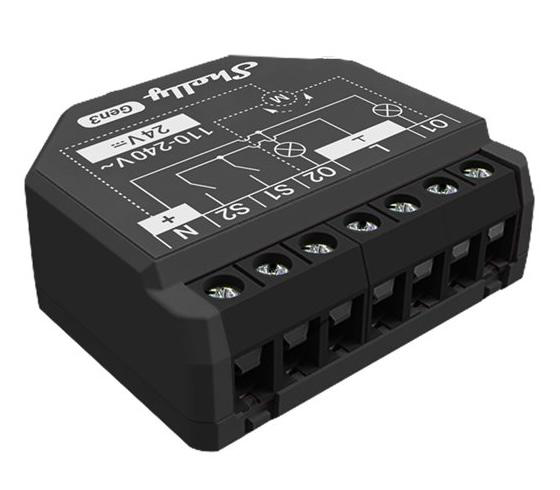

Shelly 2PM Gen3

Packet Parser → HTTP

Submitted by

Last updated: 03. 2026

Shelly 2PM Gen3 Product Page

The Shelly 2PM Gen3 is a compact dual-channel Wi-Fi relay module with built-in power metering. It fits behind a standard wall switch and can control two independent circuits up to 10 A each (16 A total at 230 V AC) or a single motorized cover/blind. TapHome communicates with the device over HTTP using the Gen2+/Gen3 JSON-RPC 2.0 API on the local network — no cloud connection is required.

The device supports two operation profiles — switch and cover — selectable through the Shelly web UI or via the TapHome service action. In switch profile, both relay outputs (O1 and O2) operate independently with per-channel power monitoring. In cover profile, the two outputs drive a single motor for roller shutters, blinds, or curtains, with position control, tilt/slat support, and calibration.

Unlike the Shelly 1PM Gen3, which controls a single circuit, the 2PM Gen3 provides dual-channel control or motorized cover support. Both share the same Gen3 platform with an ESP processor (8 MB flash), up to 6 concurrent HTTP connections, and Matter upgradeability.

Configuration

The Shelly 2PM Gen3 connects over Wi-Fi. During TapHome template import, enter the device’s IP address (default placeholder 192.168.0.1).

Authentication must be disabled on the Shelly device for TapHome integration. TapHome does not support HTTP Digest Auth used by Gen2+/Gen3 devices. Open the Shelly web UI (http://{device-ip}) → Settings → Authentication and ensure it is turned off.

If ECO mode is enabled on the Shelly device, it may cause communication timeouts due to the fast poll intervals used by the template (2.5–3 seconds). Disable ECO mode in the Shelly web UI if you experience intermittent connectivity issues.

Profile selection

The Shelly 2PM Gen3 operates in one of two profiles at a time. The active profile determines which TapHome devices are functional:

Switch profile — enables both relay switches (Switch 1 and Switch 2) with independent power monitoring. The cover and blind devices will show a profile error.
Cover profile — enables the cover (roller shutter) and blind (venetian with tilt) devices. The switch devices will show a profile error.

The active profile is visible as a module-level service attribute (“Profile”) in TapHome. To change the profile, use the Set Profile service action at the module level, or switch it in the Shelly web UI. After changing the profile, the device reboots and only the devices matching the new profile will operate without errors.

The template includes all four device types (2 switches + cover + blind), but only the devices matching the active profile will work. Devices on the wrong profile display an error message such as “Profile is not set to switch” or “Profile is not set to cover” — this is expected behavior, not a malfunction.

Cover calibration

When using the cover profile, the motor travel limits must be calibrated before position control works. Until calibration is complete, the template will display a “Calibration is required” error. Calibrate either through the Shelly web UI or by triggering the Start automatic calibration service action in TapHome. During calibration, the cover runs fully open and fully closed to measure travel distances.

Device capabilities

Relay control (switch profile)

The template exposes two independent relay switches. Each switch reads its state from /rpc/Switch.GetStatus?id={0,1} (output field, boolean) and controls the relay via /rpc/Switch.Set?id={0,1}&on=true|false.

Each switch also exposes service attributes for per-channel monitoring:

Temperature — internal device temperature in °C (temperature.tC)
Energy consumption — cumulative energy in Wh (aenergy.total)
Power demand — real-time power in W (apower)
Electric voltage — supply voltage in V (voltage)
Electric current — load current in A (current)
Frequency — AC network frequency in Hz (freq)
Power Factor — power factor value (pf)

The switches update every 2.5 seconds.

Cover control (cover profile)

The cover device controls a motorized roller shutter, curtain, or awning. It reads position from /rpc/Cover.GetStatus?id=0 (current_pos and target_pos fields, 0–100) and writes via /rpc/Cover.GoToPosition?id=0&pos=N. The template inverts the position scale so that 0 = fully open and 100 = fully closed in TapHome.

The cover exposes service attributes:

Temperature — internal device temperature in °C
Energy consumption — cumulative motor energy in Wh
Power demand — real-time motor power in W
Electric voltage — supply voltage in V
Electric current — motor current in A

A Start automatic calibration service action is available to initiate cover calibration directly from TapHome.

The blind device extends the cover with tilt/slat control for venetian blinds. In addition to position, it reads and writes slat position (slat_pos) via /rpc/Cover.GoToPosition?id=0&pos=N&slat_pos=M. Both position and tilt scales are inverted (0 = open, 100 = closed in TapHome).

The blind exposes the same service attributes as the cover, plus:

Slat — shows whether slat control is enabled or disabled (from Cover.GetConfig → $.slat.enable)
Slat open time — configured slat opening duration in seconds
Slat close time — configured slat closing duration in seconds

Known template issue: The “Slat close time” service attribute reads $.slat.open_time instead of $.slat.close_time from the Cover configuration. Both slat time attributes currently display the same value (the open time). This will be corrected in a future template revision.

Two service actions are available on the blind device:

Start automatic calibration — initiates cover position calibration
Set Slat — enables slat control and configures open/close times (0.1–5 seconds each) via /rpc/Cover.SetConfig

Slat/tilt control must be enabled before the blind device can control tilt position. If slat position is not available from the device, the blind will show an error “Slat position must be enabled for blinds”. Use the Set Slat service action to enable it and set the open/close durations.

Service diagnostics

The template exposes module-level service attributes for device monitoring:

WiFi — connected SSID name
IP address — current station IP
Signal strength — WiFi RSSI in dB
MAC — device MAC address
Profile — currently active device profile (switch or cover)

The module read script also checks for available firmware updates and pending restart requirements, surfacing these as warnings in the TapHome interface.

Service actions

Three service actions are available at the module level:

Update firmware — triggers a firmware update to the latest stable release via /rpc/Shelly.Update
Reboot — triggers a device reboot via /rpc/Shelly.Reboot
Set Profile — switches between cover and switch operating modes via /rpc/Shelly.SetProfile

Additional capabilities

The Shelly 2PM Gen3 also exposes physical input states (input:0, input:1), returned/exported energy counters, device uptime, RAM usage, and device time in its RPC responses. An auto-off timer is available via the toggle_after parameter, overpower protection can be configured via Switch.SetConfig → power_limit, and energy counters can be reset via /rpc/Switch.ResetCounters. In cover mode, direct open/close/stop commands and cover movement state (open/opening/closed/closing/stopped/calibrating) are available. These capabilities can be added in a future template update.

Troubleshooting

Device not responding

Verify the Shelly is connected to Wi-Fi and has a valid IP address
Try using the mDNS hostname (shelly2pmg3-AABBCCDDEE.local) instead of the IP address — the IP may have changed after a DHCP renewal
Open http://{device-ip}/rpc/Shelly.GetDeviceInfo in a browser — if it responds with JSON, the device is reachable
Check that TapHome Core and Shelly are on the same network / VLAN
Confirm authentication is disabled on the Shelly device

Profile mismatch errors

If a device shows “Profile is not set to switch” or “Profile is not set to cover”:

Check which profile is currently active — the “Profile” service attribute at the module level shows the current mode
Switch to the correct profile using the Set Profile service action, or remove unused devices from TapHome
After switching profiles, the device reboots automatically — allow a few seconds for reconnection

Cover position not working

Verify the device is in cover profile — switch profile does not expose cover functionality
Run the Start automatic calibration service action — position control requires completed calibration
Check that the motor is connected correctly to O1 and O2 terminals
Poll /rpc/Cover.GetStatus?id=0 manually and verify pos_control is true

Confirm slat control is enabled — check the “Slat” service attribute (should show “Enabled”)
If disabled, use the Set Slat service action to enable it and configure open/close times
Verify the blind motor supports tilt operation — roller shutters without tilt ignore slat commands

Overtemperature warning

The Shelly 2PM Gen3 has internal thermal protection. If the device temperature exceeds safe limits, the temperature reading in the device service attributes will increase. Ensure adequate ventilation around the device, especially when switching high loads continuously. The maximum switching current is 10 A per channel with 16 A total (18 A peak).

Gen2+/Gen3 Shelly devices support up to 6 concurrent HTTP connections. While this is a significant improvement over Gen1 (2 connections), avoid polling from too many systems simultaneously (TapHome, Home Assistant, custom scripts) to prevent connection exhaustion. The Shelly 2PM Gen3 template uses up to 4 concurrent endpoints per poll cycle, leaving limited headroom for additional connections.

How to install in TapHome

Prerequisites

Shelly device installed and powered on
Local Wi-Fi network (2.4 GHz)
TapHome CCU on the same network

Step 1 — Connect Shelly to Wi-Fi

Option A — Shelly app (recommended):

Download the Shelly app (iOS / Android)
Tap + → Add Device and follow the Bluetooth pairing wizard
Enter your Wi-Fi credentials when prompted

Option B — AP mode (no app):

On first power-up the device creates a hotspot: ShellyXXX-AABBCCDDEE
Connect your phone/PC to that hotspot
Open http://192.168.33.1 → Internet & Security → Wi-Fi Mode - Client
Enter SSID and password → Save

Shelly only supports 2.4 GHz networks. 5 GHz networks will not appear in the scan.

Step 2 — Find the device address

Shelly Gen1 devices support mDNS (Zeroconf). You can reach the device using a hostname instead of an IP address:

1
shelly<model>-<MAC>.local

For example: shelly1pm-AABBCCDDEE.local (MAC address in uppercase hex, no colons).

Recommended: use the TapHome IP Scanner. Open the TapHome app and use the IP Scanner (Settings → Network → Scan). The scanner will discover devices on your network and show both the IP address and the mDNS hostname. Use the hostname instead of the IP address for a more reliable connection — it stays the same even if the device’s IP changes after a router reboot.

Alternative methods to find the IP address:

Shelly app: Device detail → Device info → IP address
Shelly web UI: Connect to the device AP before Wi-Fi setup — the IP is shown after saving
Router DHCP table: Look for a hostname like shelly1pm-AABBCCDDEE

Step 3 — Configure in TapHome

In TapHome, add a new Packet Parser (HTTP) module
Address: enter the mDNS hostname (e.g., shelly1pm-AABBCCDDEE.local) or IP address from Step 2
Port: 80 (default, no change needed)
Import the template — TapHome will poll /status to read device state

HTTP authentication is disabled by default on Shelly devices. If you have enabled login protection, TapHome does not support HTTP Basic Auth at this time — keep auth disabled for TapHome integration.

Available devices

Shelly 2PM Gen3 Module

Service Attributes

WiFi
IP address
Signal strength
MAC
Profile	Active device profile — switch (dual relay) or cover (motorized blind/shutter)

Service Actions

Update firmware
Reboot
Set Profile	Switch between cover and switch operating modes — device reboots after profile change

Custom Variables

Shelly 2PM Gen3

Read (module)

VAR response := SENDHTTPREQUEST("/rpc/Sys.GetStatus");
IF response.IsSuccess
    Sys.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/Sys.GetConfig");
IF response.IsSuccess
    Sys.GetConfig := response.Content;
END

response := SENDHTTPREQUEST("/rpc/WiFi.GetStatus");
IF response.IsSuccess
    WiFi.GetStatus := response.Content;
END

if ! ISNULL(parsejson(Sys.GetStatus, "available_updates.stable", true))
    addwarning("New firmware update is available");
end

if parsejson(Sys.GetStatus, "restart_required", true)
    addwarning("Restart required");
end

Service Attributes

Wifi

PARSEJSON(WiFi.GetStatus, "ssid")

${ipAddress}

PARSEJSON(WiFi.GetStatus, "sta_ip")

${xml_signal_strength} [dB]

PARSEJSON(WiFi.GetStatus, "rssi")

MAC

PARSEJSON(Sys.GetStatus, "mac")

Profile

PARSEJSON(Sys.GetConfig, "$.device.profile");

Service Actions

${xml_update_fw}

VAR response := SENDHTTPREQUEST("/rpc/Shelly.Update?stage=\"stable\"");
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

${restart}

VAR response := SENDHTTPREQUEST("/rpc/Shelly.Reboot");
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

Set Profile

Parameters: Profile

VAR response := SENDHTTPREQUEST("/rpc/Shelly.SetProfile?name=\"" +
switch(prof,
0, "cover",
1, "switch",
"")
+ "\"");
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

Switch 1 Switch

Relay output 1 with per-channel power monitoring — requires switch profile

boolean

Values / States: ON · OFF

Switch 1

Read switch state

VAR response := SENDHTTPREQUEST("/rpc/Switch.GetStatus?id=" + ID);
IF response.IsSuccess
    Switch.GetStatus := response.Content;
END
return(PARSEJSON(Switch.GetStatus, "$.output", true));

Write switch state

VAR response := SENDHTTPREQUEST("rpc/Switch.Set?id=" + ID + "&on=" + if(St,"true","false"));
IF response.IsSuccess = false
  ADDERROR(response.StatusCode);
END

Read (module)

if PARSEJSON(Sys.GetConfig, "$.device.profile") != "switch"
	adderror("Profile is not set to switch (" + PARSEJSON(Sys.GetConfig, "$.device.profile") + ")");
end

VAR response := SENDHTTPREQUEST("/rpc/Switch.GetStatus?id=" + ID);
IF response.IsSuccess
    Switch.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/Switch.GetConfig?id=" + ID);
IF response.IsSuccess
    Switch.GetConfig := response.Content;
END

if ! ISNULL(parsejson(Switch.GetStatus, "errors", true))
    adderror("Error: " + parsejson(Switch.GetStatus, "errors"));
end

Service Attributes

${device_variable_realtemperature} [°C]

parsejson(Switch.GetStatus, "$.temperature.tC", true)

${device_variable_electricityconsumption} [Wh]

parsejson(Switch.GetStatus, "$.aenergy.total", true)

${device_variable_electricitydemand} [W]

parsejson(Switch.GetStatus, "$.apower", true)

${valueLogType_ElectricVoltage} [V]

parsejson(Switch.GetStatus, "$.voltage", true)

${valueLogType_ElectricCurrent} [A]

parsejson(Switch.GetStatus, "$.current", true)

${frequency} [Hz]

parsejson(Switch.GetStatus, "$.freq", true)

Power Factor

parsejson(Switch.GetStatus, "$.pf", true)

Switch 2 Switch

Relay output 2 with per-channel power monitoring — requires switch profile

boolean

Values / States: ON · OFF

Switch 2

Read switch state

VAR response := SENDHTTPREQUEST("/rpc/Switch.GetStatus?id=" + ID);
IF response.IsSuccess
    Switch.GetStatus := response.Content;
END
return(PARSEJSON(Switch.GetStatus, "$.output", true));

Write switch state

VAR response := SENDHTTPREQUEST("rpc/Switch.Set?id=" + ID + "&on=" + if(St,"true","false"));
IF response.IsSuccess = false
  ADDERROR(response.StatusCode);
END

Read (module)

if PARSEJSON(Sys.GetConfig, "$.device.profile") != "switch"
	adderror("Profile is not set to switch (" + PARSEJSON(Sys.GetConfig, "$.device.profile") + ")");
end

VAR response := SENDHTTPREQUEST("/rpc/Switch.GetStatus?id=" + ID);
IF response.IsSuccess
    Switch.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/Switch.GetConfig?id=" + ID);
IF response.IsSuccess
    Switch.GetConfig := response.Content;
END

if ! ISNULL(parsejson(Switch.GetStatus, "errors", true))
    adderror("Error: " + parsejson(Switch.GetStatus, "errors"));
end

Service Attributes

${device_variable_realtemperature} [°C]

parsejson(Switch.GetStatus, "$.temperature.tC", true)

${device_variable_electricityconsumption} [Wh]

parsejson(Switch.GetStatus, "$.aenergy.total", true)

${device_variable_electricitydemand} [W]

parsejson(Switch.GetStatus, "$.apower", true)

${valueLogType_ElectricVoltage} [V]

parsejson(Switch.GetStatus, "$.voltage", true)

${valueLogType_ElectricCurrent} [A]

parsejson(Switch.GetStatus, "$.current", true)

${frequency} [Hz]

parsejson(Switch.GetStatus, "$.freq", true)

Power Factor

parsejson(Switch.GetStatus, "$.pf", true)

Cover Slide

Motorized roller shutter or curtain with position control — requires cover profile and calibration

numeric Unit: %

Service Attributes

Temperature

Energy consumption

Power demand

Electric voltage

Electric current

Service Actions

Start automatic calibration

Cover

Read (module)

if PARSEJSON(Sys.GetConfig, "$.device.profile") != "cover"
	adderror("Profile is not set to cover (" + PARSEJSON(Sys.GetConfig, "$.device.profile") + ")");
end

VAR response := SENDHTTPREQUEST("/rpc/Cover.GetStatus?id=" + ID);
IF response.IsSuccess
    Cover.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/Cover.GetConfig?id=" + ID);
IF response.IsSuccess
    Cover.GetConfig := response.Content;
END

if ! parsejson(Cover.GetStatus, "$.pos_control", true)
    #adderror("${presence_calibration_required}");
    adderror("Calibration is required");
end

if ! ISNULL(parsejson(Cover.GetStatus, "errors", true))
    adderror("Error: " + parsejson(Cover.GetStatus, "errors"));
end

Read blind level

var pos := PARSEJSON(Cover.GetStatus, "$.current_pos", true);
if ! isnull(PARSEJSON(Cover.GetStatus, "$.target_pos", true))
	pos := PARSEJSON(Cover.GetStatus, "$.target_pos", true);
end

return(linear(pos,0,1,100,0));

Write blind level

VAR response := SENDHTTPREQUEST("rpc/Cover.GoToPosition?id=" + ID + "&pos=" + round(linear(Bl,0,100,1,0)));
IF response.IsSuccess = false
  ADDERROR(response.StatusCode);
END

response := SENDHTTPREQUEST("/rpc/Cover.GetStatus?id=" + ID);
IF response.IsSuccess
    Cover.GetStatus := response.Content;
END

Service Attributes

${device_variable_realtemperature} [°C]

parsejson(Cover.GetStatus, "$.temperature.tC", true)

${device_variable_electricityconsumption} [Wh]

parsejson(Cover.GetStatus, "$.aenergy.total", true)

${device_variable_electricitydemand} [W]

parsejson(Cover.GetStatus, "$.apower", true)

${valueLogType_ElectricVoltage} [V]

parsejson(Cover.GetStatus, "$.voltage", true)

${valueLogType_ElectricCurrent} [A]

parsejson(Cover.GetStatus, "$.current", true)

Service Actions

${start_automatic_calibration}

VAR response := SENDHTTPREQUEST("/rpc/Cover.Calibrate?id=" + ID);
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

Blind Blind

Venetian blind with position and tilt/slat control — requires cover profile, calibration, and slat enabled

numeric Unit: %

Service Attributes

Temperature
Energy consumption
Power demand
Electric voltage
Electric current
Slat	Whether tilt/slat control is enabled in Shelly Cover configuration
Slat open time
Slat close time

Service Actions

Start automatic calibration
Set Slat	Enable slat control and configure tilt open/close durations (0.1–5 seconds)

Blind

Read (module)

if PARSEJSON(Sys.GetConfig, "$.device.profile") != "cover"
	adderror("Profile is not set to cover (" + PARSEJSON(Sys.GetConfig, "$.device.profile") + ")");
end

VAR response := SENDHTTPREQUEST("/rpc/Cover.GetStatus?id=" + ID);
IF response.IsSuccess
    Cover.GetStatus := response.Content;
END

response := SENDHTTPREQUEST("/rpc/Cover.GetConfig?id=" + ID);
IF response.IsSuccess
    Cover.GetConfig := response.Content;
END

if ! parsejson(Cover.GetStatus, "$.pos_control", true)
    #adderror("${presence_calibration_required}");
    adderror("Calibration is required");
end

if ! ISNULL(parsejson(Cover.GetStatus, "errors", true))
    adderror("Error: " + parsejson(Cover.GetStatus, "errors"));
end

Read blind level

var pos := PARSEJSON(Cover.GetStatus, "$.current_pos", true);
var target := PARSEJSON(Cover.GetStatus, "$.target_pos", true);
var slatPos := PARSEJSON(Cover.GetStatus, "$.slat_pos", true);

BlSend := 0;
if BsSend = 0 and (Bs = 0 or Bs = 1)
	if (!isnull(target))
		DeltaPos := 0;
		return(linear(target,0,1,100,0));
	else
		return(linear(pos - DeltaPos,0,1,100,0));
	end
end

return(Bl);

Write blind level

var pos := PARSEJSON(Cover.GetStatus, "$.current_pos", true);
var target := PARSEJSON(Cover.GetStatus, "$.target_pos", true);
var slatPos := PARSEJSON(Cover.GetStatus, "$.slat_pos", true);

VAR response := SENDHTTPREQUEST("rpc/Cover.GoToPosition?id=0&pos=" + round(linear(Bl,0,100,1,0)));
BlSend := 1;
IF response.IsSuccess = false
  ADDERROR(response.StatusCode);
END

#response := SENDHTTPREQUEST("/rpc/Cover.GetStatus?id=0");
#IF response.IsSuccess
#    Cover.GetStatus := response.Content;
#END

Read blind slope

var pos := PARSEJSON(Cover.GetStatus, "$.current_pos", true);
var slatPos := PARSEJSON(Cover.GetStatus, "$.slat_pos", true);
var state := PARSEJSON(Cover.GetStatus, "$.state", true);
var date := NOW();

if ISNULL(slatPos)
    adderror("Slat position must be enabled for blinds");
    return(NaN);
end

if state = "closing" or state = "opening"
	BsSend := 1;
	return(Bs);
end

if BsSend > 1
	BsSend := 1;
	return(Bs);
else
	if BsSend = 1
		BsSend := 0;
		DeltaPos := pos - round(linear(Bl,0,100,1,0));
	end
	return(linear(slatPos,0,1,100,0));
end

Write blind slope

var date := NOW();
var pos := PARSEJSON(Cover.GetStatus, "$.current_pos", true);

if BlSend = 0
	VAR response := SENDHTTPREQUEST("rpc/Cover.GoToPosition?id=0&pos=" + pos + "&slat_pos=" + round(linear(Bs,0,100,1,0)));
	BsSend := date.UNIXTIME;
	IF response.IsSuccess = false
	  ADDERROR(response.StatusCode);
	END
end

#response := SENDHTTPREQUEST("/rpc/Cover.GetStatus?id=0");
#IF response.IsSuccess
#    Cover.GetStatus := response.Content;
#END

Service Attributes

${device_variable_realtemperature} [°C]

parsejson(Cover.GetStatus, "$.temperature.tC", true)

${device_variable_electricityconsumption} [Wh]

parsejson(Cover.GetStatus, "$.aenergy.total", true)

${device_variable_electricitydemand} [W]

parsejson(Cover.GetStatus, "$.apower", true)

${valueLogType_ElectricVoltage} [V]

parsejson(Cover.GetStatus, "$.voltage", true)

${valueLogType_ElectricCurrent} [A]

parsejson(Cover.GetStatus, "$.current", true)

Slat

if(parsejson(Cover.GetConfig, "$.slat.enable", true), "Enabled", "Disabled")

Slat open time [s]

parsejson(Cover.GetConfig, "$.slat.open_time ", true)

Slat close time [s]

parsejson(Cover.GetConfig, "$.slat.open_time ", true)

Service Actions

${start_automatic_calibration}

VAR response := SENDHTTPREQUEST("/rpc/Cover.Calibrate?id=" + ID);
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

Set Slat

Parameters: Open time [s] (0.1–5 ot), Close time [s] (0.1–5 ct)

VAR response := SENDHTTPREQUEST("/rpc/Cover.SetConfig?id=" + ID +
	"&config={\"slat\":{\"enable\":true, \"open_time\": " + ot +", \"close_time\": " + ct +"}}");
IF response.IsSuccess
    return("OK");
else
    return("Error");
END

Connection: Packet Parser → HTTP

Possible improvements (11)

Input 1 State — Physical switch/button input 1 state, available via /rpc/Input.GetStatus?id=0
Input 2 State — Physical switch/button input 2 state, available via /rpc/Input.GetStatus?id=1
Returned Energy — Returned/exported energy in Wh, for bi-directional metering scenarios
Uptime — Seconds since last reboot, available in Sys.GetStatus response
RAM Usage — Total and free RAM in bytes, available in Sys.GetStatus response
Device Time — Current device time in HH:MM format, available in Sys.GetStatus response
Auto-off Timer — Auto-reset timer in seconds via toggle_after parameter, could be added as switch parameter
Reset Energy Counters — Resets energy measurement counters (aenergy, ret_aenergy) for both channels
Overpower Protection — Configurable power limit threshold in Watts, relay turns off when exceeded
Cover State — Cover movement state (open/opening/closed/closing/stopped/calibrating), available in Cover.GetStatus
Cover Open/Close/Stop Commands — Direct open/close/stop commands without position parameter; template uses GoToPosition instead

Download Template

Sources

Shelly Gen2+/Gen3 RPC API Reference
shelly-api-docs.shelly.cloud 2026-03-27
Shelly Gen2+ Switch Component API
shelly-api-docs.shelly.cloud 2026-03-27
Shelly Gen2+ System (Sys) Component API
shelly-api-docs.shelly.cloud 2026-03-27
Shelly Gen2+ WiFi Component API
shelly-api-docs.shelly.cloud 2026-03-27
Home Assistant Shelly Integration
www.home-assistant.io 2026-03-27
Shelly 2PM Gen3 Knowledge Base
kb.shelly.cloud 2026-03-29

Shelly 2PM Gen3

Configuration

Profile selection

Cover calibration

Device capabilities

Relay control (switch profile)

Cover control (cover profile)

Blind control (cover profile)

Service diagnostics

Service actions

Additional capabilities

Troubleshooting

Device not responding

Profile mismatch errors

Cover position not working

Blind tilt not responding

Overtemperature warning

How to install in TapHome

Prerequisites

Step 1 — Connect Shelly to Wi-Fi

Step 2 — Find the device address

Step 3 — Configure in TapHome

Available devices

Sources
