Liquid Level Sensor

Modbus RTU

Submitted by

Last updated: 04. 2026

Requires external gateway
TapHome Modbus Gateway — product page

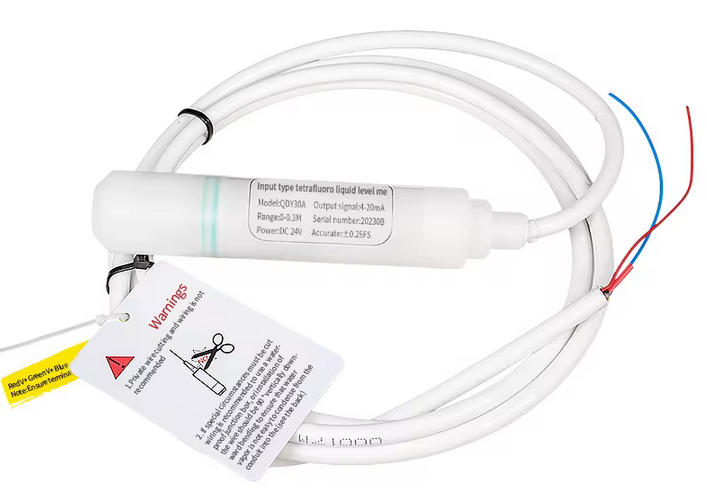

A generic Modbus RTU submersible hydrostatic liquid level sensor for monitoring water level in tanks, wells, or retention basins. The sensor communicates over RS-485 half-duplex and reports the measured level via holding register H:4. The TapHome template reads the measurement value with automatic decimal point conversion, supporting meters (m) and centimeters (cm) as display units.

This template is designed for generic Chinese-manufactured pressure/level transmitters that follow the same Modbus register map. The sensor is typically powered by 12-36 V DC and uses a 2-wire RS-485 connection to the TapHome Modbus Gateway.

Hardware connection

The sensor uses an RS-485 half-duplex interface for Modbus RTU communication. Connect the sensor to the TapHome Modbus Gateway:

A+ (RS-485 Data+) on the sensor to A+ on TapHome Modbus Gateway
B- (RS-485 Data-) on the sensor to B- on TapHome Modbus Gateway
GND to a common ground reference

The sensor also requires a separate DC power supply (typically 12-36 V DC, depending on the model). Power wires are separate from the RS-485 data wires.

Ensure a common ground reference between the sensor and the TapHome Modbus Gateway. Without proper grounding, Modbus communication may be unreliable or fail entirely.

Configuration

Default communication parameters

The sensor ships with the following default serial settings:

Parameter	Default
Baud rate	9600 bps
Data bits	8
Parity	None
Stop bits	1
Slave address	1

The baud rate can be changed via register H:1 (supported values: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200). After changing the baud rate, write 0 to register H:15 to save the setting to the user area.

Unit selection

The measurement unit is configured via register H:2. The TapHome template only supports two units:

H:2 value	Unit	Behavior
16	m (meters)	Returns the raw value directly (with decimal point conversion)
17	cm (centimeters)	Returns the value divided by 100
All others	MPa, KPa, bar, etc.	Returns NaN – not supported by the template

If the sensor is configured to a unit other than m (16) or cm (17), the TapHome template will show NaN. Verify the unit setting before importing the template.

Decimal point precision

H:3 value	Format	Division factor
0	####	1
1	###.#	10
2	##.##	100
3	#.###	1000
4	.####	10000

The TapHome template automatically divides the raw H:4 value by 10^(H:3) to produce the correct reading. For example, if H:3 = 1 (one decimal point) and H:4 = 2500, the displayed value is 250.0.

Import parameters

When importing the template in TapHome, two parameters are required:

Parameter	Description	Example
Slave Id	Modbus slave address of the sensor (1-255)	`1`
IP address	IP address of the TapHome Modbus Gateway	`192.168.1.100`

Device capabilities

Water level measurement

The template provides a single read-only sensor device – Water Level – that reads holding register H:4 (Int16). The ReadState script applies dynamic conversion:

Reads the raw integer value from H:4
Divides by 10^(H:3) to apply the decimal point setting
Switches on H:2 (unit): if unit = 16 (m), returns the value directly; if unit = 17 (cm), divides by 100; otherwise returns NaN

The sensor polls every 15 seconds.

Service diagnostics

The module exposes four service attributes for monitoring the sensor configuration:

Slave Address – current Modbus slave address (H:0)
Baud Rate – current communication speed, displayed as the actual baud rate value (e.g. 9600, not the register enum)
Unit – currently configured measurement unit (e.g. “m”, “cm”, “MPa”)
Decimal Points – current decimal point format (e.g. “###.#”)

A service action Rewrite Slave Address allows changing the sensor’s Modbus address (1-255) directly from TapHome without external tools. The action writes the new address and automatically saves it to the sensor’s user area.

Additional capabilities

The sensor also exposes registers for range zero point (H:5) and full scale point (H:6) calibration references, a zero-bit offset register (H:12) for fine-tuning the measurement output, a 4-byte IEEE 754 floating point measurement output (H:22-23), and serial parity configuration (H:37). A factory reset command (H:16) can restore all parameters to factory defaults. These can be added in a future template update.

If higher precision is needed, the floating point measurement at registers H:22-23 provides the same reading in IEEE 754 format (big-endian ABCD byte order) without the integer rounding of H:4.

Troubleshooting

Sensor returns NaN

Check register H:2 (Unit) – the template only supports unit 16 (m) and 17 (cm). All other units will return NaN
Use the Unit service attribute in TapHome to verify the current setting
If the unit is incorrect, use a Modbus tool to write the correct value to H:2, then write 0 to H:15 to save

No communication

Verify RS-485 wiring: A+ to A+, B- to B-, and common GND
Check that the baud rate matches between the sensor and TapHome (default: 9600, N, 8, 1)
Confirm the correct Slave ID was entered during template import
Verify the IP address points to the correct TapHome Modbus Gateway
If wires are swapped (A+/B-), reverse them – some sensors label pins differently

Incorrect readings

Verify the decimal point setting (H:3) matches the sensor’s factory configuration
Check the unit setting (H:2) – cm mode (17) divides by an additional factor of 100
For submersible sensors, ensure the probe is fully submerged and the cable is not kinked

Available devices

Liquid Level Sensor Module

Service Attributes

Slave Address

Baud Rate

Unit

Decimal Points

Service Actions

Rewrite Slave Address

Liquid level sensor - retenčná nádrž

Service Attributes

Slave Address

modbusr(H, 0, int16);

Baud Rate

SWITCH(modbusr(H, 1, int16),
	0, 1200,
	1, 2400,
	2, 4800,
	3, 9600,
	4, 19200,
	5, 38400,
	6, 57600,
	7, 115200,
      NaN
);

Unit

switch(modbusr(H, 2, int16),
	0, "MPa",
	1, "KPa",
	2, "Pa",
	3, "bar",
	4, "mbar",
	5, "Kgcm2",
	6, "PSI",
	7, "mH2O",
	8, "mmH2O",
	9, "inH2O",
	10, "H2O",
	11, "mHg",
	12, "mmHg",
	13, "inHg",
	14, "atm",
	15, "Torr",
	16, "m",
	17, "cm",
	18, "mm",
	19, "Kg",
	20, "°C",
	21, "PH",
	22, "°F",
	NaN
);

Decimal points

SWITCH(modbusr(H, 3, int16),
	0, "####",
	1, "###.#",
	2, "##.##",
	3, "#.###",
	4, "#.###",
	NaN
);

Service Actions

Rewrite the Slave Address

Parameters: Slave Address (1–255 SlaveAddr)

modbusw(SH, 0, int16, SlaveAddr);
modbusw(SH, 15, int16, 0);  # Save to user area

Water Level Variable Read-only

Liquid level measurement in meters or centimeters — reads the hydrostatic pressure sensor output with configurable decimal precision

Connection: Modbus RTU • 9600 baud• 8N1 • Slave ID: $[SlaveId]

Possible improvements (6)

H:5 Range Zero Point — Int16, transmitter range zero point — factory calibration reference
H:6 Range Full Point — Int16, transmitter range full scale point — factory calibration reference
H:12 Zero Bit Offset — Int16 (R/W via 0x06), zero-bit offset value — pressure output = calibration + offset. Factory default 0
H:22 Floating Point Measurement — 4-byte float (IEEE 754, big-endian ABCD), 2 registers starting at 0x0016 — same measurement as H:4 but in float format
H:37 Serial Check Bit — Int16 (R/W via 0x06); enum: 0=None, 1=Odd, 2=Even — serial parity configuration
H:16 Restore Factory Parameters — Write 1 to 0x0010 to restore factory defaults — resets address, baud rate, and calibration. Requires re-searching for transmitter

Download Template

Sources

Modbus RTU communication protocol documentation for pressure and level transmitter
