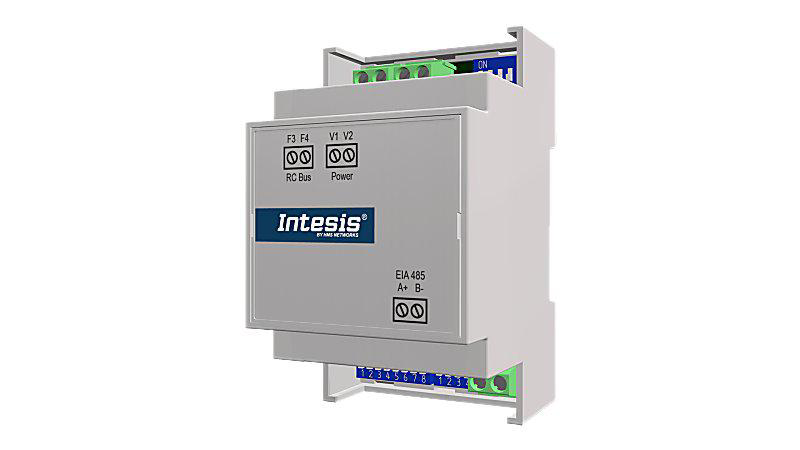

The IntesisBOX SM-RC-MBS-1 (order code INMBSSAM001R000) is a Modbus RTU gateway by Intesis (HMS Networks) for Samsung NON-NASA commercial and VRF air conditioners. The gateway connects to the Samsung indoor unit via the F3F4 V1V2 bus and exposes control and status registers over an EIA-485 (RS-485) serial interface.

Although the physical communication is Modbus RTU over RS-485, the TapHome template uses the Modbus TCP CCU model. TapHome Core connects to the gateway’s RS-485 bus directly via its built-in RS-485 port or through an external RS-485-to-TCP converter, depending on the installation.

The template provides full HVAC control: ON/OFF switching, operating mode selection, fan speed adjustment, vertical vane positioning, temperature setpoint with room temperature feedback, and error code monitoring.

Hardware connection

The gateway has three sets of plug-in terminal blocks:

TerminalFunction
F3, F4Samsung communication bus (polarity sensitive)
V1, V2Power supply from AC indoor unit (no external power needed)
EIA-485 A+, B-Modbus RTU bus to TapHome
Connection diagram

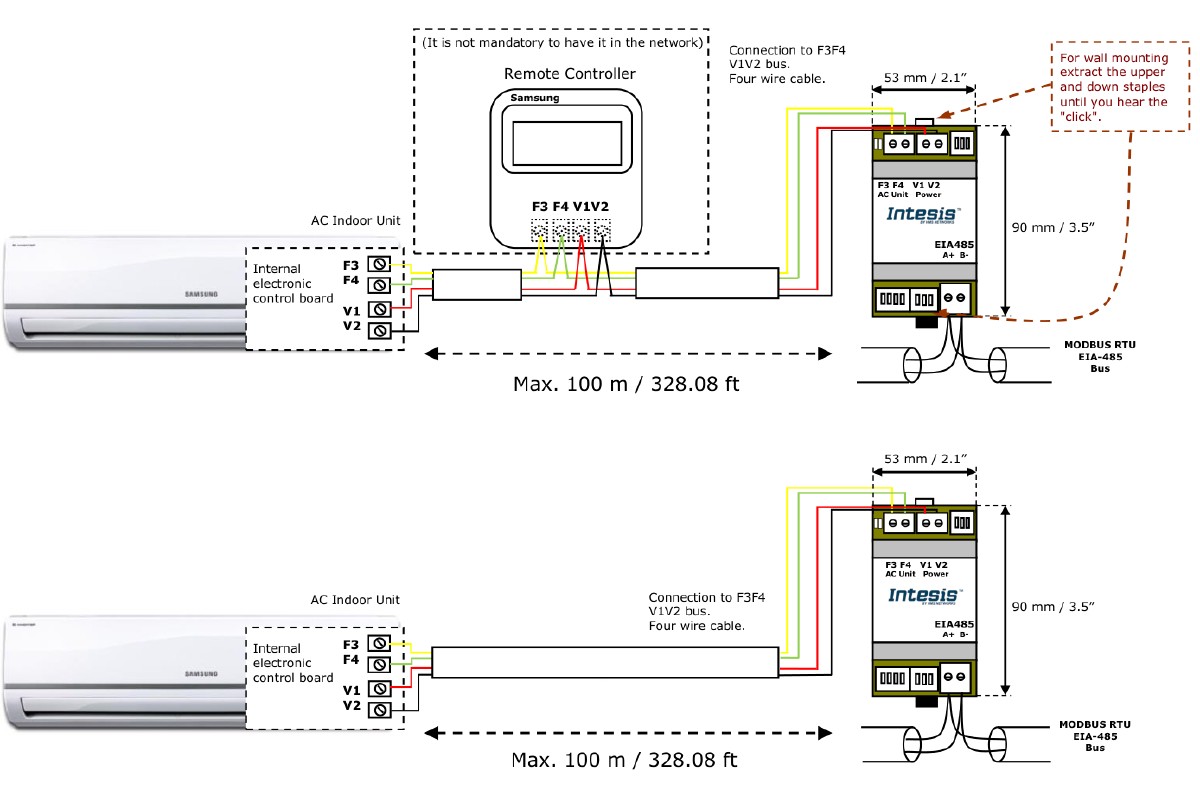

IntesisBOX INMBSSAM001R000 connection diagram — AC indoor unit, gateway, and Modbus RTU bus

Two connection scenarios are supported:

  1. With Samsung wired remote controller — connect the gateway as Slave in parallel with the remote controller (remote acts as Master on the F3F4 V1V2 bus).
  2. Without remote controller — connect the gateway directly to the F3F4 V1V2 bus as Master.

The F3F4 V1V2 bus is polarity sensitive. Maximum bus length is 100 m (328 ft). If a wired remote controller of the AC manufacturer is connected on the same bus, communication may shut down — configure Master/Slave roles correctly via DIP switch SW1-P1.

The EIA-485 (Modbus RTU) bus requires:

  • Correct polarity on A+ and B- terminals
  • Maximum distance: 1,200 m (3,937 ft)
  • 120 Ohm termination resistor at each end of the bus (the gateway has a built-in terminator activated via DIP switch SW4-P4)
  • Fail-safe biasing on the bus (supplied by the Modbus Master)
  • Only daisy-chain topology — loop or star topologies are not allowed

Configuration

DIP switch layout

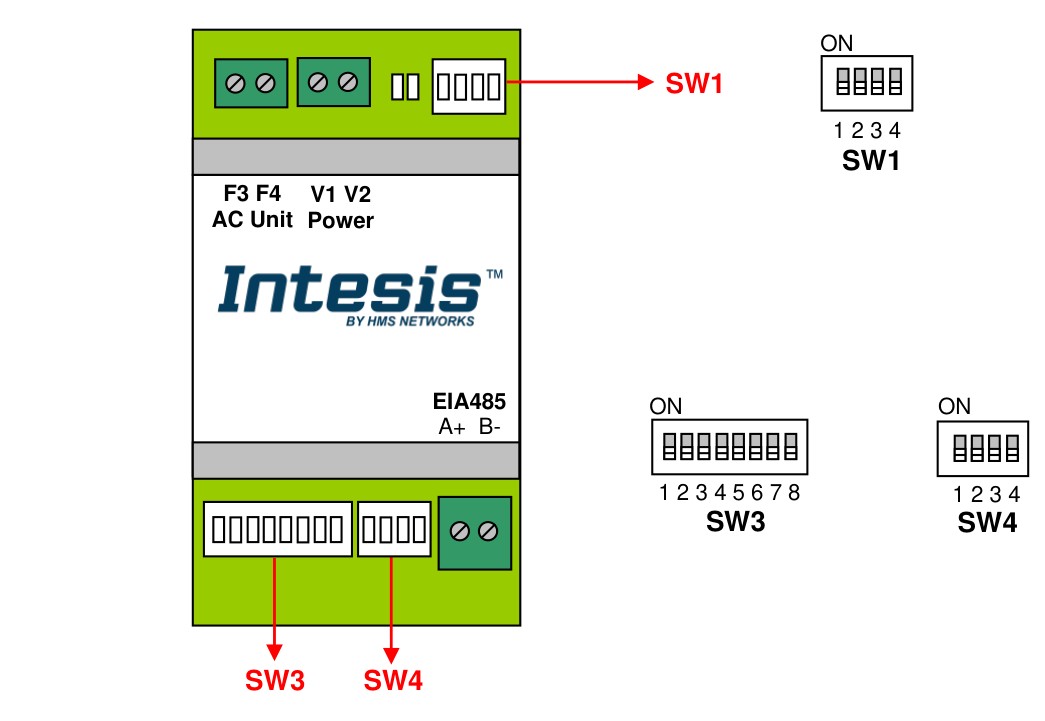

IntesisBOX INMBSSAM001R000 DIP switch locations — SW1, SW3, SW4

The gateway has three DIP switches: SW1 (AC unit features), SW3 (Modbus slave address and baud rate), and SW4 (temperature format, baud rate, termination).

All DIP switch changes require a full power cycle of the AC system to take effect.

SW1 — Master/Slave selection:

SW1-P1Mode
OFF (default)Slave — Samsung wired remote must be present as Master
ONMaster — no Samsung remote needed; if present, set remote to Slave

SW3/SW4 — Baud rate (SW3-P7, SW3-P8, SW4-P3):

Default is 9600 bps (SW3-P7=OFF, SW3-P8=ON, SW4-P3=OFF). Available rates: 2400, 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps.

SW3 — Modbus slave address (SW3-P1..6):

Binary encoding using 6 DIP switches for addresses 0–63. Default: address 1 (SW3-P1=ON, rest OFF).

SW4 — Temperature format and termination:

SwitchOFF (default)ON
SW4-P1Degrees (x1)Decidegrees (x10)
SW4-P2CelsiusFahrenheit
SW4-P4No terminationInternal 120 Ohm terminator on EIA-485 bus

The TapHome template expects decidegrees (x10) format (SW4-P1=ON, SW4-P2=OFF). In this mode, the gateway sends temperature values multiplied by 10 (e.g., 220 = 22.0 °C), and the template divides by 100 internally.

Communication format: 8N2 (8 data bits, no parity, 2 stop bits) by default. The gateway also auto-detects 8N1.

Adding the gateway in TapHome

When importing the template in TapHome, provide:

  • IP Address — the IP of the TapHome Core’s RS-485 interface or the RS-485-to-TCP converter
  • Port — Modbus TCP port (default: 502)
  • Slave ID — Modbus slave address configured on the gateway (default: 1)

Device capabilities

The template exposes 6 devices for controlling and monitoring the Samsung AC unit through the IntesisBOX gateway.

Power and mode control
  • AC Unit ON/OFF — switch to turn the AC unit on or off via holding register H:0.
  • AC Unit Mode — multi-value switch to select the operating mode: Auto, Heat, Dry, Fan, or Cool (H:1). Values 5–9 in the template are placeholders — Samsung units use only values 0–4.
  • AC Unit Fan Speed — multi-value switch for fan speed: Auto, Low, Mid, or High (H:2). The template includes additional positions (Mid 2, Position 5–7) for Samsung models that support more fan speeds.
Vane and thermostat
  • AC Unit Vane Position — multi-value switch for vertical vane (louver) position: Auto, Horizontal, Position 2–4, Swing, Vertical, and Swirl (H:3). Available positions depend on the Samsung indoor unit model.
  • AC Unit Thermostat — temperature setpoint (18–30 °C) via H:4 and current room temperature reference from the indoor unit via H:5. The gateway transmits temperatures in decidegrees (x10) and the template applies the appropriate scaling.
Error monitoring
  • AC Unit Error Code — read-only sensor showing the Samsung error code from H:11. A value of 0 means no error. A value of 65535 (0xFFFF) indicates a communication error between the gateway (or remote controller) and the AC indoor unit. Other values map to specific Samsung fault codes (indoor sensor errors, outdoor sensor errors, communication errors, protection faults) — over 40 codes are documented in the user manual.
Additional capabilities

The IntesisBOX SM-RC-MBS-1 also exposes Modbus registers for window contact input (automatic AC shutoff after configurable timeout), gateway and remote controller enable/disable, operation time counter, alarm status, external temperature reference with virtual temperature compensation, left/right vane position, return path temperature, and firmware version. These can be added to the TapHome template in a future update.

Troubleshooting

Error code 65535

Error code 65535 (-1 signed) indicates a communication failure between the IntesisBOX gateway and the Samsung AC indoor unit. Check:

  1. F3F4 V1V2 bus wiring and polarity
  2. Master/Slave DIP switch setting (SW1-P1) matches the installation scenario
  3. The AC unit is powered on
No Modbus communication
  1. Verify EIA-485 wiring polarity (A+ and B-)
  2. Confirm the slave address matches the DIP switch configuration on SW3
  3. Check the baud rate setting on SW3/SW4 — default is 9600 bps, 8N2
  4. Ensure the gateway is powered (it requires connection to the AC unit via V1V2)
  5. The green LED (L1) should flash briefly every 2 seconds during normal operation — continuous 500 ms blinking indicates a communication error
LED indicators
LEDPatternMeaning
L1 (green)100 ms ON / 1900 ms OFFNormal operation
L1 (green)500 ms ON / 500 ms OFFCommunication error
L2 (red)3 sec ONUnder voltage
L1 + L25 sec ONDevice startup
L1 + L2Alternating 500 ms blinkFlash checksum error

Available devices

IntesisBOX SM-RC-MBS-1 Module
ON/OFF Switch
Register: H:0 Bool
Values / States: ON · OFF

ON/OFF

Read switch state
MODBUSR(H, 0, Bool)
Write switch state
MODBUSWNE(H, 0, Bool, St)
Mode Multi-value Switch

Operating mode selector — Auto, Heat, Dry, Fan, Cool

Register: H:1 Int16 numeric
Values / States: Auto · Heat · Dry · Fan · Cool

Mode

Read switch state
MODBUSR(H, 1, Int16)
Write switch state
MODBUSWNE(H, 1, Int16, Mu)
Fan Speed Multi-value Switch

Fan speed selector — Auto, Low, Mid, High

Register: H:2 Int16 numeric
Values / States: Auto · Low · Position-5 · Mid · High · Mid-2 · Position-6 · Position-7

Fan Speed

Read switch state
MODBUSR(H, 2, Int16)
Write switch state
MODBUSWNE(H, 2, Int16, Mu)
Vane Position Multi-value Switch

Vertical vane (louver) position — Auto, Horizontal, Swing, Vertical, Swirl

Register: H:3 Int16 numeric
Values / States: Auto · Position-1 (Horizontal) · Position-2 · Position-3 · Position-4 · Swing · Vertical · Position-6 · Poistion-7 · Swirl

Vane Position

Read switch state
MODBUSR(H, 3, Int16)
Write switch state
MODBUSWNE(H, 3, Int16, Mu)
Thermostat Thermostat

Temperature setpoint (18–30 °C) and current room temperature from the indoor unit

Register: H:4 Int16 Unit: °C numeric

Thermostat

Read temperature
MODBUSR(H, 5, Int16) / 100
Read desired temperature
MODBUSR(H, 4, Int16) / 100
Write desired temperature
MODBUSWNE(H, 4, Int16, Se * 100)
Error Code Variable Read-only

Samsung error code — 0 = no error, 65535 = communication error, other values map to Samsung fault codes

Register: H:11 Int16 numeric

Error Code

Read
MODBUSR(H, 11, Int16)
Connection: Modbus TCP • Slave ID: $[SlaveId]
Possible improvements (10)
  • H:6 Window Contact — R/W, 0=Closed/1=Open — triggers AC shutoff after configurable timeout (H:13)
  • H:7 Gateway Disablement — R/W, enables/disables the gateway (stored in NV memory)
  • H:8 Remote Control Disablement — R/W, disables Samsung wired remote controller (stored in NV memory)
  • H:9 Operation Time — R/W, hours counter while AC is On (stored in NV memory, 0–65535 h)
  • H:10 Alarm Status — R, 0=No alarm/1=Alarm condition
  • H:22 External Temperature Reference (Modbus) — R/W, virtual temperature mechanism — provides external temp sensor from Modbus side with automatic setpoint compensation
  • H:23 Real Temperature Setpoint — R, actual setpoint applied to indoor unit (may differ from H:4 when virtual temp active)
  • H:26 Left/Right Vane Position — R/W, horizontal vane control (0=Auto, 10=Swing)
  • H:66 Return Path Temperature — R, return air temperature from AC unit
  • H:50 Software Version — R, gateway firmware version
