E.G.O. Smart Heater

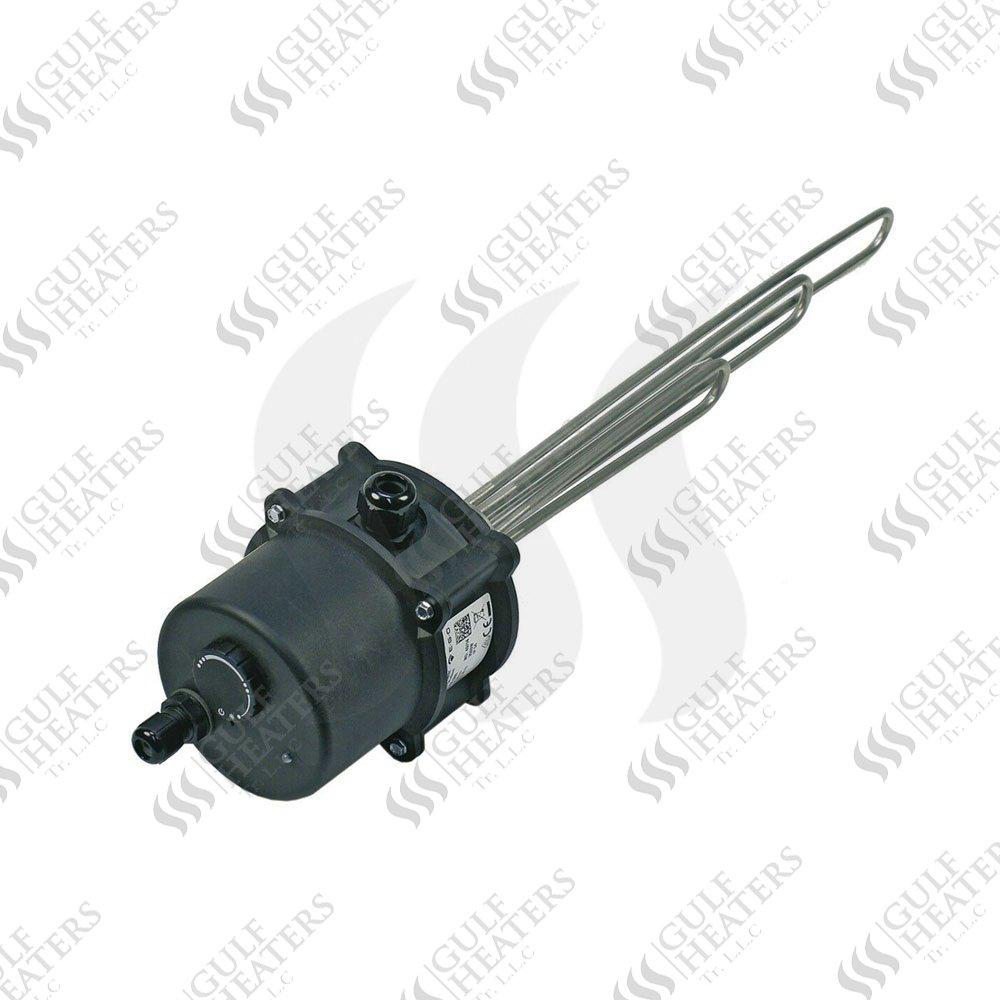

The E.G.O. Smart Heater is a screw-in immersion heater (Einschraubheizkörper) designed to convert surplus photovoltaic energy into hot water. Manufactured by E.G.O. Elektro-Gerätebau GmbH, it is available in two variants: RS485 Modbus RTU (29.65335.000) and Ethernet Modbus TCP (29.65335.100). The TapHome template connects via Modbus TCP to the Ethernet variant.

The heater provides three independent relay stages — 500W, 1000W, and 2000W — for a maximum output of 3500W in 500W increments. The template supports both manual power control and automatic mode, where the heater adjusts its power output based on total house consumption.

Hardware connection

The Ethernet variant (29.65335.100) connects directly to the local network via an Ethernet cable. No additional gateway or converter is required for Modbus TCP communication.

  • Protocol: Modbus TCP
  • Port: 502
  • Slave ID: 247 (fixed, not configurable)
  • Power supply: 230V / 16A (separate 16A fuse required)
  • Installation: Horizontal only — vertical installation is not permitted

The RS485 variant (29.65335.000) requires an RS485-to-TCP converter to work with TapHome via Modbus TCP. The wiring terminals are: A (Data+), B (Data−), C (GND). Connect the cable shield on one side only. Communication parameters for the RS485 variant: 19200 baud, even parity, 1 stop bit.

Configuration

No software configuration is required on the heater itself. The rotary selector on the device controls the maximum water temperature (40°C, 60°C, or 80°C) and operating mode (OFF / Frost Protection / Heating).

When importing the template in TapHome, provide:

  • IP Address — the heater’s IP on the local network
  • Slave ID — fixed at 247 (do not change the default)

Assign a static IP address or DHCP reservation to the heater in the router settings to prevent the address from changing after a power cycle.

Device capabilities

The template exposes 10 devices for power control, temperature monitoring, and relay status tracking.

Power control

Two writable variables control the heater’s operating mode:

  • Power Nominal Value — manual power setpoint in watts (0–3500W in 500W steps). Write a specific power level to activate manual mode. Write -1 to switch to automatic mode, which enables evaluation of the Home Total Power register. The activation signal must be refreshed every 60 seconds or the heater deactivates automatically (safety feature).

  • Home Total Power — total house power consumption in watts (Int32). In automatic mode (after writing -1 to Power Nominal Value), the heater reads this value and automatically selects the optimal relay combination based on available excess power. Negative values indicate grid export and trigger heating activation.

The 60-second timeout is a safety feature. TapHome must write to Power Nominal Value at least once per minute. If communication is interrupted, the heater will deactivate automatically.

Temperature monitoring
  • Boiler Water Temperature — current water temperature in °C (read-only). The heater continues heating until the maximum temperature set by the rotary selector is reached.
  • Minimum Temperature Threshold — minimum boiler temperature in °C before automatic heating activation (read-only in the template).
Relay monitoring

Each of the three heating relays has individual power and operating time tracking:

RelayPower stageActual PowerOperating Seconds
Relay 1500WCurrent power consumptionTotal operating time
Relay 21000WCurrent power consumptionTotal operating time
Relay 32000WCurrent power consumptionTotal operating time

The relay power readings show 0W (off) or the rated wattage when active. Operating seconds are cumulative counters that persist across power cycles.

Additional capabilities

The E.G.O. Smart Heater also exposes Modbus registers for PCB temperature monitoring, maximum temperature configuration, desired water temperature setpoint (software-controlled target temperature), total device operating time, total heating time, cumulative energy consumption, potentiometer position reading, relay status bitmask, relay switching cycle counters, and per-relay minimum ON/OFF time configuration. These can be added to the TapHome template in a future update.

Troubleshooting

No Modbus communication
  1. Verify the Ethernet cable is connected (for the 29.65335.100 variant)
  2. Confirm the IP address — check the router’s DHCP lease table
  3. Ensure TapHome Core and the heater are on the same network/subnet
  4. Check that no firewall is blocking port 502
  5. Use Slave ID 247 — this is fixed and cannot be changed
Heater deactivates unexpectedly

The most common cause is the 60-second activation timeout. TapHome must write to the Power Nominal Value register at minimum once per minute. Check the TapHome log for Modbus write errors or communication timeouts.

LED status indicators

The status LED on the device provides diagnostic information:

LED PatternMeaning
Steady greenCommunication OK, heating OFF
Green blinks (1–7×)Active heating — number of blinks indicates power level (1 = 500W … 7 = 3500W)
Continuous green blinkMaximum temperature reached
Steady orangeFrost protection active, temperature OK
Steady redCommunication to control unit disrupted
Blinking redSerious error — power cycle the device

Available devices

E.G.O. Smart Heater Module
Power Nominal Value Variable

Manual power setpoint in watts (0–3500W, 500W steps) — write -1 to enable automatic mode

Register: H:4864 Int16 Unit: W numeric

Power Nominal Value

Read
MODBUSR(H, 4864, Int16)
Write
MODBUSWNE(H, 4864, Int16, Va)
Home Total Power Variable

Total house power consumption — negative values indicate grid export and trigger automatic heating

Register: H:4865 Int32 Unit: W numeric

Home Total Power

Read
MODBUSR(H, 4865, Int32)
Write
MODBUSWNE(H, 4865, Int32, Va)
Boiler Water Temperature Temperature Sensor Read-only
Register: H:5124 Int16 Unit: °C

Boiler Water Temperature

Read temperature
MODBUSR(H, 5124, Int16)
Relay 1 Actual Power Variable Read-only

Current power of relay 1 (500W heating stage)

Register: H:4096 Int16 Unit: W

Relay 1 Actual Power

Read
MODBUSR(H, 4096, Int16)
Relay 2 Actual Power Variable Read-only

Current power of relay 2 (1000W heating stage)

Register: H:4128 Int16 Unit: W

Relay 2 Actual Power

Read
MODBUSR(H, 4128, Int16)
Relay 3 Actual Power Variable Read-only

Current power of relay 3 (2000W heating stage)

Register: H:4160 Int16 Unit: W

Relay 3 Actual Power

Read
MODBUSR(H, 4160, Int16)
Minimum Temperature Threshold Temperature Sensor Read-only

Minimum boiler temperature before automatic heating activation

Register: H:4617 UInt16 Unit: °C

Minimum Temperature Threshold

Read temperature
MODBUSR(H, 4617, UInt16)
Relay 1 Operating Seconds Variable Read-only
Register: H:5129 UInt32 Unit: s

Relay 1 Operating Seconds

Read
MODBUSR(H, 5129, UInt32)
Relay 2 Operating Seconds Variable Read-only
Register: H:5131 UInt32 Unit: s

Relay 2 Operating Seconds

Read
MODBUSR(H, 5131, UInt32)
Relay 3 Operating Seconds Variable Read-only
Register: H:5133 UInt32 Unit: s

Relay 3 Operating Seconds

Read
MODBUSR(H, 5133, UInt32)
Connection: Modbus TCP • Slave ID: $[SlaveId]
Possible improvements (11)
  • H:4613 PCB Temperature — Int16, °C, read-only — internal PCB board temperature
  • H:4618 Maximum Temperature Value — UInt16, °C, R/W — max allowed temperature (max 85°C)
  • H:4619 Desired Water Temperature — UInt16, °C, R/W — software-set target temp (0 = use potentiometer, max 85°C)
  • H:5120 Total Operating Seconds — UInt32, read-only — total device uptime in seconds
  • H:5122 Total Heating Seconds — UInt32, read-only — total seconds with active heating
  • H:5125 Total Energy Consumption — UInt32, read-only — cumulative energy consumed
  • H:5127 Potentiometer Position — Int16, °C, read-only — physical dial setting (default 60°C, max 80°C)
  • H:5128 Relay Status — UInt16, bitmask, read-only — 0x01=R1, 0x02=R2, 0x04=R3; multiply by 500 for watts
  • H:4099 Relay 1 Switching Cycles — UInt32, read-only — total switching cycles relay 1 (also H:4131, H:4163 for relays 2/3)
  • H:4101 Relay Min ON/OFF Times — UInt16, R/W — per-relay min ON time (default 10s) and min OFF time (default 110/170/230s). Addresses: H:4101–4102, H:4133–4134, H:4165–4166
  • H:4610 Restart Counter — UInt32, read-only — number of device restarts

Sources
