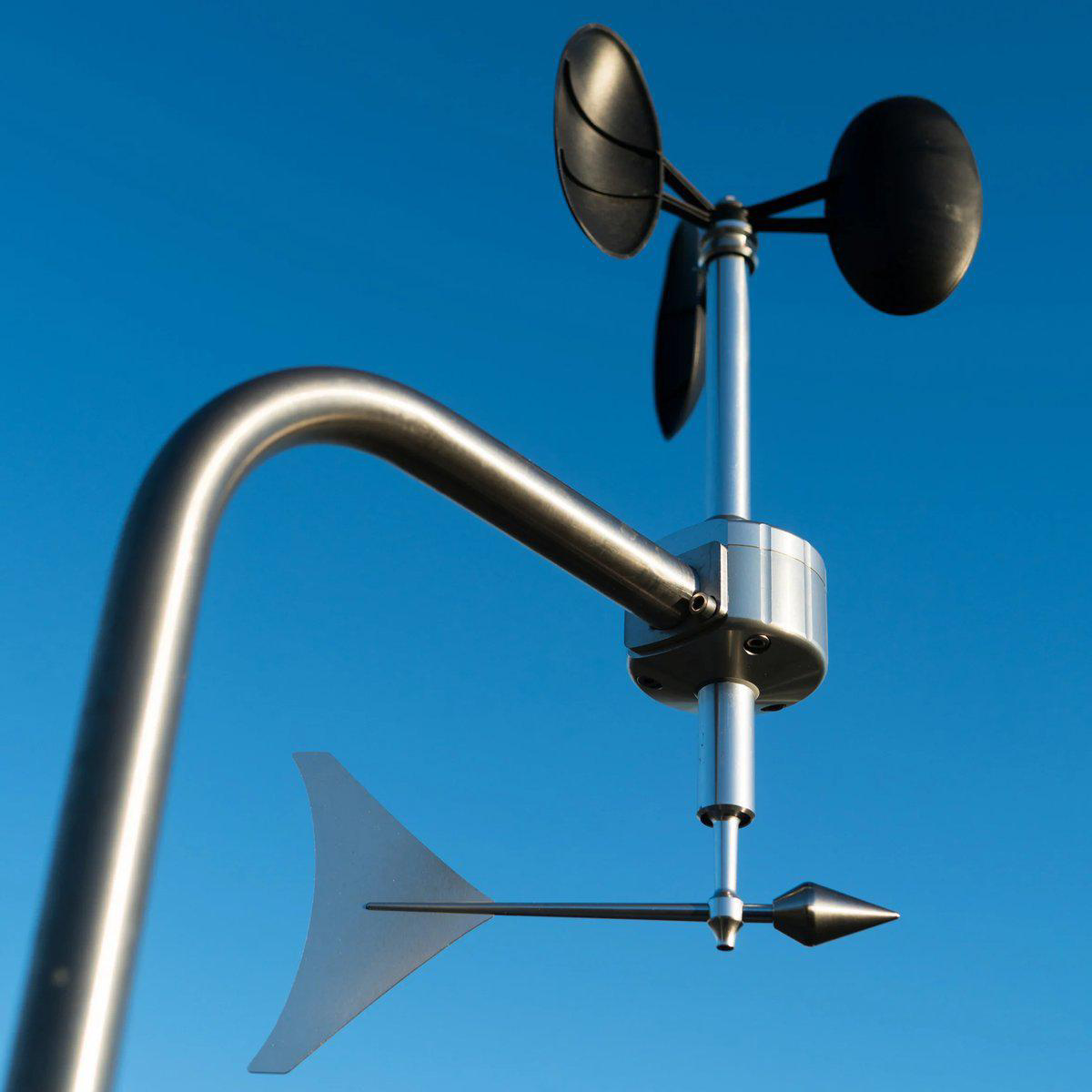

The Barani MeteoWind 2 is a combined cup anemometer and wind vane built by BARANI DESIGN Technologies (Slovakia). It exceeds WMO and MEASNET Class 1 accuracy standards and samples wind speed and direction at 10 Hz. The same template also covers the Heated MeteoWind 2, which shares identical wiring and an identical Modbus register map.
The sensor is natively a Modbus RTU / RS-485 device — it has no Ethernet port. The TapHome template is declared as Modbus TCP, so the sensor is connected through an RS-485-to-Ethernet gateway (a Modbus-RTU-to-TCP converter). The template polls five input registers every 1 second and exposes wind speed in km/h and wind direction in degrees.
Hardware connection
The sensor ships with a 5 m pigtail cable with a weather-sealed bayonet connector on the sensor side and tinned leads on the other. All BARANI DESIGN RS-485 sensors share the same wire-color scheme, so MeteoWind 2, Heated MeteoWind 2 and other Barani Modbus sensors are electrically interchangeable on the same bus.
Wiring

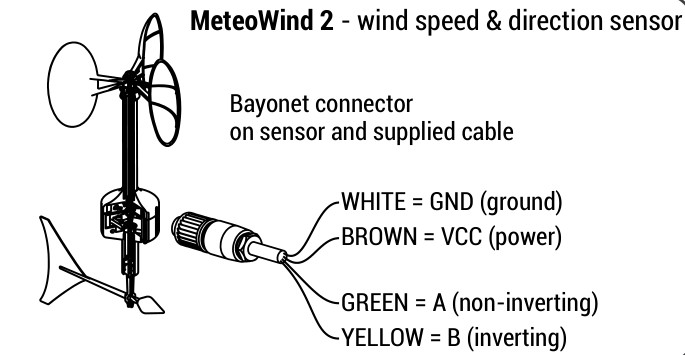

| Wire color | Function | Notes |
|---|---|---|
| Brown | VCC (+5 to +24 V DC) | Power positive. Inrush and reverse-polarity protected. |
| White | GND | Common ground for power and RS-485 reference. |
| Green | RS-485 A | Non-inverting data line (D+). |
| Yellow | RS-485 B | Inverting data line (D−). |
Some PLCs and gateways label their RS-485 terminals with reversed polarity. If the sensor does not respond after wiring, swap the Green and Yellow wires and retry — the Barani side of the cable follows the canonical A/B convention.
Gateway and bus topology
The TapHome template uses ModbusTcpCCU, so an RS-485-to-Ethernet gateway (Modbus-RTU-to-TCP converter) is required between the sensor and TapHome Core. Two options are commonly used:
- TapHome Modbus-to-LAN converter — the native TapHome accessory, pre-configured for Modbus RTU bridging.
- Barani Easy MODBUS Starter Kit — Barani’s own RS-485 USB converter bundle for PC setup and debugging; a full TCP gateway (e.g. USR-TCP232 or similar) is still required for network use.
- Generic Modbus-RTU-to-TCP gateways — any standard RS-485-to-Ethernet converter (USR-TCP232-style, Moxa, Waveshare) works, provided it passes Modbus RTU frames transparently.
Follow standard RS-485 bus practice:
- Use twisted-pair cable for the A/B lines (ideally shielded).
- Terminate both ends of the bus with a 120 Ω resistor on cable runs longer than ~5 m.
- Keep the White (GND) wire tied to the same ground reference as the gateway.
- Up to 247 slaves and ~1200 m total bus length at 19 200 baud are supported by the RS-485 specification.
Feed the Brown wire from an external 5–24 V DC rail. The sensor draws about 2.6 mA at 12 V (combined speed + direction, 10 Hz sampling, RS-485 on), so a small DIN-rail supply is sufficient. Do not back-feed power from the TapHome data bus.
Configuration
Default Modbus parameters
The MeteoWind 2 ships with these factory defaults:
| Parameter | Default |
|---|---|
| Protocol | Modbus RTU |
| Baud rate | 19 200 bps |
| Data bits | 8 |
| Parity | None |
| Stop bits | 1 |
| Slave ID | 1 |
Protocol (RTU/ASCII), Slave ID, baud rate, parity and stop bits are all user-selectable via Holding register 5 using the Barani Easy MODBUS Viewer software. Any change to Holding register 5 must be persisted by writing 0x0008 to Holding register 11 (save command) — the device acknowledges by reading 0x0000 back. In most TapHome deployments the factory defaults are left unchanged.
Import parameters
When importing the template in TapHome, provide:
- IP Address — the IP of the RS-485-to-Ethernet gateway on the local network.
- Slave ID — Modbus slave address of the MeteoWind 2 (default
1).
Configure the gateway itself (port 502, RS-485 side at 19 200 / 8 / N / 1) according to the gateway manufacturer’s instructions before importing the template.
Assign a static IP address (or a DHCP reservation) to the RS-485-to-Ethernet gateway. If the gateway IP changes after a power cycle, TapHome will lose communication with the sensor.
Wind direction north-offset calibration
The MeteoWind 2 wind vane reports a raw direction in degrees relative to a mechanical reference mark on the housing. To make the readings align with true north, a one-time calibration is performed at install time by writing an offset to Holding register 74 (0x0049):
| |
Procedure:
- Measure the physical orientation error of the sensor against true north (e.g. with a compass app).
- Write the computed offset to Holding register 74 (function code
06). - Persist by writing
0x0008to Holding register 11 — the device acknowledges by reading0x0000.
This calibration is not exposed in the current TapHome template — use the Barani Easy MODBUS Viewer software or any Modbus master tool to perform it once, and the offset stays in the sensor’s non-volatile memory afterwards.
Device capabilities
The template exposes five read-only sensor variables, all polled over Modbus TCP every 1 second.
Wind speed monitoring
- Wind Speed — instantaneous wind speed in km/h, sampled at 10 Hz internally. Read from Input register 6 (offset 5, Uint16, raw × 0.036 = km/h).
- Average Wind Speed — wind speed averaged over the configured sampling period. Read from Input register 8 (offset 7, Uint16). Useful for smoothing noisy readings and for slow-reacting automations.
- Max Wind Speed — peak (gust) wind speed observed within the configured sampling period. Read from Input register 9 (offset 8, Uint16). Ideal for gust-based automation rules such as automatically retracting awnings, shades or pergolas above a safety threshold.
The averaging period used by the Average and Max variables is configured via Holding register 10 (seconds, 1-second increments). It defaults to a short window suitable for live monitoring and can be increased for calmer, longer-term averaging.
Wind direction monitoring
- Wind Direction — current wind direction in degrees (0–360°), sampled at 10 Hz. Read from Input register 7 (offset 6, Uint16, raw ÷ 100 = degrees). North alignment depends on the one-time Holding register 74 calibration — see Wind direction north-offset calibration above.
- Average Wind Direction — wind direction averaged over the same sampling period configured by Holding register 10. Read from Input register 10 (offset 9, Uint16).
Additional capabilities
The MeteoWind 2 also exposes a handful of configuration and maintenance registers over Modbus — the packed communication settings (Holding register 5), the sampling / averaging period (Holding register 10), the save-settings command (Holding register 11) and the wind-direction north-offset calibration (Holding register 74). The Heated MeteoWind 2 variant additionally provides an independent heater-control circuit (20 W @ 24 V or 5 W @ 12 V) that is wired separately and is not part of the Modbus register map. These configuration registers and the heater control can be exposed as service actions in a future template update.
Troubleshooting
No communication after import
- Verify the gateway is powered and reachable on the local network — ping its IP address from a device on the same subnet.
- Confirm the gateway’s RS-485 side is configured for 19 200 / 8 / N / 1 to match the MeteoWind 2 factory defaults.
- Check that the Slave ID in the TapHome import parameters matches the sensor’s ID (factory default is
1). - Ensure TapHome Core and the gateway share the same network / subnet, and that no firewall is blocking Modbus TCP (port 502) between them.
Intermittent readings or CRC errors
- Confirm the White (GND) wire is connected to the gateway ground — RS-485 requires a shared ground reference, not just the A/B differential pair.
- Verify bus termination — add a 120 Ω resistor at both ends of the bus on runs longer than ~5 m.
- Use twisted-pair (ideally shielded) cable for A/B and route it away from high-power or high-frequency cables.
Wind direction is offset from true north
The sensor’s zero direction depends on its physical mounting orientation. Perform the one-time wind-direction north-offset calibration (see Configuration section) to align the readings with true north. Without calibration, the direction values are still consistent and usable for relative changes, but the absolute heading will be wrong.
Heated MeteoWind 2 heater not working
The heater circuit on the Heated MeteoWind 2 variant is wired independently of the RS-485 data bus and is not controlled through this TapHome template. Verify the heater wiring and heater power supply (20 W @ 24 V DC or 5 W @ 12 V DC) against the Heated MeteoWind 2 wiring notes in the Barani FAQ.
